GVI Security GV-NC-201VAH Specifications

GV-NC-201VAH

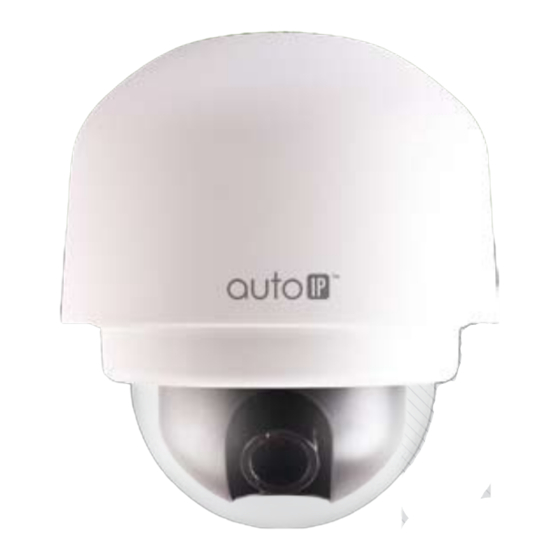

1.3 Megapixel, Outdoor, Auto Focus Dome Camera
Summary
The autoIP™ GV-NC-201VAH network camera provides high quality, 1.3 megapixel resolution video in
the most demanding light conditions. High video quality is achieved by coupling a 1/3" CCD Ex-View-
HAD progressive scan image sensor with an IR cut filter and Wide Dynamic Range capability. H.264
compression retains the high video quality at a low data rate. The anti-vandal housing with IP66 rating
provides a rugged package for both indoor and outdoor applications. Power over Ethernet (PoE),
and auto focus lens reduces installation time and costs. Pre-installed to its outdoor housing, GV-NC-
201VAH camera allows surveillance at extreme temperatures with the attached heater & fan. The
camera is compatible with autoNVR™, razberi™, and the user-friendly autoIP™ software (and several
3rd party VMS providers).
Features
• Resolution: 1.3MP (1280x960)
• 1/3" Ex-View-HAD Progressive Scan CCD
• F1.4 / f=3.3 ~ 12mm Auto-focus Lens
• Multiple Codec (H.264, MPEG-4, MJPEG)
• Simultaneous Dual Codec Support
• Extended Dynamic Range
• True Day/Night with IR Cut Filter
• 3D Noise Reduction
• Audio (Bi-directional)
• Privacy Masks
Autofocus
The function can be set to automatically focus
on specified areas, providing faster and correctly
focused images.
Megapixel
Megapixel resolution provides a level of detail
that is not possible with analog cameras.
GVI Security | Toll Free: 888-595-2288 | Fax: 972-245-7333
This product specifications and manual are also available in pdf format at www.gviss.com
The information is subject to change without notice - v7.14.11
• Flip, Mirror, Rotate Functions
• 3 Axis Installation
• Micro SD Card Support
• Analog Output
• IP66 Rated
• AC24V, DC12V
• Power over Ethernet (PoE) Support
• Heater and Fan
• Extreme Operating Temperatures: -40°C ~ 50°C
• 3 Year Warranty
D1 (720x480)
1.3 Megapixel
(1280x960)
