GVI Security GV-VD7305 Specifications

GV-VD7305

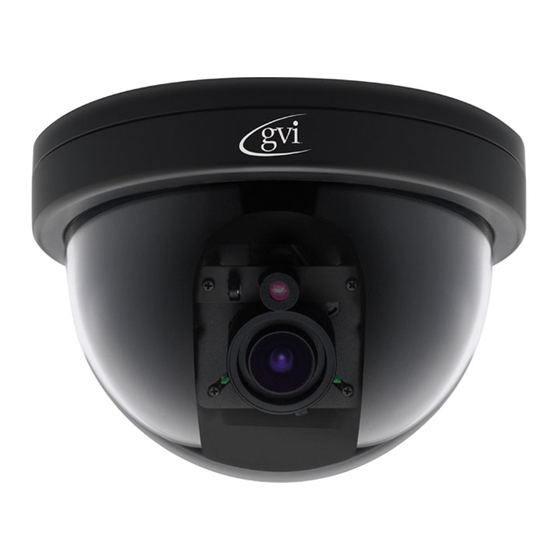

1/3" High Resolution, Day/Night, Vari-focal Color Dome Camera
Summary
The GV-VD7305 Vari-focal color dome camera offers crisp clear images and is designed for interior
surveillance. With a 1/3" interline color IT Super HAD CCD and DSP (Digital Signal Processing)
function, the integrator can count on consistent true and clear images.
The GV-VD7305 has a Day/Night function with an IR Cut Filter that comes standard with 550TV lines
(color) of horizontal resolution. When selecting a high quality day/night, color indoor dome with a Vari-
focal 2.9 ~ 10mm auto iris lens, choose the GV-VD7305.
Features
• 1/3" IT Super HAD CCD
• 550TV Lines (Color) / 580TV Lines (B/W) Resolution
• Minimum Scene Illumination: 0.04 Lux @ 15IRE (F1.2)
• 2.9 ~ 10mm DC Auto Iris Lens
Day/Night Function
The Day/Night function automatically switches to
color mode during the day and to black and white
mode during the night depending on the level of
illumination which makes it ideally suitable for 24/7
surveillance.
550TVL Resolution
GV-VD7305 uses IT Super HAD CCD which allows
high frequency & horizontal correction signals. By
using Digital Signal Processing, the camera provides
crisp clear, high resolution images.

Recommended Accessories

GV-TRAN-24-40LED, 24VAC, 40VA, Class II
plug in transformer
GVI Security | Toll Free: 888-595-2288 | Fax: 972-245-7333
This product specifications and manual are also available in pdf format at www.gviss.com
The information is subject to change without notice - v5.12.10
• Filter Switching Time: 2-3 Sec / 4-5 Sec, Selectable
• CDS Sensor
• 12VDC / AC24V (60Hz)
Day
Standard Resolution
Night
High Resolution
