Maruyama MC2600RS Owner's/Operator's Manual

Multi-cutter
Hide thumbs Also See for MC2600RS:
Table of Contents

Advertisement

Quick Links

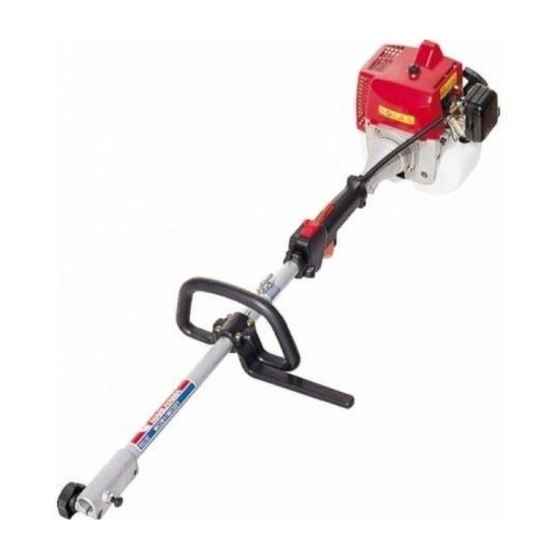

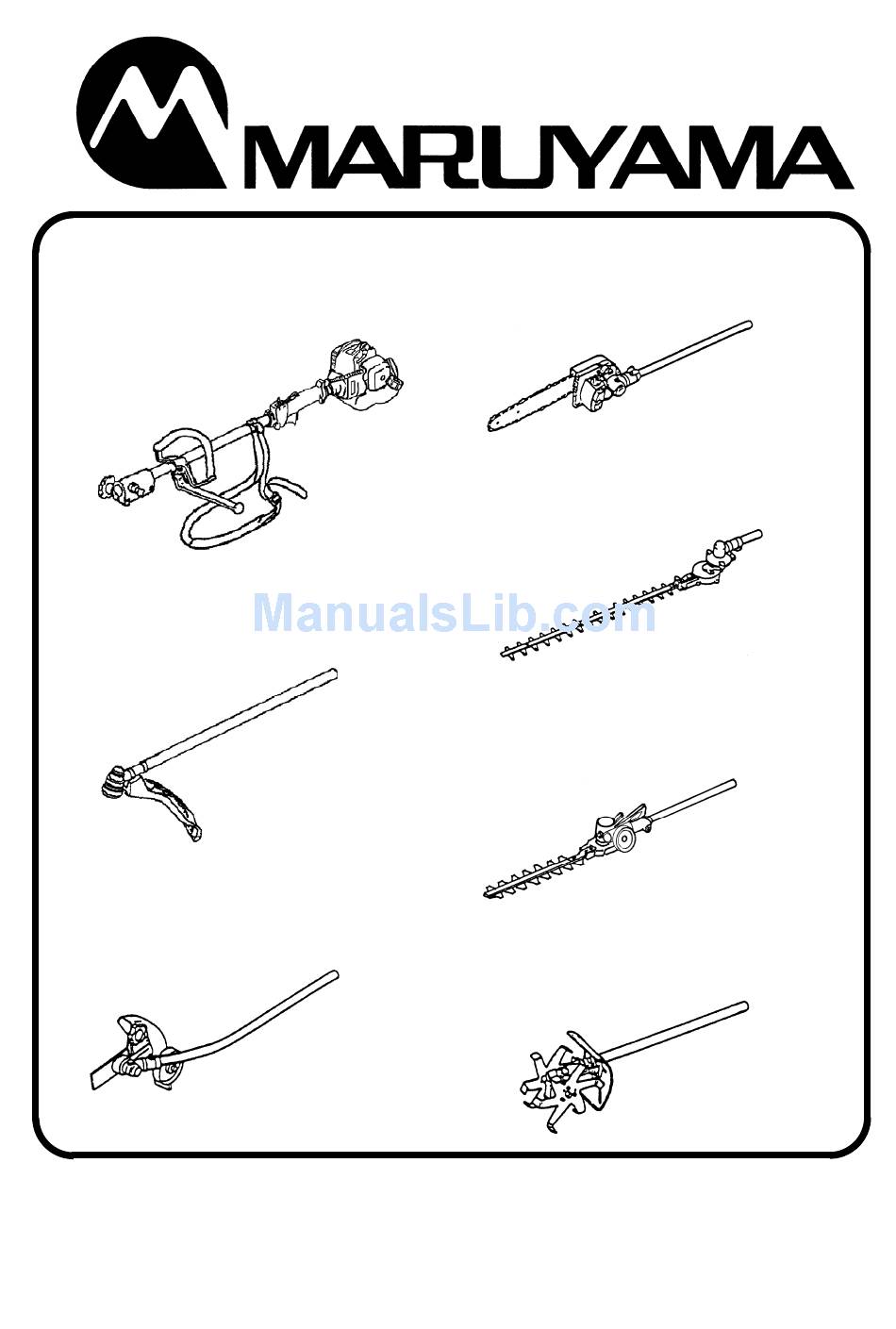

MC2600RS
(Multi-Cutter Power Unit)
MC-S
(String Trimmer Attachment)
MC-E
(Edger Attachment)
Owner's/Operator's Manual
Completely read and understand this manual before using this product.
MC-PS
(Pruner Attachment)
MC-HT
(Hedge Trimmer Attachment)
MC-HTS
(Hedge Trimmer Attachment)
MC-T
(Cultivator Attachment)
- 0 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC2600RS and is the answer not in the manual?

Questions and answers

Related Manuals for Maruyama MC2600RS

Summary of Contents for Maruyama MC2600RS

  • Page 1 MC-PS MC2600RS (Pruner Attachment) (Multi-Cutter Power Unit) MC-HT (Hedge Trimmer Attachment) MC-S (String Trimmer Attachment) MC-HTS (Hedge Trimmer Attachment) MC-E (Edger Attachment) MC-T (Cultivator Attachment) Owner’s/Operator’s Manual Completely read and understand this manual before using this product. - 0 -...

  • Page 2: Table Of Contents

    Multi-cutter. It is essential that any operator of this Multi-cutter reads and understands the contents this manual before using the Multi-cutter. For additional assistance, contact any local authorized MARUYAMA dealer. Contents Page Foreword ……………………………………………………………………………………………………...

  • Page 3: Safety Instructions

    4. Make sure the attached tool does not move at engine idle speed. Refer to Idle Speed Adjustment, page 15. 5. Inspect the tool attachment and replace any parts that are cracked, chipped or damaged before using the Multi-cutter. 6. Never use a tool attachment or replacement parts that are not approved by MARUYAMA. - 2 -...

  • Page 4: Fuel Safety

    8. If running problems or excessive vibration occur, stop immediately and inspect the unit for the cause. If the cause cannot be determined or is beyond your ability to correct, return the Multi-cutter to your servicing MARUYAMA dealer for repair. Fuel safety 1.

  • Page 5: Safety And Instruction Decals

    MARUYAMA. Safety and Instruction Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any that are damaged or lost. MC2600RS (Multi-Cutter Power Unit) ON ENGINE ON ENGINE N452 (Part No.
  • Page 6 MC-HTS (Hedge Trimmer Attachment) ON GEARCASE (Part No. 407349) ON SHAFT ON SHAFT (Part No. 221501) (Part No. 217879) MC-PS (Pruner Attachment) ON SHAFT (Part No. 221501) ON SHAFT (Part No. 221502) ON SHAFT (Part No. 219937) MC-T (Cultivator Attachment) ON SHAFT (Part No.

  • Page 7: Product Description

    1. Shaft connector Product Description 2. Loop Handle 3. Shaft Assembly MC2600RS 4. Attachment Ring for Shoulder Hanging Strap (Multi-Cutter Power Unit) 5. Shaft Grip 6. Clutch Drum Housing 7. Engine 8. Air Filter 9. Fuel Tank 10. Throttle Cable and Stop Switch Wires 11.

  • Page 8: Assembly

    Assembly Loop Handle Screw (4) Loop Handle Installation 1. Place the loop handle and the bottom clamp on the shaft approximately 28cm(11 inches) from the end of the stop switch/ throttle trigger assembly. 2. Install the four screws and nuts. Tighten the screws evenly. 3.
  • Page 9 Brushcutter Blade  WARNING POTENTIAL HAZARD ・If the Brushcutter blade is not adequately tightened, it can come loose from the Brushcutter during use. WHAT CAN HAPPEN ・This may cause damage to property or personal injury. HOW TO AVOID THE HAZARD ・Make sure the Brushcutter blade is securely fastened to the attaching shaft in the gearcase.

  • Page 10: Mc-E(Edger Attachment)

    MC-E(Edger Attachment) Installing Guard  WARNING Lock Washer POTENTIAL HAZARD ・Foreign objects can be thrown by Edger. Guard Hex Nut Guard Stud WHAT CAN HAPPEN Plate ・Contact with thrown objects can cause personal injury. HOW TO AVOID THE HAZARD Flat Washer ・Never operate the Edger without the blade guard.

  • Page 11: Mc-Hts(Hedge Trimmer Attachment)

    MC-HTS(Hedge Trimmer Attachment) Installing Shaft and Gearcase Attach the driveshaft tube assembly to the Hedge Trimmer gearcase assembly. Note: Carefully inspect both ends of the drive shaft protruding from the drive shaft tube. The squared end of the drive Squared shaft positions toward the connector of the power unit.

  • Page 12: Mc-T(Cultivator Attachment)

    5. Install the sprocket cover onto the two bar studs. Install the bar Sprocket Cover stud nuts, but leave the nuts finger-tight. Chain Travel 6. Rotate the chain tensioner screw until all slack is removed Direction between the chain and the bottom of the guide bar, but loose enough to allow you to pull the chain around the guide bar by Bar Stud Nuts hand.

  • Page 13: Connecting The Tool Attachment To The Power Unit

    Connecting the Tool Attachment to the Power Unit Tube First, loosen the clamping knob so shaft of the tool attachment Coupler can be inserted into the tube coupler. Pull the detent knob Clamping Knob outward and gently rotate attachment shaft back and forth while inserting to be sure the driveshafts completely in place.

  • Page 14: Mixing Gasoline And Oil

    3. Always open the fuel tank cap slowly to release any possible pressure inside the tank. 4. Do not overfill the fuel tank. Stop filling 10mm from the top of the tank. 3m (10ft.) Minimum 5. Tighten the fuel tank cap carefully but firmly after refilling. 6.

  • Page 15: Starting And Stopping

    Fuel Mixture Gasoline two-cycle oil The fuel: oil ratio is 25 parts gasoline to 1 part oil or 25:1. 1 litre 40 ml /cc 2 litre 80 ml /cc Fuel Mixture Chart 25:1 5 litre 200 ml /cc Mixing Instructions IMPORTANT: Never mix gasoline and oil directly in the Multi-cutter fuel tank.

  • Page 16: Idle Speed Adjustment

    3. If the engine fails to start after three to four pulls, follow the instructions in the Cold Starting Procedure section above. If the engine fails to start after you follow the above procedures, contact an authorized MARUYAMA dealer. To Stop the Engine 1.

  • Page 17: Operation

    If idle speed adjustment is necessary, and after adjustment the cutting attachment rotates or the engine stalls, stop using the Multi-cutter immediately! Contact your local authorized MARUYAMA Dealer for assistance and servicing. Operation MC-S(Multi-Cutter with String Trimmer Attachment)  WARNING POTENTIAL HAZARD ・Foreign objects can be thrown by the Multi-Cutter.
  • Page 18 3. The Trimmer weight should be evenly distributed between the arms. The trimmer head should be near and parallel to the ground. 4. Accelerate and hold the engine at cutting speed before entering the material to be cut. 5. Always release the throttle trigger and allow the engine to return to idle speed when not cutting. 6.
  • Page 19 Trimming Hold the bottom of the trimmer head about 5-10cm above the ground and at an angle. Allow only the tip of the line to make contact. 5-10cm above Ground Scaling To remove unwanted vegetation, hold the trimmer head about 5-10cm above the ground and at an angle. Allow the tip of the line to strike the ground cutting the vegetation off at the surface.

  • Page 20: Mc-E(Multi-Cutter With Edger Attachment)

    2. Carefully check the condition of the blades before and after operation. 3. Sharpen dull blades. Replace any blade that is worn, cracked or damaged. 4. If a blade produces eccentric rotation or vibration, replace the blade and the boss adapter with MARUYAMA genuine parts.

  • Page 21: Mc-Ht/Mc-Hts(Multi-Cutter With Hedge Trimmer Attachment)

     CAUTION ・ Always wear gloves and protective clothing when operating the Multi-Cutter with Edger Attachment. ・ If the Edger blade becomes jammed, stop the engine immediately. ・ Make certain all moving parts have stopped and disconnect the spark plug before inspecting the equipment for damage.
  • Page 22 6. Always release the throttle trigger and allow the engine to return to speed when not cutting. 7. Stop the engine when moving between work sites. ・ If the cutting blades becomes jammed, stop the engine immediately. ・ Make certain all moving parts have stopped and disconnect the spark plug before inspecting the equipment for damage.

  • Page 23: Mc-Ps(Multi-Cutter With Pruner Attachment)

    MC-PS(Multi-Cutter with Pruner Attachment)  WARNING POTENTIAL HAZARD ・The Pruner can conduct electricity. WHAT CAN HAPPEN ・Contact with live electrical wires or circuits can cause serious injury or death. HOW TO AVOID THE HAZARD ・Never use the Pruner Attachment around electrical lines, circuits or components. ...

  • Page 24: Mc-T(Multi-Cutter With Cultivator Attachment)

    MC-T(Multi-Cutter with Cultivator Attachment)  CAUTION ・Read the Safety instructions beginning on page 2 concerning proper use of the Multi-Cutter. Operating Position Before using the Multi-Cutter with Cultivator Attachment, check the following: 1. The unit may be on operator’s right side. The operator’s right hand should be holding the shaft grip, with his or her fingers on the throttle trigger.

  • Page 25: Maintenance

    Maintenance Air Filter Maintenance Interval ・The air filter should be cleaned daily, or more often when working in extremely dusty conditions. ・Replace after every 100 hours of operation. Air Filter Cleaning 1. Remove the foam element. 2. Clean the foam element with warm, soapy water. Let the Foam Element element dry completely.

  • Page 26: Cylinder Cooling Fins

    Cylinder Cooling Fins Maintenance Interval ・The cylinder cooling fins should be cleaned after every 25 hours of operation, or once a week, whichever comes first. ・ Air must flow freely around and through the cylinder cooling fins to prevent engine overheating. Leaves, grass, dirt and debris buildup Swivel Ring on the fins will increase the operating temperature of the engine, which can reduce engine performance and shorten engine life.

  • Page 27: Spark Arrester

    Spark Arrester  WARNING POTENTIAL HAZARD ・Muffler surface becomes hot when Trimmer/Brushcutter is in operation and remains hot for sometime after the engine is shut off. WHAT CAN HAPPEN ・Contact with hot muffler surface could cause a burn. HOW TO AVOID THE HAZARD ・Make sure the muffler is cool before inspecting and cleaning the spark arrester.

  • Page 28: Mc-E(Edger Attachment)

    MC-E(Edger Attachment) Flexible Drive Shaft Maintenance Interval The Edger Attachment uses a flexible drive shaft inside the drive shaft tube. The flexible drive shaft should be lubricated after each 30 hours of use. Gearcase Flexible Drive Shaft Lubrication 1. Loosen the two screws holding the gearcase to the drive shaft tube Flexible Shaft and carefully remove the gearcase from the drive shaft tube.

  • Page 29: Mc-Ht/Mc-Hts(Multi-Cutter With Hedge Trimmer Attachment)

    MC-HT/MC-HTS(Hedge Trimmer Attachment) Adjusting Cutting Blades  CAUTION ・Do not touch the sharpened edges of the cutting blades. The cutting blades are extremely sharp and dangerous at all times. Maintenance Interval Before operating the Multi-Cutter with Hedge Trimmer Attachment it is necessary to check the adjustment of the cutting blades.

  • Page 30: Mc-T(Cultivator Attachment)

    ・Always turn off your Multi-Cutter before you clean or perform any maintenance on it. The MARUYAMA Multi-Cutter will provide maximum performance for many, many hours if it is maintained properly. Good maintenance includes regular checking of all fasteners for correct tightness, and cleaning the entire machine.

  • Page 31: Troubleshooting

    ・Throttle wire has come loose ・Tighten throttle wire Engine lacks power or stalls when cutting ・Dirty air filter ・Clean or replace air filter If further assistance is required, contact your local authorized MARUYAMA service dealer. Specifications MC2600RS With MC-S MC-E MC-HT...
  • Page 32 Manufacturing: Maruyama Mfg. Co., Inc. 4-15 Uchi-kanda 3-Chome, Chiyoda-ku Tokyo 101-0047 Japan Tel. 03-3252-2281 P/N.231082-00 GB 0908 TAP/DP - 31 -...
