Summary of Contents for Maruyama AHT2600D-RS
-

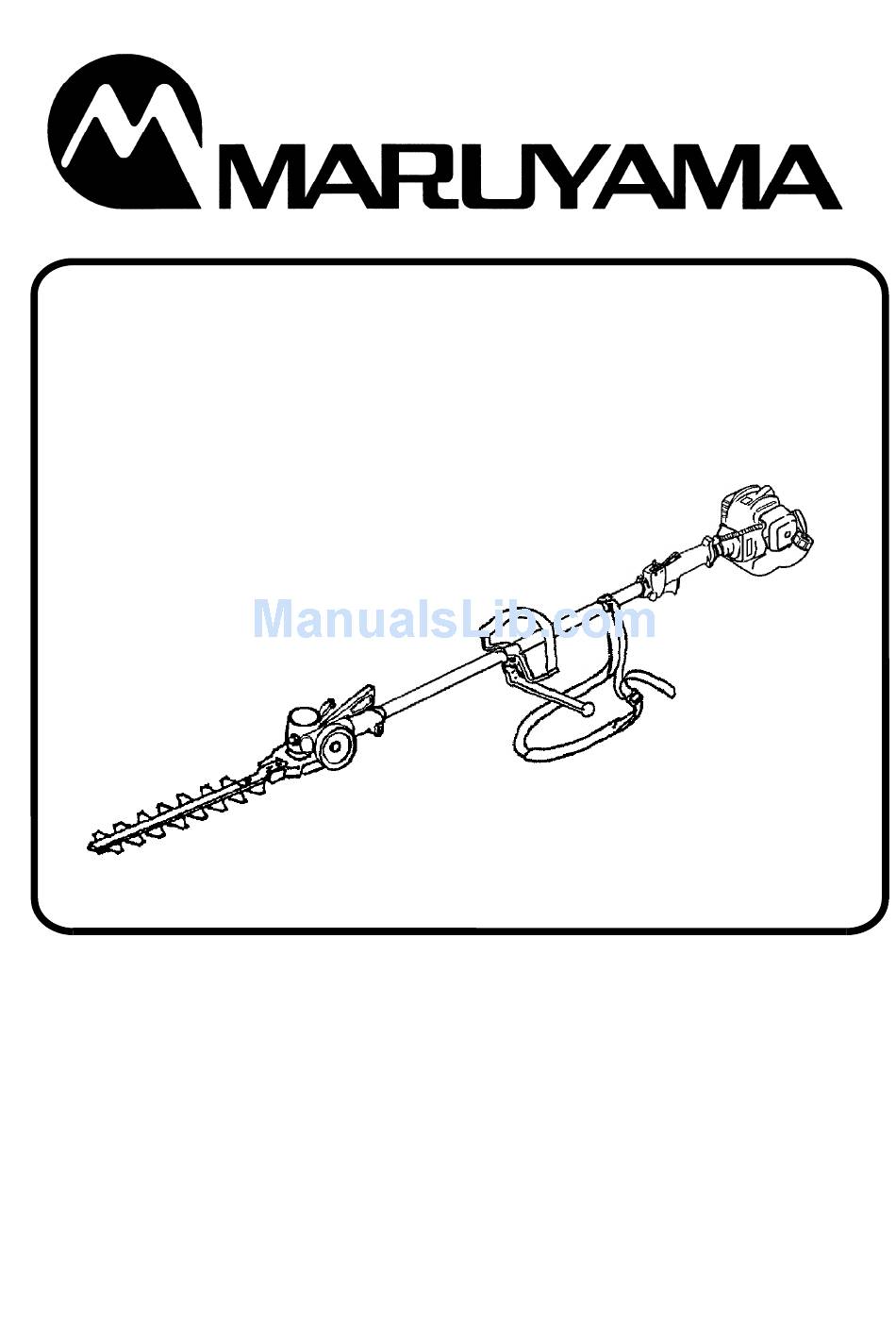

Page 1: Hedge Trimmer
Hedge Trimmer AHT2600D-RS Owner’s/Operator’s Manual Completely read and understand this manual before using this product. - 0 -... -
Page 2: Table Of Contents
Hedge Trimmer. It is essential that any operator of this Hedge Trimmer product reads and understands the contents of this manual before using the Hedge Trimmer. Failure to comply with the instructions in this manual may result in serious injury or death. For additional assistance, contact any local MARUYAMA dealer. Contents Page Foreword ………………………………………………………………………………………………... -
Page 3: Safety Instructions
Safety Decals ON SHAFT (Part No. 221501) ON ANGLE DRIVE ON SHAFT (Part No. 407349) N452 (Part No. 217879) ON ENGINE ON ENGINE (Part No. 283375) (Part No. 267433) Safety Decals are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost. -
Page 4: Fuel Safety
5. Inspect the blades and replace any parts that are cracked, chipped or damaged before using the Hedge Trimmer. 6. Never use a blades or replacement parts that are not approved by MARUYAMA. 7. Maintain the Hedge Trimmer according to the recommended maintenance intervals and procedures in the Maintenance section beginning on page 11. -
Page 5: Symbol Explanation
Symbol explanation Indicates Warning, Danger, Caution. Read and understand this Owner’s/Operator’s Manual. ・Wear head protection, where there is a risk of falling objects. ・Wear eye protection, while operating the Hedge Trimmer. ・Wear ear protection, while operating the Hedge Trimmer. Do not put hands and feet near or under moving blades. Assembly Assembling Gearcase and Drive Shaft Assembly Shaft Assembly... -
Page 6: Connecting Throttle Cable And Stop Switch Wires
Connecting Throttle Cable and Stop Switch Wires 1. Press up the bottom of the swivel ring to remove the swivel ring. Note: Take care of falling the swivel ring in the engine Hook when remove the swivel ring. Swivel Ring 2. -
Page 7: Before Operation
Before Operation Engine Oil and Fuel 1. Mix and pour fuel outdoors and where there are no sparks or flames. 2. Always shut off the engine before refueling. Never remove the Hedge Trimmer fuel tank cap while the engine is running or immediately after stopping the engine. ... -
Page 8: Mixing Gasoline And Oil
IMPORTANT: Do not use two-cycle oil intended for water cooled outboard motors. This type of two-cycle engine oil does not have the additives for air-cooled two-cycle engines and can cause engine damage. Do not use automotive motor oil. This type of oil does not have the proper additives for air-cooled two-cycle engines and can cause engine damage. -
Page 9: Starting And Stopping
3. If the engine fails to start after three to four pulls, follow the instructions in the Cold Starting Procedure section above. If the engine fails to start after you follow the above procedures, contact an authorized MARUYAMA dealer. START(ON) -
Page 10: Idle Speed Adjustment
・ Turn the screw out (counterclockwise) to decrease the engine idle speed. If idle speed adjustment is necessary, and after adjustment the blades moves or the engine stalls, stop using the Hedge Trimmer immediately! Contact your local authorized MARUYAMA Dealer for assistance and servicing. Operating Hedge Trimmer ... -
Page 11: Adjusting The Angle Of The Blades
5. Make sure the blades are moving (at least half throttle ) before actual cutting begins. The Hedge Trimmer performs best at full throttle. 6. Always release the throttle trigger and allow the engine to return to speed when not cutting. 7. -
Page 12: Maintenance
Folding procedure The unit is able to fold and shorten. ① First of all, stop the engine, then set the blade cover. ② Turn the clamp knob counter clockwise until the clamp knob stops. Folding the unit is not possible without lete loosen the clamp knob. -
Page 13: Cylinder Cooling Fins
Cylinder Cooling Fins Maintenance Interval ・The cylinder cooling fins should be cleaned after every 25 hours of operation, or once a week, whichever comes first. ・ Air must flow freely around and through the cylinder cooling fins to prevent engine overheating. Leaves, grass, dirt and debris buildup Swivel Ring on the fins will increase the operating temperature of the engine, which can reduce engine performance and shorten engine life. -
Page 14: Spark Arrester
3. Clean the electrodes with a stiff brush. 0,6 - 0,7 mm 4. Adjust the electrode air gap to 0,6-0,7 mm. 5. Replace the spark plug if it is oil-fouled, damaged, or if the electrodes are worn down. 6. Do not over tighten the spark plug when installing. The tightening torque is 10.7-16.6 N·m. -
Page 15: General Cleaning And Tightening
・Always turn off your Hedge Trimmer before you clean or perform any maintenance on it. General Cleaning and Tightening The MARUYAMA Hedge Trimmer will provide maximum performance for many, many hours if it is maintained properly. Good maintenance includes regular checking of all fasteners for correct tightness, and cleaning the entire machine. -
Page 16: Storage
・Throttle wire has come loose ・Tighten throttle wire Engine lacks power or ・Dirty air filter ・Clean or replace air filter stalls when cutting If further assistance is required, contact your local MARUYAMA service dealer. Specifications Model AHT2600D-RS Engine Displacement, cm 25,4...
