MC2600RS
(Multi-Cutter Power Unit)
MC-S
(Straight Shaft Attachment)
MC-E
(Edger Attachment)
MC-P
(Pruner Attachment)
Owner's/ Operator's Manual
Completely read and understand this manual before using this product.
Multi-Cutter
MC-HTS
(Hedge Trimmer Attachment)
MC-HT
(Hedge Trimmer Attachment)
MC-T
(Cultivator Attachment)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC2600RS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maruyama MC2600RS

Summary of Contents for Maruyama MC2600RS

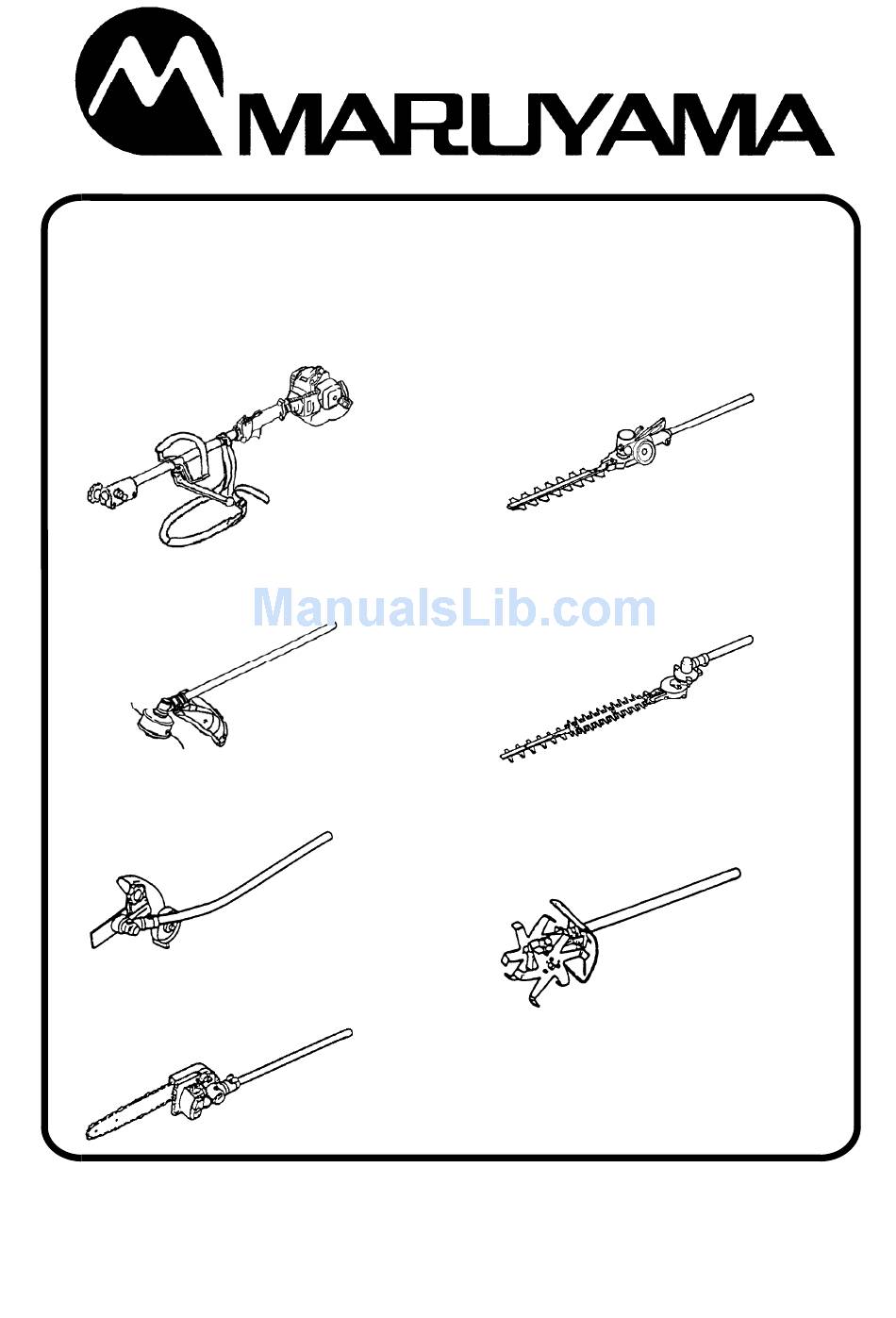

  • Page 1 Multi-Cutter MC-HTS MC2600RS (Hedge Trimmer Attachment) (Multi-Cutter Power Unit) MC-HT MC-S (Hedge Trimmer Attachment) (Straight Shaft Attachment) MC-E MC-T (Edger Attachment) (Cultivator Attachment) MC-P (Pruner Attachment) Owner’s/ Operator’s Manual Completely read and understand this manual before using this product.

  • Page 2: Table Of Contents

    Multi-cutter. It is essential that any operator of this Multi-cutter reads and understands the contents this manual before using the Multi-cutter. For additional assistance, contact any local authorized MARUYAMA dealer. Contents Foreword ………………………………………………………………………………………………………...

  • Page 3: Product Description

    1. Shaft connector Product Description 2. Loop Handle 3. Shaft Assembly MC2600RS 4. Attachment Ring for Shoulder Strap (Multi-Cutter Power Unit) 5. Shaft Grip 6. Clutch Drum Housing 7. Engine 8. Air Filter 9. Fuel Tank 10. Throttle Cable and Stop Switch Wires 11.

  • Page 4: Safety Instructions

    5. Inspect the tool attachment and replace any parts that are cracked, chipped or damaged before using the Multi-cutter. 6. Never use a tool attachment or replacement parts that are not approved by MARUYAMA. 7. Maintain the Multi-cutter according to the recommended maintenance intervals and procedures in the Maintenance section beginning on page 25.

  • Page 5: Fuel Safety

    9. Keep a firm footing and balance. Do not overreach. 10. Use the right tool for the job. Do not use the Multi-cutter for any job that is not recommended by MARUYAMA. ― 4 ―...

  • Page 6: Safety And Instruction Decals

    Safety and Instruction Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any that are damaged or lost. MC2600RS (Power Unit) Approved EC emission ON ENGINE ON ENGINE (Part No.

  • Page 7: Symbol Explanation

    MC-HTS (Hedge Trimmer Attachment) ON SHAFT ON GEARCASE ON SHAFT (Part No. 223188) (Part No. 225384) (Part No. 407349) MC-PS (Pruner Attachment) ON SHAFT ON SHAFT (Part No. 219937) (Part No. 223188) MC-T (Cultivator Attachment) ON SHAFT (Part No. 223188) Symbol explanation Indicates Warning, Danger, Caution.
  • Page 8 Breathing exhaust fumes cause death. Never start or run the engine inside a close room or building. Hot Surface Warning: Contact may cause burns. During use and some time after stopping the engine, the engine and the gearcase are very hot. Do not touch the hot surface of the unit such as cylinder, muffler and gearcase.

  • Page 9: Assembly

    Assembly Engine Assembling Engine and Drive Shaft Assembly Screw (4) Attach the clutch drum housing to the engine using the four screws supplied with the unit. Clutch drum housing Installing Loop Handle L oop handle must be assembled gearcase side from the arrow (A). 1.

  • Page 10: Mc-S(Straight Shaft Attachment)

    7. Operate the throttle trigger a few times to make sure that it works correctly. 8. Plug the stop switch wires into the matching connectors from the engine. Note that wire polarity is not important. Stop Switch Wires Clamp 9. Hold the stop switch wires with the clamp. MC-S (Straight Shaft Attachment) Installing Guard Plate...
  • Page 11 Installing Trimmer Head WARNING POTENTIAL HAZARD ・If the cutting attachment is not adequately tightened, it can come loose from the Straight Shaft Attachment during use. WHAT CAN HAPPEN ・This may cause damage to property or personal injury. HOW TO AVOID THE HAZARD ・Make sure the cutting attachment head is securely fastened to the attaching shaft in the gearcase.

  • Page 12: Mc-E(Edger Attachment)

    2. Install the brushcutter blade onto the boss adapter, then reinstall the clamping washer, stabilizer and blade bolt. 3. Align the hole in the boss adapter with the guide slot in the gearcase. 4. Insert the 3mm hex wrench into the hole in the boss adapter and the guide slot in the gearcase to lock the attaching shaft.

  • Page 13: Mc-Ps(Pruner Attachment)

    5. Tighten the blade bolt to 11.3 Nm. 6. Remove the 3mm hex wrench from the boss adapter and gearcase. MC-PS (Pruner Attachment) Installing Shaft and Gearcase Attach the driveshaft tube assembly to the gearcase assembly. NOTE: Carefully inspect both ends of the drive- shaft protruding from the driveshaft tube.

  • Page 14: Mc-Hts(Hedge Trimmer Attachment)

    MC-HTS (Hedge Trimmer Attachment) Installing Shaft and Gearcase Attach the driveshaft tube assembly to the gearcase assembly. NOTE: Carefully inspect both ends of the drive- shaft protruding from the driveshaft tube. The squared end of the driveshaft positions toward the connector of the power unit. The splined end of the driveshaft connects to the gearcase assembly.

  • Page 15: Connecting The Tool Attachment To The Power Unit

    Connecting the Tool Attachment to the Power Unit First, loosen the clamping knob so shaft of the tool attachment Tube Coupler can be inserted into the tube coupler. Pull the detent knob Clamping Knob outward and gently rotate attachment shaft back and forth while inserting to be sure the driveshafts completely in place.
  • Page 16 3. Always open the fuel tank cap slowly to release any possible pressure inside the tank. 4. Do not overfill the fuel tank. Stop filling 10mm from the top of the tank. Minimum 5. Tighten the fuel tank cap carefully but firmly after refilling. 6.

  • Page 17: Mixing Gasoline And Oil

    Mixing Gasoline and Oil IMPORTANT: The engine used on this Multi-cutter is of a two-cycle design. The internal moving parts of the engine, i.e., crankshaft bearings, piston pin bearings and piston to cylinder wall contact surfaces, require oil mixed with the gasoline for lubrication. Failure to add oil to the gasoline or failure to mix oil with the gasoline at the appropriate ratio will cause major engine damage which will void your warranty.

  • Page 18: Idle Speed Adjustment

    3. If the engine fails to start after three to four pulls, follow the instructions in the Cold Starting Procedure section above. If the engine fails to start after you follow the above procedures, contact an authorized MARUYAMA dealer. To Stop the Engine 1.

  • Page 19: Operation

    ・ Turn the screw out (counterclockwise) to decrease the engine idle speed. If idle speed adjustment is necessary, and after adjustment the cutting attachment rotates or the engine stalls, stop using the Multi-cutter immediately! Contact your local authorized MARUYAMA Dealer for assistance and servicing. Operation MC-S (Straight Shaft Attachment)
  • Page 20 Shoulder 1. The unit should be on the operator’s right side. The operator’s right Hanging Strap hand should be holding the shaft grip, with his or her fingers on the throttle trigger. The right arm should be slightly bent. 2. The left hand should be holding the loop handle with the fingers and thumb fully enclosed around the grip.

  • Page 21: Cutting Blades

    Kick-back Zone the blade to kick back. Cutting Blades Direction of Swing 1. Use only the correct blade (MARUYAMA genuine part) approved for the application and model Brushcutter. 2. Carefully check the condition of the blades before and after operation.

  • Page 22: Mc-E(Edger Attachment)

    4. If a blade produces eccentric rotation or vibration, replace the blade and the boss adapter with genuine MARUYAMA parts. MC-E (Edger Attachment) WARNING POTENTIAL HAZARD ・Foreign objects can be thrown by Edger Attachment. WHAT CAN HAPPEN ・Contact with thrown objects can cause personal injury.

  • Page 23: Mc-Ps(Pruner Attachment)

    ・ If the Edger blade becomes jammed, stop the engine immediately. ・ Make certain all moving parts have stopped and disconnect the spark plug before inspecting the equipment for damage. ・ Never use a unit that has chipped, cracked or broken Edger blade or blade guard. Setting Depth of Cut Blade Guard IMPORTANT: Set the depth of cut before you start the...

  • Page 24: Mc-Ht/ Mc-Hts(Hedge Trimmer Attachment)

    4. The Pruner weight should be evenly distributed between the arms. 5. Always release the throttle trigger and allow the engine to return to idle speed when not cutting. 6. Stop the engine when moving between work sites. CAUTION ・ Always wear gloves and protective clothing when operating the Multi-Cutter with Pruner Attachment.

  • Page 25: Mc-T(Multi-Cutter With Cultivator Attachment)

    Adjusting the angle of the blades [MC-HTS] CAUTION • Do not touch the sharpened edges of the cutting blades. The cutting blades are extremely sharp and dangerous at all times. Always wear gloves to help protect your hands and fingers from injury.

  • Page 26: Maintenance

    3. Do not operate the unit in hard un-tilled soil or in rocky areas. 4. Do not operate the unit in areas with vines or tree roots. 5. Do not operate the unit in water. 6. Always release the throttle trigger and allow the engine to return to idle speed when not cultivating. 7.

  • Page 27: Fuel Filter

    Fuel Filter Maintenance Interval The fuel filter should be replaced after every 100 hours of operation. Fuel Filter Replacement The fuel filter is attached to the end of the fuel pick-up hose inside the tank. To replace the fuel filter: 1.

  • Page 28: Mc-E(Edger Attachment)

    Gearcase Lubrication Remove the cutting attachment and the boss adapter. Clean any dirt and debris from the area between the boss adapter and the gearcase. Remove the grease plug from the side of the gearcase. While rotating the attaching shaft, inject lithium-base bearing lube (P/N 211337) through the plug hole until the gearcase is full.

  • Page 29: Mc-Ht/Mc-Hts(Hedge Trimmer Attachment)

    MC-HT/MC-HTS (Hedge Trimmer Attachment) Adjusting Cutting Blades CAUTION ・Do not touch the sharpened edges of the cutting blades. The cutting blades are extremely sharp and dangerous at all times. Maintenance Interval Before operating the Multi-Cutter with Hedge Trimmer Attachment it is necessary to check the adjustment of the cutting blades.

  • Page 30: Mc-T(Cultivator Attachment)

    ・Always turn off your Multi-Cutter before you clean or perform any maintenance on it. The MARUYAMA Multi-Cutter will provide maximum performance for many, many hours if it is maintained properly. Good maintenance includes regular checking of all fasteners for correct tightness, and cleaning the entire machine.

  • Page 31: Troubleshooting

    ・Throttle wire has come loose ・Tighten throttle wire Engine lacks power or ・Dirty air filter ・Clean or replace air filter stalls when cutting If further assistance is required, contact your local authorized MARUYAMA service dealer. Specifications MC2600RS Engine displacement, cm 25,4 Idling speed, min...

  • Page 32: Ec Declaration Of Conformity

    Name and address of the european authorized representative: Obelis European Authorized Representative Center (O.E.A.R.C.) Boulevard Général Wahis, 53, B-1030 Brussels, Belgium Herewith declares that: MARUYAMA Multi-Cutter Any combination of Power unit and Attachment makes MARUYAMA Multi cutter. Serial No.: A000001∼M999999 Model Net installed power (kw/min Power Unit...
