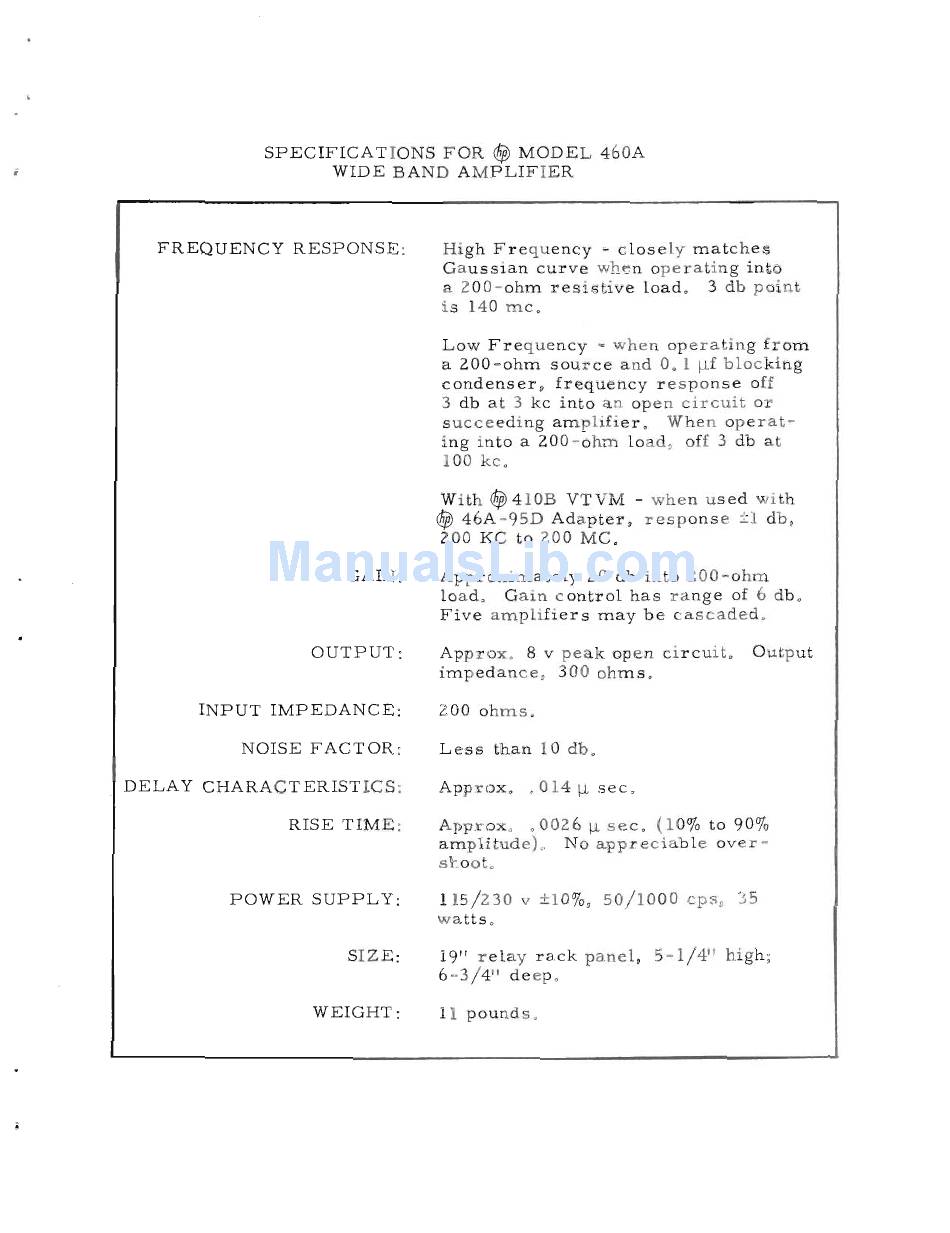

SPECIFICATIONS FOR
c§j)
MODEL 460A
WIDE BAND AMPLIFIER
FREQUENCY RESPONSE:
GAIN:
OUTPUT:
INPUT IMPEDANCE:
NOISE FACTOR:
DELAY CHARACT ERISTICS:
RISE TIME:
POWER SUPPLY:
SIZE:
WEIGHT:
High Frequency - closely matches
Gaussian curve when operating into
a lOO-ohm resistive load.
3 db point
is 140 mc.
Low Frequency - when operating from
a 200-ohm source and O. 1
~f
blocking
condenser. frequency response off
3 db at 3 kc into an open circuit or
succeeding amplifier.
When operat-
ing into a 200 -ohm load, off 3 db at
100 kc.
With
c§j)410B
VTVM - when used with
c§j)
46A -95D Adapter. response i:1 db.
ZOO KC to 200 MC.
Approximately ZO db into ZOO-ohm
load.
Gain control has range of 6 db.
Five amplIfiers may be cascaded.
Approx. 8 v peak open circuit.
Output
impedance, 300 ohms.
ZOO ohms.
Less than 10 db.
Approx. .0 14
~
sec.
Approx. . 00z6
~
sec. (10% to 90%
amplitude).
No appreciable over-
shoot.
115/Z30 v ±10%. 50/1000
CPSD
35
watts.
19" relay rack panel. 5-1/4" high;
6-3/4" deep.
11 pounds.
