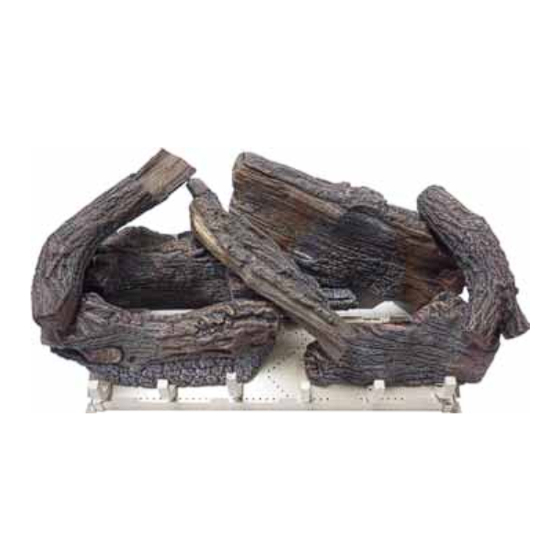

The White Mountain Log Collection
STACKED AGED OAK
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
WARNINGS
If the information in this manual is not followed exactly,
personal injury or loss of life.
and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
in your building.
partment.
installer, service agency or the gas supplier.
INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
vapors
Log sets comply with ANSI Z21.11.2 Unvented Heaters and
also comply with ANSI Z21.60 Decorative Vented Appliances
-
for Solid Fuel Burning Fireplaces. State or local codes may
Check your state or local codes.
WARNING: If not installed, operated and maintained in ac-
cordance with the manufacturer's instructions, this product
could expose you to substances in fuel or from fuel combus-
tion which can cause death or serious illness.
www.finesgas.com
LOG SET FOR UNVENTED
GAS LOG HEATER
OR
VENTED DECORATIVE APPLIANCE
MODELS
LS18SRAO-1
LS24SRAO-1
LS30SRAO-1
GAS-FIRED
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for White Mountain LS18SRAO-1
Summary of Contents for White Mountain LS18SRAO-1
-
Page 1: Installation Instructions
INSTALLATION INSTRUCTIONS AND OWNER'S MANUAL The White Mountain Log Collection LOG SET FOR UNVENTED GAS LOG HEATER STACKED AGED OAK VENTED DECORATIVE APPLIANCE MODELS LS18SRAO-1 LS24SRAO-1 LS30SRAO-1 GAS-FIRED INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference. -
Page 2: Table Of Contents
GENERAL INFORMATION ..................3 REQUIREMENTS FOR CANADA................4 LOG IDENTIFICATION ....................5 LOG PLACEMENT....................6-14 EMBER PLACEMENT - ALL BURNERS..............15 PLACEMENT OF GLOWING EMBERS LS18SRAO-1........16-17 PLACEMENT OF GLOWING EMBERS LS24SRAO-1........18-19 PLACEMENT OF GLOWING EMBERS LS30SRAO-1........20-21 PARTS LIST & PARTS VIEW.................22 MASTER PARTS DISTRIBUTOR LIST..............23 HOW TO ORDER REPAIR PARTS................23... -
Page 3: Important Installation Guidelines
IMPORTANT INSTALLATION GUIDELINES Proper Log Placement WARNING: Log placement is critical to proper burner performance. Logs must be correctly positioned onto the burner. The photos in this manual WARNING: show the proper pinned position for logs on this set. Owners need to other accessory not approved for use with this heater. -
Page 4: Requirements For Canada
REQUIREMENTS FOR CANADA This unit cannot GLASS DOORS CLOSED unit can only be installed as a VENTED application with these requirements. or near the appliance. IMPORTANT SAFETY INFORMATION eration. This unit complies with ANSI Z21.60 and CGA 2.26 Decorative Gas Appliances For Installation In Solid Fuel Burning Fireplaces. bonding agents. -
Page 5: Log Identification
LOG IDENTIFICATION 30583-0-0612 Page 5... -
Page 6: Log Placement
LOG PLACEMENT All Logs The positioning of the logs is critical to the safe and clean operation of this heater. Sooting and other problems may result if Refer to Figure 1 for the following warning. Warning: with this appliance may result in property damage or personal injury. Attention: Refer to Page 22 Parts List and Parts View to order logs for your appropriate model number. - Page 7 LOG PLACEMENT Place Back Ember Log (A) between the rear log support shelf and the main burner pan. The left side of the Back Ember Log will set on the venturi shield. TOP VIEW FRONT VIEW 30583-0-0612 Page 7...
- Page 8 LOG PLACEMENT Place the Back Right Log (B) so that it sets on Back Ember Log (A) and the main burner pan. The back of the Back Right Log will rest against the rear log support shelf. TOP VIEW FRONT VIEW Page 8 30583-0-0612...
- Page 9 LOG PLACEMENT Back Ember Log (A). TOP VIEW FRONT VIEW 30583-0-0612 Page 9...
- Page 10 LOG PLACEMENT Place the Front Left Log (D) onto the two front left pins on the burner pan. TOP VIEW FRONT VIEW Page 10 30583-0-0612...
- Page 11 LOG PLACEMENT Place the Front Right Log (E) onto the two front right pins on the burner pan. TOP VIEW FRONT VIEW 30583-0-0612 Page 11...
- Page 12 LOG PLACEMENT Place the Top Middle Log (F) into the right recess on the Back Left Log (C) and the left end of the Right Front Log (E). TOP VIEW FRONT VIEW Page 12 30583-0-0612...
- Page 13 LOG PLACEMENT Place the Top Left Log (G) into the left recess on the Back Left Log (C) and the recess on the Front Left Log (D). TOP VIEW FRONT VIEW 30583-0-0612 Page 13...
-
Page 14: Log Placement
LOG PLACEMENT Place the Top Right Log (H) into the recess on the Back Right Log (B) and right recess on the Front Right Log (E). TOP VIEW FRONT VIEW Page 14 30583-0-0612... -
Page 15: Ember Placement - All Burners
EMBER PLACEMENT - ALL BURNERS TOP VIEW FRONT VIEW 30583-0-0612 Page 15... -
Page 16: Placement Of Glowing Embers Ls18Srao-1
PLACEMENT OF GLOWING EMBERS LS18SRAO-1 Page 16 30583-0-0612... - Page 17 PLACEMENT OF GLOWING EMBERS LS18SRAO-1 Area for glowing embers. Do not cover any large rear ports with glowing embers. Do not cover any large front ports with glowing embers. 30583-0-0612 Page 17...
-
Page 18: Placement Of Glowing Embers Ls24Srao-1
PLACEMENT OF GLOWING EMBERS LS24SRAO-1 Page 18 30583-0-0612... - Page 19 PLACEMENT OF GLOWING EMBERS LS24SRAO-1 Area for glowing embers. Do not cover any large rear ports with glowing embers. Do not cover any large front ports with glowing embers. 30583-0-0612 Page 19...
-
Page 20: Placement Of Glowing Embers Ls30Srao-1
PLACEMENT OF GLOWING EMBERS LS30SRAO-1 Page 20 30583-0-0612... - Page 21 PLACEMENT OF GLOWING EMBERS LS30SRAO-1 Area for glowing embers. Do not cover any large rear ports with glowing embers. Do not cover any large front ports with glowing embers. 30583-0-0612 Page 21...
-
Page 22: Parts List & Parts View
PARTS LIST & PARTS VIEW Attention: part number and description of part coincide. STACKED REFRACTORY AGED OAK LOGS INDEX PART NO. DESCRIPTION LETTER LS18SRAO-1 R11426 R11425 R6080 R6081 FRONT LEFT LOG R6083 FRONT RIGHT LOG R11428 TOP MIDDLE LOG R11427... -
Page 23: Master Parts Distributor List
MASTER PARTS DISTRIBUTOR LIST nature of the problem with the unit. Please note: Master Parts Distributors are independent businesses that stock the most commonly ordered Original Equip- Dey Distributing 1401 Willow Lake Boulevard Phone: 651-490-9191 Toll Free: 800-397-1339 Website: www.deydistributing.com Parts: Heater, Hearth and Grills East Coast Energy Products Victor Division of F. - Page 24 Empire Comfort Systems Inc. info@empirecomfort.com. Comfort Systems www.empirecomfort.com Page 24 30583-0-0612...
