OPERATING INSTRUCTIONS Personal Computer CF-T5 series Model No. Contents Getting Started ..........2 Introduction ..........3 Read Me First ........9 Description of Parts ........11 First-time Operation Useful Information ........16 On-screen Manual ......17 Handling and Maintenance ........19 Expanding Memory ...21 Hard Disk Backup Function (Recover Pro) ......23 Hard Disk Data Erase Utility ........24...
Page 2: Introduction
Introduction Thank you for purchasing this Panasonic computer. For optimum performance and safety, please read these instruc- tions carefully. Terms and illustrations in these instructions Conditions that may result in minor or moderate injury. CAUTION Useful and helpful information. NOTE Enter : Press [Enter] key.
Page 3: Read Me First
If you want to get a copy of the original DoC of our products which relates to the R&TTE, please con- tact our web address: http://www.doc.panasonic.de Contact and Pursuant to at the directive 2004/108/EC, article 9(2) Panasonic Testing Centre Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, F.R. Germany Network connection.
Page 4 A replacement fuse cover can be purchased from your local Panasonic Dealer. IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.
Page 5 Important Safety Instructions When using your telephone equipment, basic safety pre- 3. Do not use the telephone to report a gas leak in the cautions should always be followed to reduce the risk of vicinity of the leak. fire, electric shock and injury to persons, including the fol- 4.
Page 6 Panasonic matter to enter inside. cannot be held responsible in any way for any damages Also, remodeling or disassembly may cause a fire.
Page 7 Use Only the Specified AC Adaptor With This Product Using an AC adaptor other than the one supplied (attached to your product or supplied by Panasonic) may result in a fire. Do Not Subject the AC Adaptor to Any Strong Impact Using the AC adaptor after a strong impact such as being dropped may result in electric shock, short circuit, or fire.
Page 8 CF-T5. Use of battery packs other than those manu- the temperature is 10 °C or below.) factured and supplied by Panasonic may present a safety If the temperature is low, the operating time is hazard (generation of heat, ignition or rupture).
Page 9: Description Of Parts
Description of Parts A :Function Key G :LCD/Touchscreen Reference Manual “Key Combinations” Reference Manual “Using the Touchscreen” B :Keyboard H :Speaker C :LED Indicator I : LAN Port If the Mini Port Replicator is connected to the computer, : Caps lock connect the LAN cable to the LAN port on the Mini Port : Numeric key (NumLk) Replicator.
Page 10 Description of Parts EXT. A :DC-IN Jack G :Microphone Jack B :External Display Port A condenser microphone can be used. If other types If the Mini Port Replicator is connected to the com- of microphones are used, audio input may not be pos- puter, connect the external display to the external dis- sible, or malfunctions may occur as a result.
Page 11: First-Time Operation
First-time Operation Preparation A Check and identify the supplied accessories. If you do not find the described accessories, contact your technical support office. AC Adaptor AC Cord Battery Pack Model No: CF-AA1623A Model No: CF-VZSU37 Modem Telephone Soft Cloth Stylus Cable Reference Manual “Using the Touchscreen”...
Page 12: Turn On The Computer
First-time Operation Connect your computer to a power outlet. The battery charging starts automatically. CAUTION Do not disconnect the AC adaptor and do not switch the wireless switch to on until the first-time operation procedure is completed. When using the computer for the first time, do not connect any peripheral device except the battery pack and AC adaptor.
Page 13 <For MUI OS model> Install Adobe Reader NOTE Install Adobe Reader to read the Important Tips and the Reference Manual. Click [start] - [Run], input the following, then click [OK]. English: [c:\util\reader\m\AdbeRdr70_enu_full.exe] Czech: [c:\util\reader\cs\AdbeRdr70_cze_full.exe] Croatian: [c:\util\reader\yx\AdbeRdr70_hrv_full.exe] Danish: [c:\util\reader\da\AdbeRdr70_dan_full.exe] Dutch: [c:\util\reader\nl\AdbeRdr70_nld_full.exe] Finnish: [c:\util\reader\fi\AdbeRdr70_suo_full.exe] French: [c:\util\reader\f\AdbeRdr70_fra_full.exe] German: [c:\util\reader\g\AdbeRdr70_deu_full.exe]...
Page 14 First-time Operation Perform the touchscreen calibration. A Click [start] - [All Programs] - [Fujitsu Touch Panel (USB)] - [Touch Screen Calibration Utility]. B Using the stylus, touch each of the 12 “+” target marks one by one until it blinks, and then click [Calibration]. C Click [Save &...
Page 15 Using the Hand Strap The hand strap is convenient for computing while standing. To carry the computer, put your hand between the computer and the hand strap to prevent it from falling, and firmly hold the computer when using it. You can adjust the length of the hand strap by the following steps.
Page 16: On-Screen Manual
To access the Important Tips: Double-click on the desktop. Alternatively click [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips]. NOTE When Adobe Reader update notice is displayed, we recommend you follow the on-screen procedure and update.
Page 17: Handling And Maintenance
Handling and Maintenance Operation Environment Place the computer on a flat stable surface. Do not place the computer upright. If the computer is exposed to an extremely strong impact, it may become inoperable. Temperature: Operation: 5 °C to 35 °C Storage: -20°C to 60 °C Humidity: Operation: 30% to 80% RH (No condensation)
Page 18 Note that this service is only available in certain regions. http://www.absolute.com Turn on or restart the computer, and press while [Panasonic] boot screen is dis- played. The Setup Utility starts up. If the password is requested, enter the Supervisor Password.
Page 19: Expanding Memory
Expanding Memory Use RAM modules that comply with the specifications below. Using any other module may cause malfunction or result in computer failure. RAM module specifications: DDR2 SDRAM, 172 pins, Micro DIMM, 1.8 V, PC2-4200 CAUTION Use recommended RAM module products. Do not use non-recommended RAM modules. Non-recommended RAM modules may not operate properly, and may cause damage to your computer.
Page 20 Expanding Memory Press the RAM module down until the right and left hooks (D) lock into place. When pressing down the module, the right and left hooks will open slightly and will return after locking. If it is hard to press down the RAM module, do not try forcibly but check the module’s direction.
Page 21: Hard Disk Backup Function (Recover Pro)
Hard Disk Backup Function (Recover Pro) The Recover Pro creates a backup area (storage area) on the hard disk to back up (store) the hard disk data, and restores the backup data to its original location when it is lost or corrupted by operational errors or other factors. You do not need external media or peripheral devices to back up or restore hard disk data on this computer.
Page 22 [Run]. The computer restarts, and “Phoenix Always” screen appears. Alternatively turn on or restart the computer, and hold down F4 while [Panasonic] boot screen is displayed until “Phoenix Always” screen appears. Click [Protect / Recover], and click [Phoenix Recover Pro 6].
Page 23: Hard Disk Data Erase Utility
Preparation Prepare the Product Recovery DVD-ROM (included). Prepare the Panasonic CD/DVD drive (optional): CF-VDRRT1M, CF-VDRRT2W, CF-VDRRT3W. Remove all peripherals (except for the CD/DVD drive). Connect the AC adaptor and do not remove it until hard disk data erase is complete.
Page 24: Reinstalling Software
Back up important data to other media or an external hard disk before reinstallation. Preparation Prepare the Product Recovery DVD-ROM (included). Prepare the Panasonic CD/DVD drive (optional): CF-VDRRT1M, CF-VDRRT2W, CF-VDRRT3W. Remove all peripherals (except for the CD/DVD drive). Connect the AC adaptor and do not remove it until reinstallation is complete.
Page 25 Press At the confirmation message, select [Yes] and then press Enter. The Setup Utility settings excluding the password(s) will return to the default values. Press At the confirmation message, select [Yes] and press Enter. The Setup Utility will close, and the computer will restart. Perform the first-time operation ( page 12).
Page 26: Troubleshooting
If the power indicator is lit, slide the power switch for four seconds or longer to turn off, then turn on again. Using the following procedure, start up in Safe Mode, and check the error details. A Turn on the computer, and when the [Panasonic] boot screen disappears (after enter- F8 . ing the password...
Page 27 Starting Up and Standby and Hibernation Mode The computer will not auto- If you connect to a network using wireless LAN function, perform access point settings. matically enter standby/ Reference Manual “Wireless LAN”) hibernation. If you do not use wireless LAN function, turn off wireless LAN function. ( Refer- ence Manual “Wireless LAN”) Make sure that you are not using any software that regularly accesses the hard disk.
Page 28 Troubleshooting (Basic)/Error Code/Message Battery The battery indicator is If blinking red: Quickly save your data and power off your computer. Remove the battery pack and dis- blinking connect the AC adaptor, then connect them again. If the problem persists, contact your technical support office.
Page 29 If a device is connected to the USB port, disconnect the device, or set [Legacy USB Support] to [Disable] in the [Advanced] menu of the Setup Utility. To start the Setup Utility A Restart the computer. B Press F2 while [Panasonic] boot screen is displayed.
Page 30: Hardware Diagnostics
Hardware Diagnostics If the hardware installed in this computer is not operating properly, you can use the PC-Diagnostic Utility to determine whether or not there is a problem. If the utility discovers a problem in the hardware, contact your technical support office. Hardware that can be checked using the PC-Diagnostic Utility Hardware below can be checked using this utility.
Page 31 During the diagnostic check, do not remove the AC adaptor, or attach any peripheral devices. Turn on or restart the computer, and press while [Panasonic] boot screen is displayed. The Setup Utility starts up. If the password is requested, enter the Supervisor Password.
Page 32: Limited Use License Agreement
LIMITED USE LICENSE AGREEMENT ® THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC PRODUCT (“PRODUCT”) ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.
Page 33: Specifications
Specifications This page provides the specifications for the basic model CF-T5MWHSZBE/CF-T5MWHSZL2. The model number is different according to the unit configuration. To check CPU speed, memory size and the hard disk drive (HDD) size: Start the Setup Utility ( Reference Manual “Setup Utility”) and select [Information] menu. [CPU Speed]: CPU speed, [System Memory]: Memory size, [Primary Master]: Hard disk drive size Main Specifications Model No.
Page 34 The transfer rate using the SD Memory Card slot on this To switch USB Power Save Mode: computer is 8 MB per second. (This is a theoretical value, Click [start] - [All Programs] - [Panasonic] - [USB Power and differs from actual speeds.) Save Mode Switching Utility].
Page 35 Restart the computer. ™ Measured using BatteryMark Version 4.0.1 (LCD bright- ness : Maximum - Minimum). ™ Measured using MobileMark 2005 (LCD brightness : 60 cd/m Varies depending on the usage conditions, CPU speed, etc. It may take a long time to charge a fully discharged battery. Approx.
Page 36 Their standards and logos are uniform among participating nations. 22-E-1 Importer’s name & address pursuant to the EU GPSD directive 2001/95/EC/Art.5 Panasonic Computer Products Europe, Panasonic Marketing Europe GmbH Hagenauer Straße 43 65203 Wiesbaden Germany HS1107-0 ©...

This manual is also suitable for:

Cf-t5mwhszbe Cf-t5mwhszl2

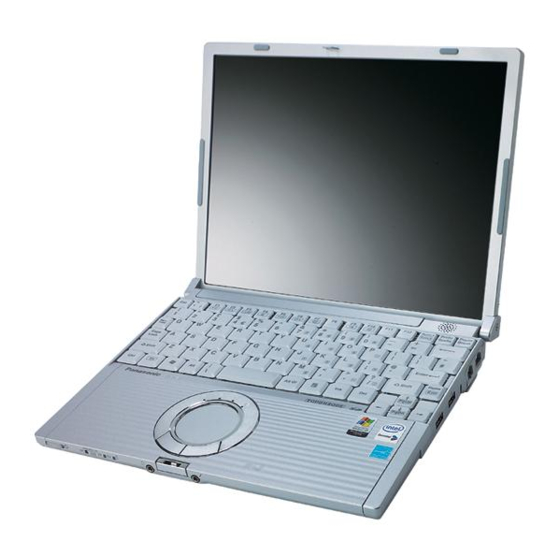

Panasonic CF-T5 series Operating Instructions Manual
