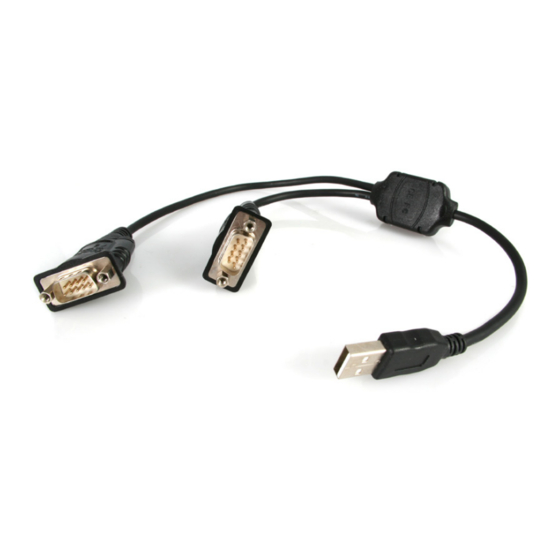

2 Port USB to RS232 Serial DB9 Adapter Cable
ICUSB232C2
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 10/07/2014
Advertisement
Table of Contents
Related Manuals for StarTech.com ICUSB232C2
Summary of Contents for StarTech.com ICUSB232C2
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 10/07/2014...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ...............................1 Features ................................1 System requirements ..........................1 Package Contents .............................1 Installation................................2 Verifying Successful Installation .......................2 Connecting Peripheral Devices ......................2 Mac Installation ............................3 Specifications ..............................4 DB9 Pin Assignments ..........................5 Technical Support ............................6 Warranty Information ............................6 Instruction Manual... -
Page 4: Introduction
Introduction The StarTech.com ICUSB232C2 2 port USB to DB9 RS232 Serial Adapter Cable lets you connect up to two DB9 RS232 serial devices simultaneously to your Mac or PC laptop or desktop computer through a USB port, as though the computer offered an onboard DB9M connector. -
Page 5: Installation
Installation 1. Insert the CD disk. 2. Plug the USB/Serial cable into your computer’s USB port and choose your PC’s OS from the selection on your screen. 3. The Add New Hardware Wizard will appear. Click Next. 4. The Wizard will search for new drivers for the USB device. Click Next. 5. -
Page 6: Mac Installation
Mac Installation 1. Insert the CD disk into your CD-ROM drive. 2. Connect your USB/Serial cable to the computer’s USB port. 3. Click OK. 4. Type a folder name for the USB Serial Adapter. 5. Open the folders to the new file you have created. 6. -
Page 7: Specifications
Specifications Host Interface USB 1.1 Chipset ID Prolific PL2303 1 x DB9 male External Connectors 1 x USB type A male LEDs None Supported Protocols RS232 Maximum Data Transfer Rate 230 Kbps Buffer Size 96 Byte Tx/Rx Operating Temperature -20°C ~ 80°C (-4°F ~ 176°F) Storage Temperature -20°C ~ 80°C (-4°F ~ 176°F) Humidity... -
Page 8: Db9 Pin Assignments
DB9 Pin Assignments Assignment Instruction Manual... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
