Quick-start guide
USB-C™ to DB25 Parallel Printer Adapter Cable
ICUSBCPLLD25
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com

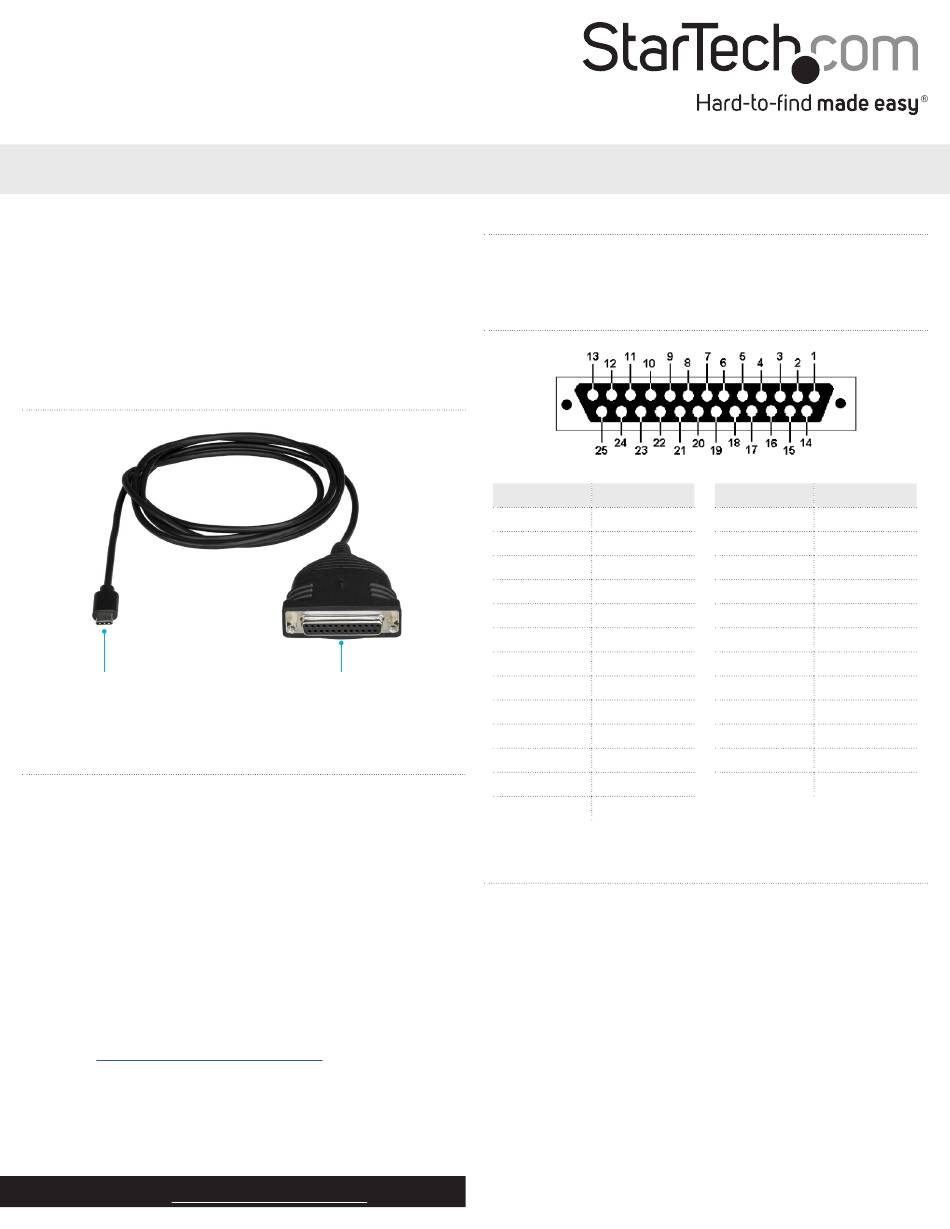

Product diagram
USB-C connector
Requirements
• USB Type-C™ port
• Printer with DB25 connector
• Computer system running any of the following operating systems:
• Windows® 10
• Windows 8.1
• Windows 7
• Windows Server® 2016
• Windows Server 2008 R2
• Windows Server 2012 R2
• macOS 10.12
• macOS 10.11
• Linux® 2.6.x to 4.4.x LTS versions only
Requirement are subject to change. For the latest requirements,
please visit www.StarTech.com/ICUSBCPLLD25.
The required drivers automatically install when you connect the
ICUSBCPLLD25 to your computer system and you aren't required to
install any additional drivers or software.
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/ICUSBCPLLD25.
DB25 connector
Package contents
• 1 x parallel printer adapter cable
• 1 x quick-start guide
DB25 female pinout
Pin
Description
1
NSTROBE
2
DATA 0
3
DATA 1
4
DATA 2
5
DATA 3
6
DATA 4
7
DATA 5
8
DATA 6
9
DATA 7
10
NACK
11
BUSY
12
PERROR
13
SELECT
Connect the ICUSBCPLLD25
If your operating system doesn't automatically install the printer
drivers, you need to download and install the printer drivers before
you complete the following steps.
1. Turn off your printer.
2. Connect the DB25 connector on the parallel printer adapter cable
to your printer.
3. Turn on your printer and computer system.
4. Connect the USB-C connector on the parallel printer adapter
cable to a USB port on your computer system.
When your computer system detects the parallel printer adapter
cable, it automatically downloads the necessary software to support
the adapter cable and the printer.
Pin
Description
14
NAUTOFD
15
NFAULT
16
NINIT
17
NSELECTIN
18
GND
19
GND
20
GND
21
GND
22
GND
23
GND
24
GND
25
GND
Manual Revision: 09/25/2017
