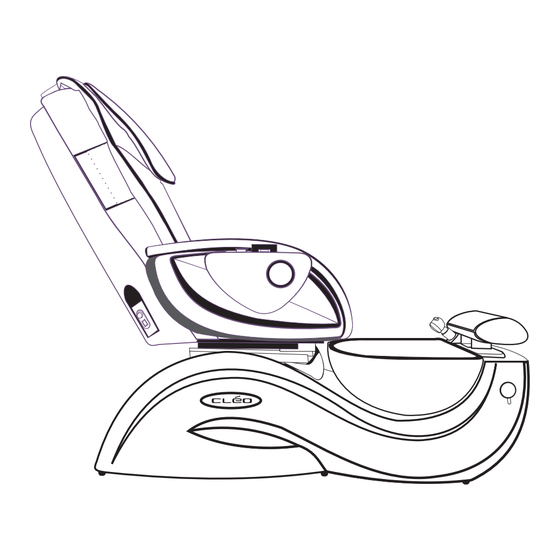

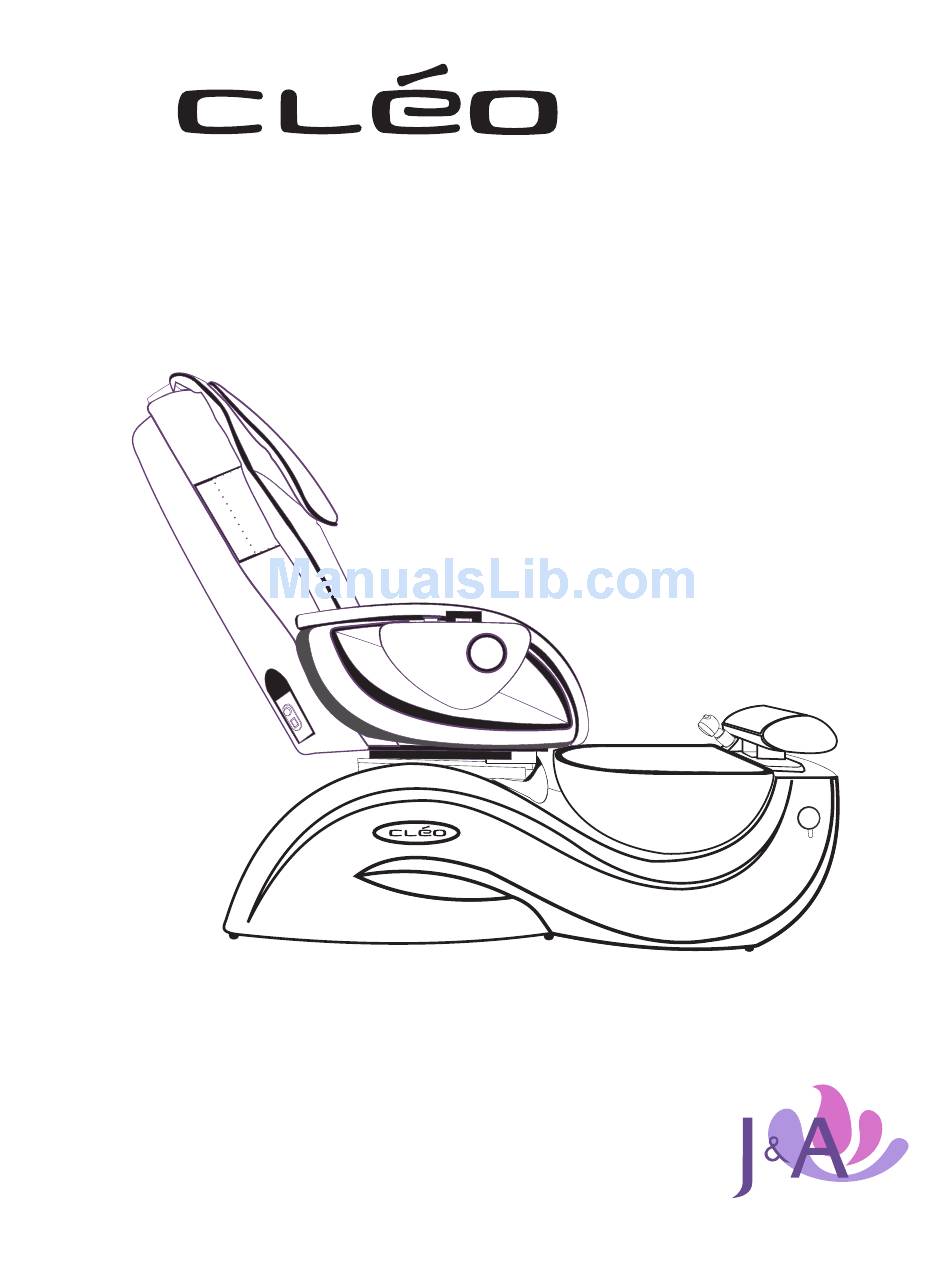

- Page 1 WHIRLPOOL PEDICURE SPA User’s Manual Please read user’s Manual thoroughly before using pedicure spa Pedicure Spa Copyright 2010 by J&A USA Inc. Printed in USA...
- Page 2 Table of Contents Table of Contents Introduction & Safety Identify Parts & Description Consideration Specification Dimension Drainage Connection Installation Summary Maintenance ( Dura-Jet) Maintenance (Magna-Jet (OPTIONAL) Discharge Pump Chair / Backrest attachment Disinfecting Pedicure spa User Recomendation UL Certificate Back Flow Prevention Device Warranty...
- Page 3 Thank you for choosing GX series , This finest Whirlpool Pedicure Spa has been develop by UPS (United Pedicure Spa) a subsidiary of J&A USA Inc., to bring quality and exquisitely balanced design yet afford-ability and dependability when properly use. Please read this entire manual thoroughly before installation and use PLEASE TAKE TIME TO READ THIS MANUAL THOROUGHLY BEFORE USE.
- Page 4 Identification Comfort Pillow Backrest Cover Back Mechanism Cover Easy Access Up & Down Armrest Dual Functional Shower Sprayer Remote Controller Pouch Three Stage Adjustable FootRest Granule Bowl Hygienize functional Drain Handle FRP Constructed Body Non Slip Bumpon Basin Three Stage Adjustable FootRest Standard Pipeless Motor Standard Pipless Motor...
- Page 5 Important Considerations Electrical Service 110V, 60Hz, 15Amp GFCI protected grounded circuit MUST be used to supply power each individual pedicure spa. And the main circuit breaker MUST be at 25Amp. For maximum of two units per each electrical outlet. Water Supply All plumbing connections must conform to local codes.
- Page 6 Specification Dimension & Weight (Shipping) Pedicure Spa with Massage Chair 67L x 37W x 40H 275 lbs Stool 20.25L x 27.25W x 17H 19 lbs Dimension & Weight (Net) Pedicure Spa & Massage Chair 55.25L x 27.75W x 55H 225 lbs Capacity of Tub Cleo GX 5 U.S Gallon...
- Page 7 DIMENSIONS 45 1/4” 29 1/4” 21 1/2” Open Tray Rear View 8” Front View 16 ½” 2” 5 ½” 3 ½” 14 ½” 10” 24 ½ ” 29 3/8” 27 3/8” Side View 7 3/4” 6 3/4” 5 1/8” 14 7/8” 54”...
- Page 8 DRAIN Back Flow Prevention Device (Dual Check Valve) Pedicure spa is/are equipped with the subject device as standard feature, sold to following state Effective April 01 2005: AZ, CA, NE, NV, OR, TX and WA Effective June 15 2005: IL, MN, WI and MI Effective May 01 2007: CT All J&A Products are Equipped with Backflow Protection (Dual Check Valves) as Standard as indicated in the manual.
- Page 9 Installation Specifications Summary Warning: Failure to comply with federal, state or local codes and ordinances will result in warranty being null and void. As stated, the pedicure spa installation must comply with all plumbing and electrical codes. A licensed plumber and licensed electrician must complete the applicable connections of the pedicure spa.
- Page 10 Dura-Jet III Safety Instructions When using electrical equipment, basic safety precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons, including the following: 1. Read and follow all instructions before using the equipment. 2.
- Page 11 When using electrical equipment, Basic safety precautions must be followed to reduce the risk of fire, electrical shock, and injury to Persons. 1. Read and follow all instructions before using the equipment. 2. Keep electrical cord out of heavy traffic area. To avoid fire hazard NEVER place electrical cord under the rug, near heat Generating devices.
- Page 12 How to USE Magnetic jet ! WARNING: DO NOT RUN DRY, BASIN MUST FILLED WITH WATER TO LEVEL INDICATOR. CAUTION: MAGNETIC JET COVER ASSEMBLY MUST ALIGN WITH DISCHARGE PORT POSITIONED AT 3/9 O’CLOCK. WHEN READY TO USE, MAKE SURE JET COVER IS POSITIONED AT 3 /9 OCLOCK FOR PROPER WHIRLPOOL ACTION IN THE BASIN.
- Page 13 Discharge Pump ( Optional): Up to 4ft @ +/- 39 sec. with 1/2” Connection to main drain Fastner On/Off Switch Discharge (Drain) outlet MUST be 1/2” or 3/4” for efficient drainage. Check valve required (SMALL Rubber Coupling) Air Check Valve 3/4”...
- Page 14 Recliner Piston End Attachment Instruction Bottom of Backrest Recliner Bracket Clevis pin Clevis Pin Recliner spacer Piston end Recliner piston Locking end - Must be Horizontal position 1. Remove Clevis pin from recliner piston end and make sure it is in horizontal position. 2.
- Page 15 DISINFECTING YOUR PEDICURE SPA Note: Please be advised that it is responsibility of purchaser/user to adhere strictly to the following procedure. Any non-compliance will be considered negligence of the purchaser/user. The Bureau of barbering and cosmetology requires that salons using whirlpool pedicure spas use the following disinfecting Procedures to ensure proper cleaning and maintenance of the equipment, and to prevent bacterial infection.
- Page 16 USER RECOMMENDATION PLEASE READ THE MANUAL THROUGHLY BEFORE USE TO ENSURE CORRECT OPERATION. THOSE UNDER A DOCTORS CARE OR WHO ARE EXPERIENCING ONE OR MORE OF THE FOLLOWING DONDITIONS SHOULD CONSULT THEIR DOCTOR BEFORE USE. - You are receiving medical treatment or are feeling ill. - Your body shows any cute symptoms.
- Page 18 Back Flow Protection Device (Dual Check Valve) May.1.2014 In accordance with applicable Local or State regulations, J&A USA Inc., The manufacturer of the pedicure whirlpool spa certifies that the following models are equipped with factory installed Dual Check Valve back flow preventer: ** Lenox Series ** Cleo Series ** Episode Series...
-
Page 19: Limited Warranty
Limited Warranty Pedicure Spa IMPORTANT To validate the limited warranty, The Limited Warranty Registration Form MUST be filled out completely and return to J&A USA within 30 days of original purchased date. This Limited Warranty is valid if J&A USA received registration form. J&A USA Inc. - Page 20 Limited Warranty Registration Form IMPORTANT To validate the limited warranty, The Limited Warranty Registration Form MUST be filled out completely and return to J&A USA within 30 days of original purchased date. This Limited Warranty is valid if J&A USA received registration form. Serial No.: Area Code: Phone :...
