Summary of Contents for j&a EMPRESS GT

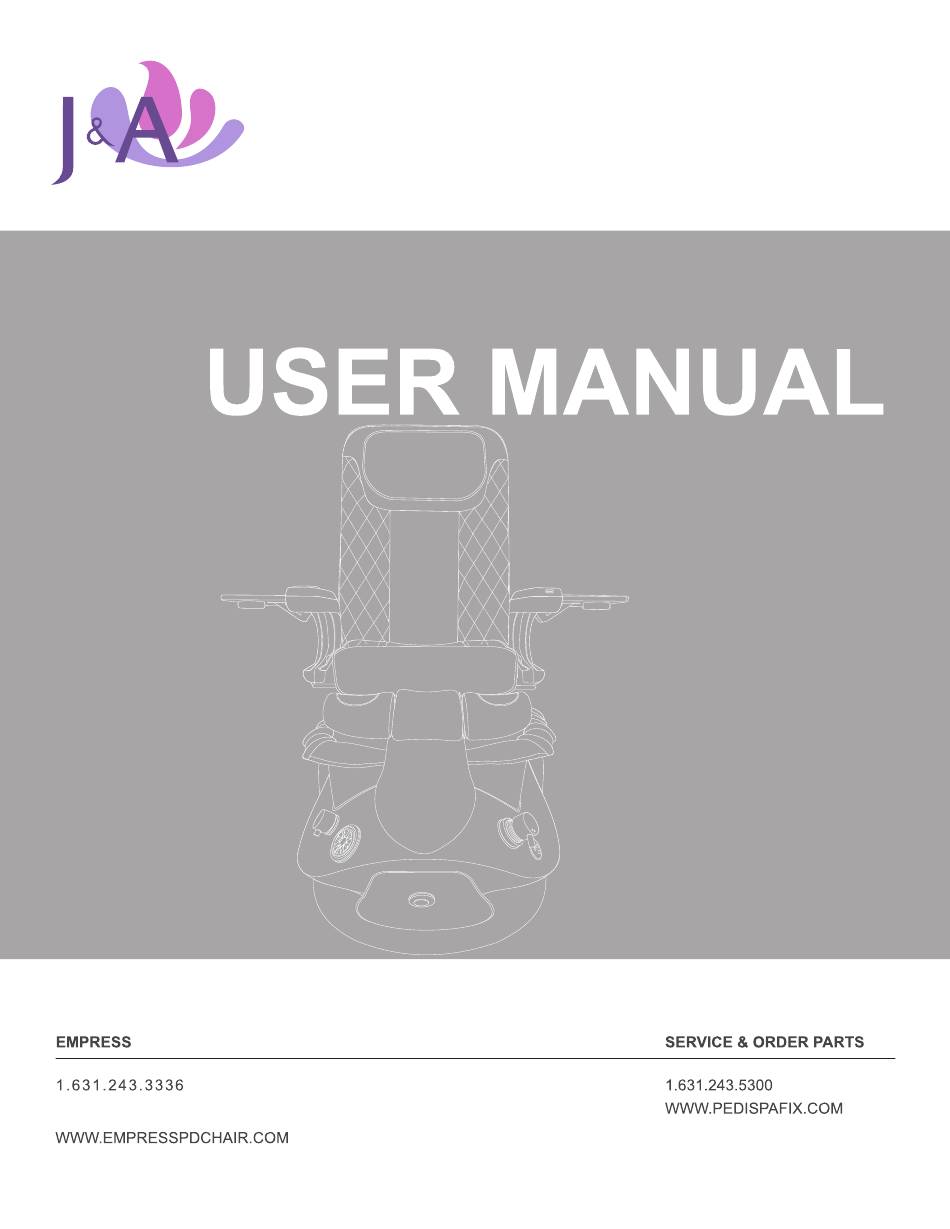

  • Page 1 Copyright 2023 by Empress Printed in USA The Source for Pedicure Spas EMPRESS GT WWW.JAUSAINC.COM...
  • Page 2 User’s Recommendation ---------------- Maintenance & Cleaning Upholstery ---------------- Pedicure Spa ---------------- Identification (Pedicure Spa) ---------------- Installation Summary ---------------- Dimension Empress GT ---------------- Drain Instruction ---------------- Identification - Plumbing ---------------- Option Discharge Pump ---------------- Ventilation ---------------- Auto Fill (5th Gen.) ----------------...
  • Page 3: Important Requirements

    Introduction Thank you for choosing Empress series,This finest Whirlpool Pedicure Spa has been develop and Manufactured by J&A USA Inc., to bring quality and exquisitely balanced design yet afford-ability and dependability when properly use. Please read this entire manual thoroughly before installation and use PLEASE TAKE TIME TO READ THIS MANUAL THOROUGHLY BEFORE USE.
  • Page 4 6. Hot & Cold shut-off utility valves required...
  • Page 5 Important installing Considerations Please check adequate Electrical Rating & Hot water source Temperature setting based on Hot water source recommendation before installations. Electrical Service 110V, 60Hz, 15Amp GFCI protected grounded circuit MUST be used to supply power each individual pedicure spa. And the main circuit breaker MUST be at 25Amp. For maximum of two units per each electrical outlet.
  • Page 9 Empress GT Footrest Open Height 53 1/2” 4” 21” 15” Front to Center of Drain 48” 18” Space Req. 52”...
  • Page 10 Empress GT Identification HeadRest Pillow Backrest USB Charging Port Embedded Remote Control Folding Tray Folding Tray with Cup Holder with Cup Holder Up and Down Armrest Up and Down Armrest Seat Cushion Armrest Stopper Resin Bowl Three piece Footrest Pull Out Shower Head...
  • Page 11: Specification

    Empress GT Specification 53 1/2” Footrest Open Height 53 1/2” 4” 17” 21” 22 1/4” 15” Front to Center of Drain 48” 18” Space Req. 52” Specification Dimension & Weight Pedicure Spa & Massage Chair 240 Lbs 37”W x 66”L x 40”H...
  • Page 12 Empress GT ; Dimension Open Tray to Tray 45 3/4” Arm to Arm 29” Seating Width 22 3/4” Tray 8” 15” Drain 2 1/2” 3 5/8” 3 3/8” 8 1/2” Ventilation 2” OD Outlet 29” 23” 17” 22 1/4” Footrest Open Height 53 1/2”...
  • Page 13 Empress GT: Drain Floor Drain Connection (Not Recommanded) Required P-Trap installation Discharge Pump ( Main Drain 15” Front to Center of Drain 18” 2~3 Feet above the Ground) Space Req. Required 3/4” Outlet Connection 3/4” Drain Gravity Drain Connection Outlet Ground Level Main Drain Connection 1 1/2”...
  • Page 14: Installation Instruction

    Empress GT: Discharge Pump (Optional) Up to3 ft +/- 45 sec. with 3/4” outlet Model: TS-B40-3A Rating: 120VAC. 60Hz. 0.8A. 75W Flow Rating: 6 Gal. Per Min. Max. Lift: 3 FT. 3/4” Discharge Pipe Outlet Drain outlet MUST be 3/4”...
  • Page 15 J&A - Air Ventilation System for Pedicure Spa Air Ventilation System - improve air quality, can minimize exposure and reduce the health risk of the customer and salon technicians. Empress GT Ventilation Outlet Hole Size: 2 1/4” 10 1/4” 10 3/4”...
  • Page 16 Features and Installation Guide Intelligent Spa System (Auto Fill) - Optional iFill5 Features Installation Guide Control KeyPad Master Control Box Model L0903A BackFlow Protection Attention: All J&A Pedicure Spa equipped with Backflow Protection prevent water contamination (see Manual) if Local or State required specific Backflow Protection Device, the owner must be installed according to the local and State requirement.
  • Page 17 ATTENTION: BEFORE PRESSING AUTO iFILL BUTTON, BE SURE PREVIOUS SESSION IS COMPLETE AND DRAIN OUT WATER IN THE BASIN. TO UNLOCK THE AUTO BUTTON, PRESS END BUTTON.
  • Page 19 Motor Bottom View of Magnetic Jet Base Magnetic Jet Base Magnetic Impeller Magnetic Whirlpool jet cover Round Magnetic Field (housing)
  • Page 20 Infiniti PipeLess Whirlpool Motor...
  • Page 21 Empress GT Footrest and Back Frame Assembly Recliner Piston End Attachment Instruction 1. Remove Clevis pin from recliner piston end and make sure it is in horizontal position. 2. Slowly raise up the backrest to aligned with recliner piston. 3. Insert Clevis Pin into the backrest bracket through recliner piston and secure with locking pin.
  • Page 22: Remote Control Operation

    Empress GT Remote Function Remote Control Operation STOP POWER ON/OFF Press POWER button TIME SELECTION Power On/Off Button and Manual Timer setting for 10. 20. 30 Minutes to stop the massaage AUTO MASSAGE Automatic Program selection MANUAL MASSAGE AUTO button AUTO I or AUTO II.
  • Page 23 Empress GT Massage Mechanism Chair Main Frame Massage Mechanism Frame Mechanism Limited frame Bar Phillip Screws Gear Box DC Motor (Tapping) Massage Arm extension (Massage Roller) Mechanism Track Guide Roller DC Motor (Kneading) Limited Switch & Back up Switch (Trigger Type)
  • Page 24 Empress GT - 2nd Remote Control (Optional) 2nd Remote Control Connection to Main PCB & Hand remote 2nd Remote Control Hand Remote Connection Female Receptacle (From PCB) (Male Receptacle) Connection 2nd Remote Control * Installed in front of Pedicure spa...
  • Page 25 JA-NPBX-112310721 COMPLIANCE WITH FOLLOWING STANDARD (S): AMSE A112.18.3-2002 (R2008) AND ASME A112.18.1-2012 / CSA B 125.1-12...
  • Page 26 Limited Warranty Pedicure Spa IMPORTANT To validate the limited warranty, The Limited Warranty Registration Form MUST be filled out completely and return to J&A USA within 30 days of original purchased date. This Limited Warranty is valid if J&A USA received registration form. J&A USA Inc.
  • Page 28 The Source for Pedicure Spas Copyright 2017 by J&A USA Inc. Printed in USA J&A USA, INC 335 CROOKED HILL RD., BRENTWOOD, NY 11717 631.243.3336 - WWW.JAUSAINC.COM SCAN ME www.jausainc.com SERVICE & ORDER PARTS 631.243.5300 - WWW.PEDISPAFIX.COM SCAN ME www.pedispafix.com...
