ASSEMBLY

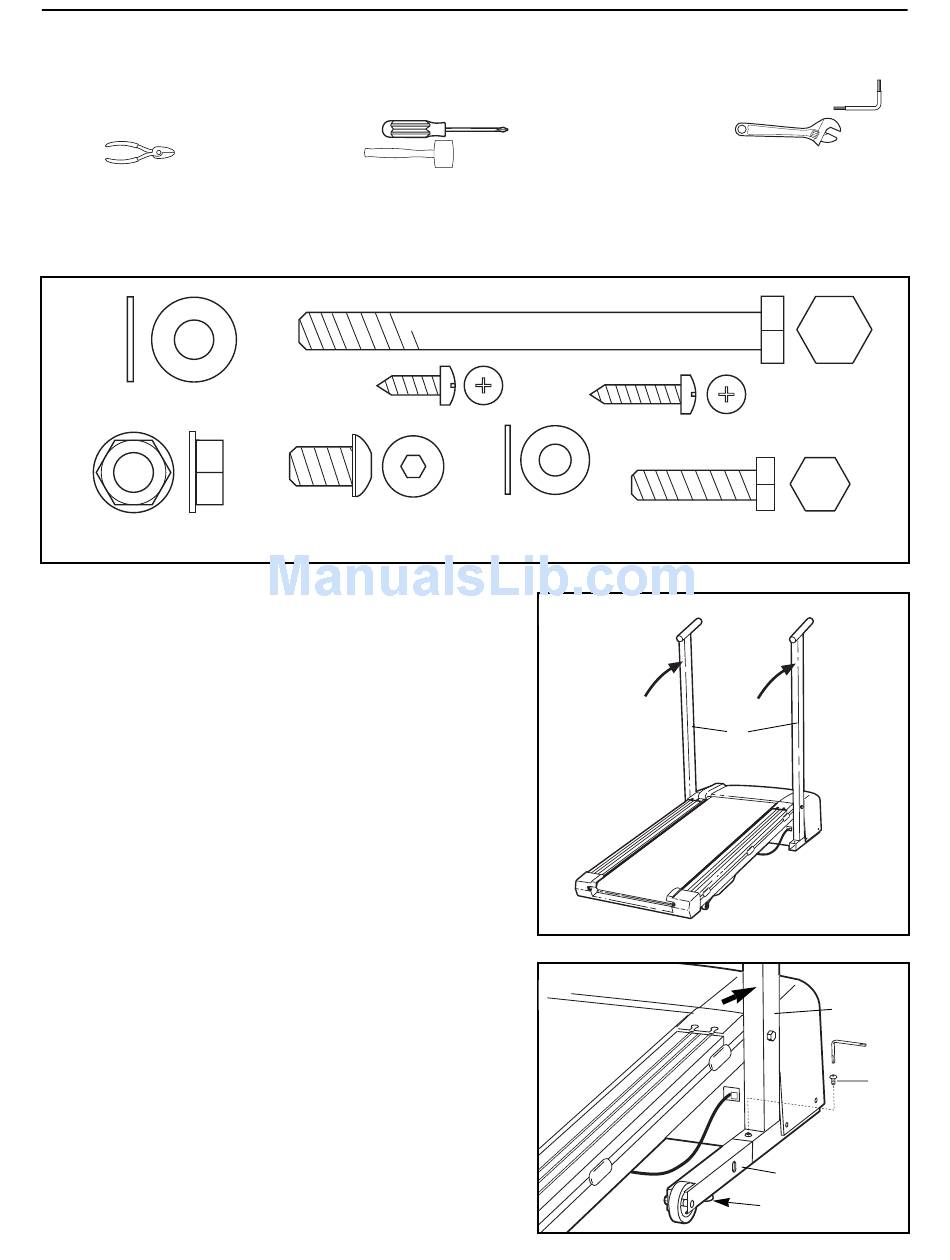

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials; do not
dispose of the packing materials until assembly is completed. In addition to the included allen wrench
assembly requires a phillips screwdriver
cutters , and a rubber mallet
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Handrail Washer (92)Ð2
Handrail Nut (93)Ð2
1. With the help of a second person, carefully raise the
Uprights (11) until the treadmill is in the position shown.
2. Insert one of the Extension Legs (34) into the treadmill
as shown. Make sure that the Base Pad (40) is on the
indicated side. Note: It may be helpful to tip the Uprights
[11] in the direction shown by the arrow as you insert
the Extension Leg. To fully insert the Extension Leg, it
may be necessary to tap it with a mallet.
Attach the Extension Leg (34) with an Extension Leg
Screw (53). Be sure to push on the head of the
Extension Leg Screw while tightening it.
Attach the other Extension Leg (34) in the same way.
.
Handrail Bolt (91)Ð2
Small Screw (13)Ð2
Extension Leg
Screw (53)Ð2
5
, two adjustable wrenches
Screw (33)Ð4
Rack Washer
(41)Ð2
1
2
, wire
Rack Bolt (89)Ð2
11
11
34
40
,
53
