Data Sync Engineering NSM4MP3 Instruction Manual

• Works with all laptop/notebook HDD's
• Supports all layer-III (MP3) encodings
• Variable or fixed bit rates to 320 Kbps
• Detects master/slave drive setting
• Automatic power down on no activity

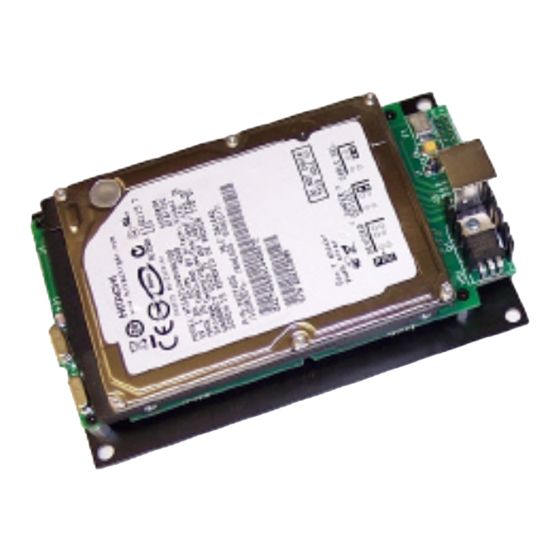

The NSM4MP3 is a micro-computer based hard disk player that replaces the entire CD player
mechanism in your NSM ES IV-CD technology model jukebox. The hard disk player works with any
jukebox that uses the # 174-873 Control Unit CD board or uses the CDM3 player in the CD changer.
This includes the Caravelle II, Fascination, Fire, Fire Bird, Fire Country, Firestorm, Galaxy, Performer
Grand, Silver City, Silver Sky, Soundmaster plus others. Installations a snap! Only two connections,
a 4-pin audio cable and an 8-pin control connector to position ST8 on the Control Unit board. The
player takes only seconds to install, without any modifications to the jukebox. Best of all, the hard
disk player will not skip and will never need to be cleaned or lubricated. The player works with any
PATA 44-pin ATA/IDE 2.5 inch laptop/notebook hard drive from 2GB and up. Uses the FAT32
filesystem which is c ompatible with Windows, Mac, Linux and other systems. A typical 100 CD
jukebox, with an average of 20 tracks each, would require a 10GB hard drive or Compact Flash card
at the CD quality bit rate of 192 Kbps.
DISCLAIMER – PLEASE READ
The NSM4MP3 kit was developed for jukebox owners for non public performance use. We do not
supply jukebox licenses and do not have any knowledge of what is required. It is the jukebox
owners responsibility to obtain all applicable licenses for public performance of copyright music.
