Product Highlights
•
No hole drilling or wallbox modifications required
•
Allows player usage without being hooked up to a wallbox
•
Folder numbers: 01-99, MP3 or WAV audio files: 001-255
•
Stores up to 80 wallbox or remote selections to be played
*The SD Memory Card Formatter can be Downloaded here
https://www.sdcard.org/downloads/formatter_4/
To format media above 32GB as FAT32, you can run "guiformat.exe"
which is available here www.ridgecrop.demon.co.uk/guiformat.htm
Data Sync Engineering
P.O. Box 539, Footbridge Lane, Bldg 3
Blairstown, New Jersey 07825
Model "WMP-255"
•
•
•
•

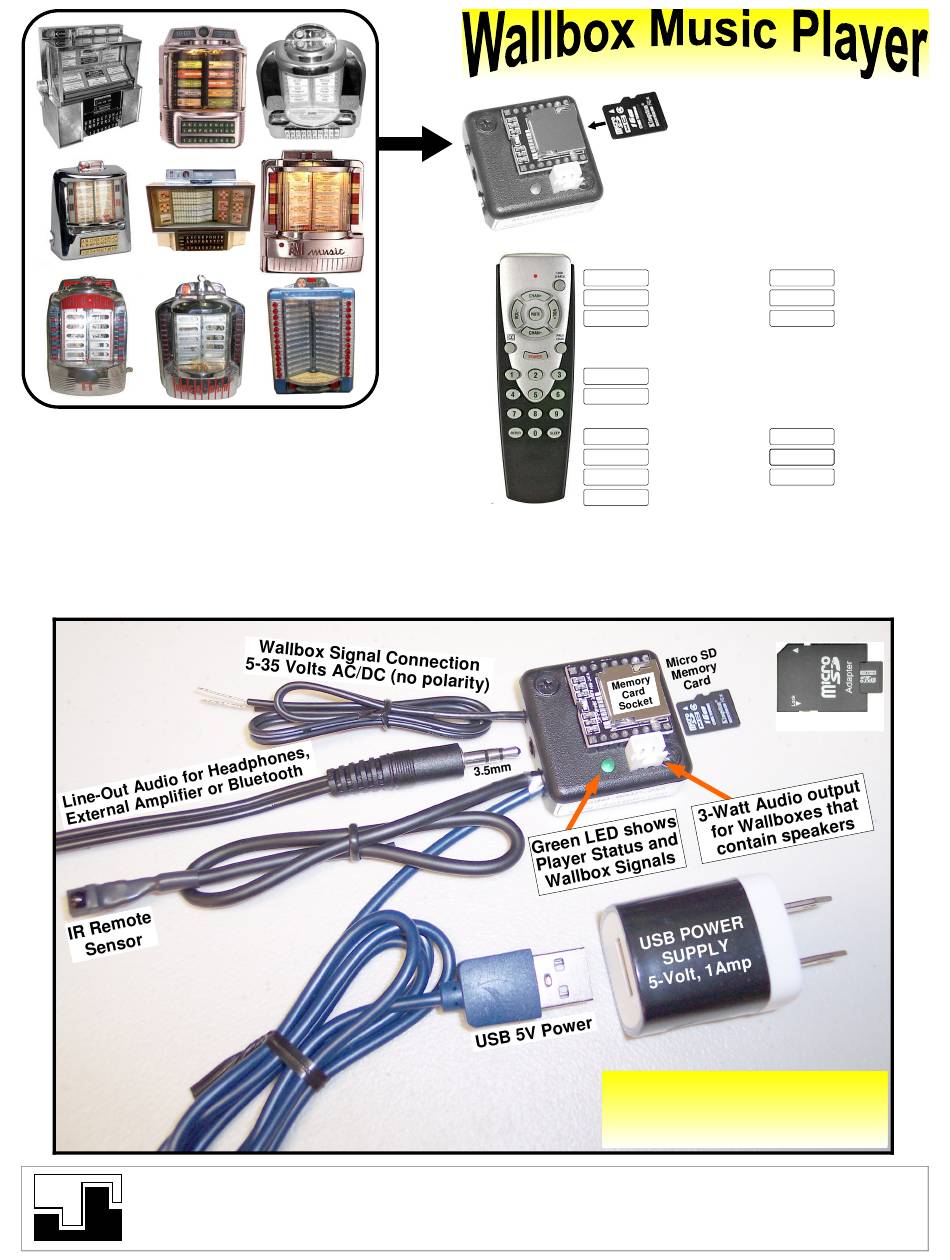

Worlds smallest player, 35 x 35 x 22mm
•
Remote selectable Volume & Equalizer
•
Amplifier output for Wallbox Speakers
•
Audio out jack for ext Amp or Bluetooth
•
LED to show WB Signal & Player Status
Code: 0041
Wireless Remote Control
CHAN+ AutoPlay On
VOL+
Volume Up
MUTE
Tog Play / Pause POWER Cancel Song
Numeric Buttons
001 - 255 Direct 3-digit Wallbox Folder selections
000
Enter Setup Mode (LED On) See Below
301 - 399 AutoPlay Folder 401 - 475 Option Modes
500 - 507 AP Interval
700 - 705 EQ Profile
901 - 919 Wallbox Type
Operating Features
•
Select individual folders for Wallbox & AutoPlay selections
•
Select Random or Sequential AutoPlay mode
•
Select AutoPlay Off, On & Time Period Interval
•
Built-In Wallbox testing and song preview modes
WMP-255 Player System
Copyright © 2022 Data Sync Engineering
TEL: (908) 362-6299
email: sales@datasynceng.com
Web: www.cdadapter.com
Micro-SD, up to 32GB capacity
Supports MP3 or WAV formats
99 folders with each to 255 songs
CHAN-
AutoPlay Off
VOL-
Volume Down
600 - 630 Pwr On Volume
801 - 899 Wallbox Folder
Micro SD Adapter
All Rights Reserved
Advertisement
Related Manuals for Data Sync Engineering WMP-255
Summary of Contents for Data Sync Engineering WMP-255
- Page 1 • which is available here www.ridgecrop.demon.co.uk/guiformat.htm Built-In Wallbox testing and song preview modes Micro SD Adapter WMP-255 Player System Copyright © 2022 Data Sync Engineering All Rights Reserved Data Sync Engineering TEL: (908) 362-6299 email: sales@datasynceng.com P.O. Box 539, Footbridge Lane, Bldg 3 Web: www.cdadapter.com...
- Page 2 CONFIGURATION SETUP SUMMARY The setup mode is entered after pressing the remote 000. When the green LED turns continuously on, enter the 3-digit function value to program your setting. If you changed your mind, and wish to exit, press any non-numeric button such as POWER. Digit Range Function Factory...
- Page 3 ABOUT THE SONG FOLDERS AND FILES Any folder, containing song files, can be assigned for Wallbox and/or AutoPlay selections. The folder name itself, is limited to only two numeric digits 01 to 99. Each song filename, within the folder, starts with the first three numeric digits 001 to 255 and ends with the last four character extension type, such as ".MP3"...
- Page 4 Wallbox Selections AutoPlay Selections Setting the Remote Control Code To set the code for this remote, Press & A wallbox transmits a series of pulses AutoPlay is a feature that picks songs at Hold the "Code Search" button until the which are decoded by the player to select a chosen period of time when no Wallbox 0041...
- Page 5 CONNECTING YOUR WALLBOX TO THE WMP-255 PLAYER Example Wiring for 3-Wire Wallboxes *Transformer is not supplied Transformer Output 24VAC @2A (48VA) WALLBOX SELECTOR Wallbox wires have no polarity WMP-255 Player 115VAC Input 24VAC Output (Black Wires) (White Wires) 24VAC In-line fuse holder...
- Page 6 CONNECTING YOUR WALLBOX TO THE WMP-255 PLAYER (cont.) Wurlitzer 5220 (200 select) and Wurlitzer 5225 (100 select) 5220 - Setup Code 000:902 5225 - Setup Code 000:908 Wallbox To WMP-255 Player 24VAC Power Transformer Wurlitzer 5250 (200 select) Wallbox Setup Code...
- Page 7 CONNECTING YOUR WALLBOX TO THE WMP-255 PLAYER (cont.) Seeburg Wall-o-matic 3WA / 3W160 (200/160 select) Wallbox Setup Code 000:904 Wallbox 24VAC Power To WMP-255 Player Transformer Rowe WRA / WRB / WRC (200 select) Wallbox Setup Code 000:905 A wire jumper must be inserted from the 24VAC main power terminal (#2) to the 24VAC* keypad motor terminal (#4).
- Page 8 CONNECTING YOUR WALLBOX TO THE WMP-255 PLAYER (cont.) AMI WQ-200 (200 select) Wallbox Setup Code 000:906 A wire jumper must be inserted from the 25VAC main power terminal to the 25VAC* lock-out. SIGNAL To WMP-255 Player 24VAC Wallbox 24VAC Power...
- Page 9 CONNECTING YOUR WALLBOX TO THE WMP-255 PLAYER (cont.) Rock-Ola 1558 (160 select) Wallbox Setup Code 000:910 SIGNAL To WMP-255 Player 24VAC Wallbox 24VAC Power Transformer Rock-Ola 500 (160 select) Wallbox Setup Code 000:910 SIGNAL To WMP-255 Player 24VAC Wallbox 24VAC Power...
- Page 10 CONNECTING YOUR WALLBOX TO THE WMP-255 PLAYER (cont.) Rock-Ola Tri-Vue 506 and 507 (160 select) "506" Top P.C. board, green jumper wire, must be at the "A" position) Signals are wired differently between the 506 and 507 model Rock-Ola Tri-Vue...
- Page 11 CONNECTING YOUR WALLBOX TO THE WMP-255 PLAYER (cont.) Wurlitzer 5204A (104 select) Wallbox Setup Code SIGNAL 000:916 SIGNAL To WMP-255 Player 24VAC 24VAC Wallbox 24VAC Power Transformer...
- Page 12 WALLBOX TO SONG NUMBER SELECTION CHART SEQUENCED NUMBER WALLBOXES SEQUENCED LETTER WALLBOXES SELECTED SONG NUMBER LTR SONG LTR SONG LTR SONG LTR SONG...
