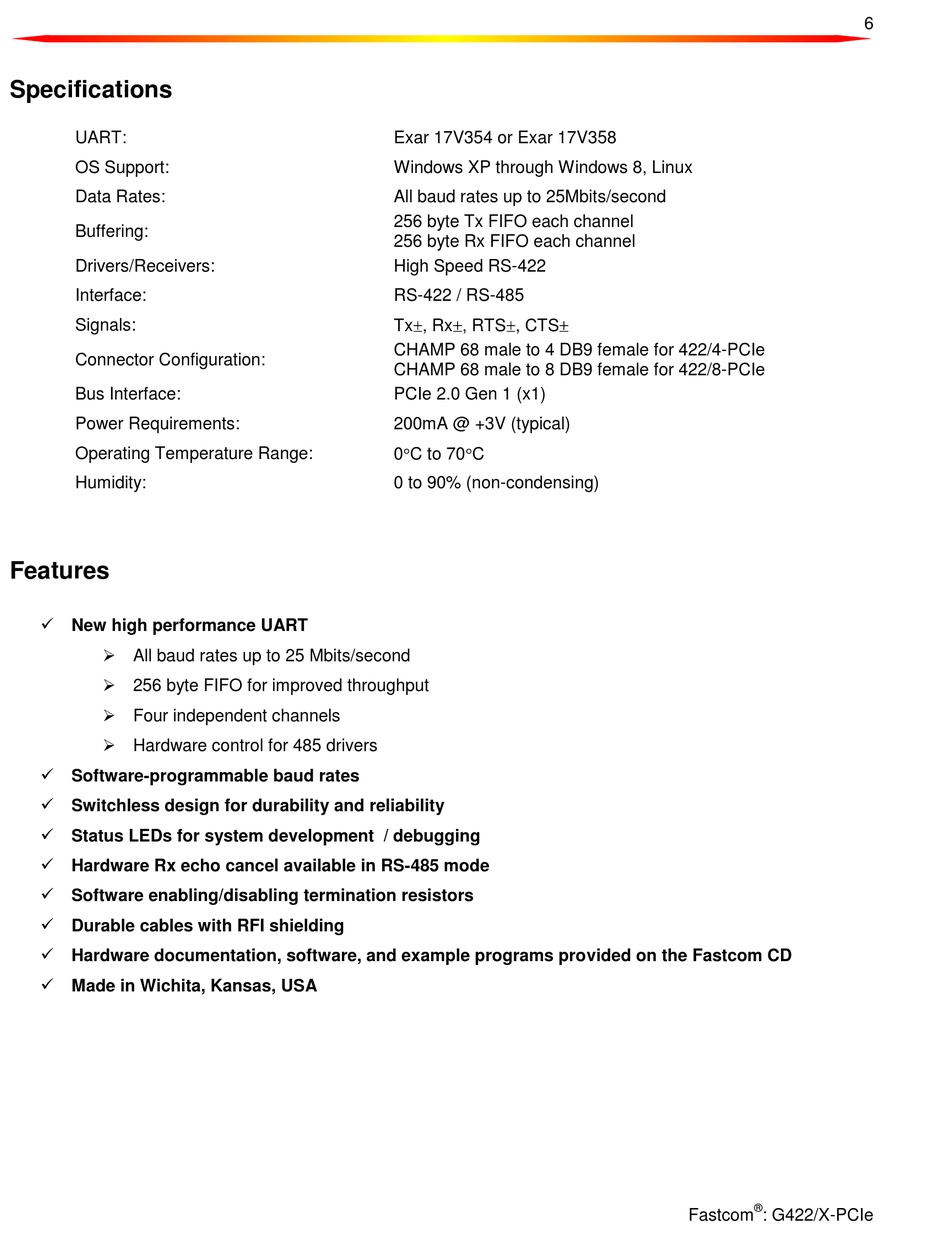

Specifications

UART:
OS Support:
Data Rates:
Buffering:
Drivers/Receivers:
Interface:
Signals:
Connector Configuration:
Bus Interface:
Power Requirements:
Operating Temperature Range:
Humidity:

Features

 New high performance UART
 All baud rates up to 25 Mbits/second
 256 byte FIFO for improved throughput
 Four independent channels
 Hardware control for 485 drivers
 Software-programmable baud rates
 Switchless design for durability and reliability
 Status LEDs for system development / debugging
 Hardware Rx echo cancel available in RS-485 mode
 Software enabling/disabling termination resistors
 Durable cables with RFI shielding
 Hardware documentation, software, and example programs provided on the Fastcom CD
 Made in Wichita, Kansas, USA
Exar 17V354 or Exar 17V358
Windows XP through Windows 8, Linux
All baud rates up to 25Mbits/second
256 byte Tx FIFO each channel
256 byte Rx FIFO each channel
High Speed RS-422
RS-422 / RS-485
Tx , Rx , RTS , CTS
CHAMP 68 male to 4 DB9 female for 422/4-PCIe
CHAMP 68 male to 8 DB9 female for 422/8-PCIe
PCIe 2.0 Gen 1 (x1)
200mA @ +3V (typical)
0 C to 70 C
0 to 90% (non-condensing)
6
®
Fastcom : G422/X-PCIe
