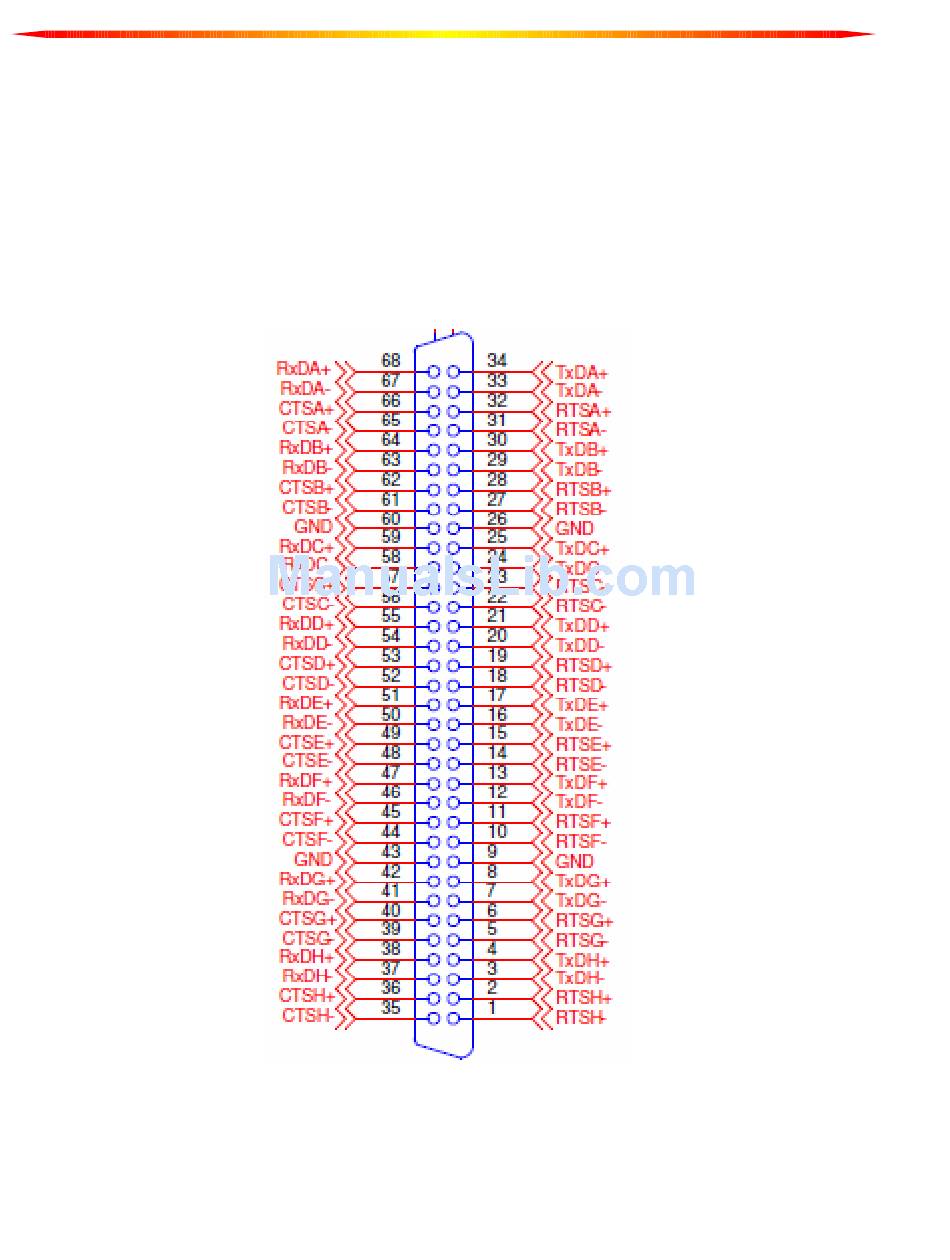

FASTCOM: G422/X-PCIE ADAPTER CABLE

We provide access to the individual channels of the FASTCOM: G422/X-PCIe through a shielded CHAMP 68-Pin

connector and an adapter cable (supplied with the board). The adapter cable consists of a CHAMP 68-pin male

plug fanning out to four standard DB9 female receptacles for the 422/4-PCIe and to eight standard DB9 female

receptacles for the 422/8-PCIe.

4-port cards will only use channels A-D.
