Positron G-1212 Quick Start Manual

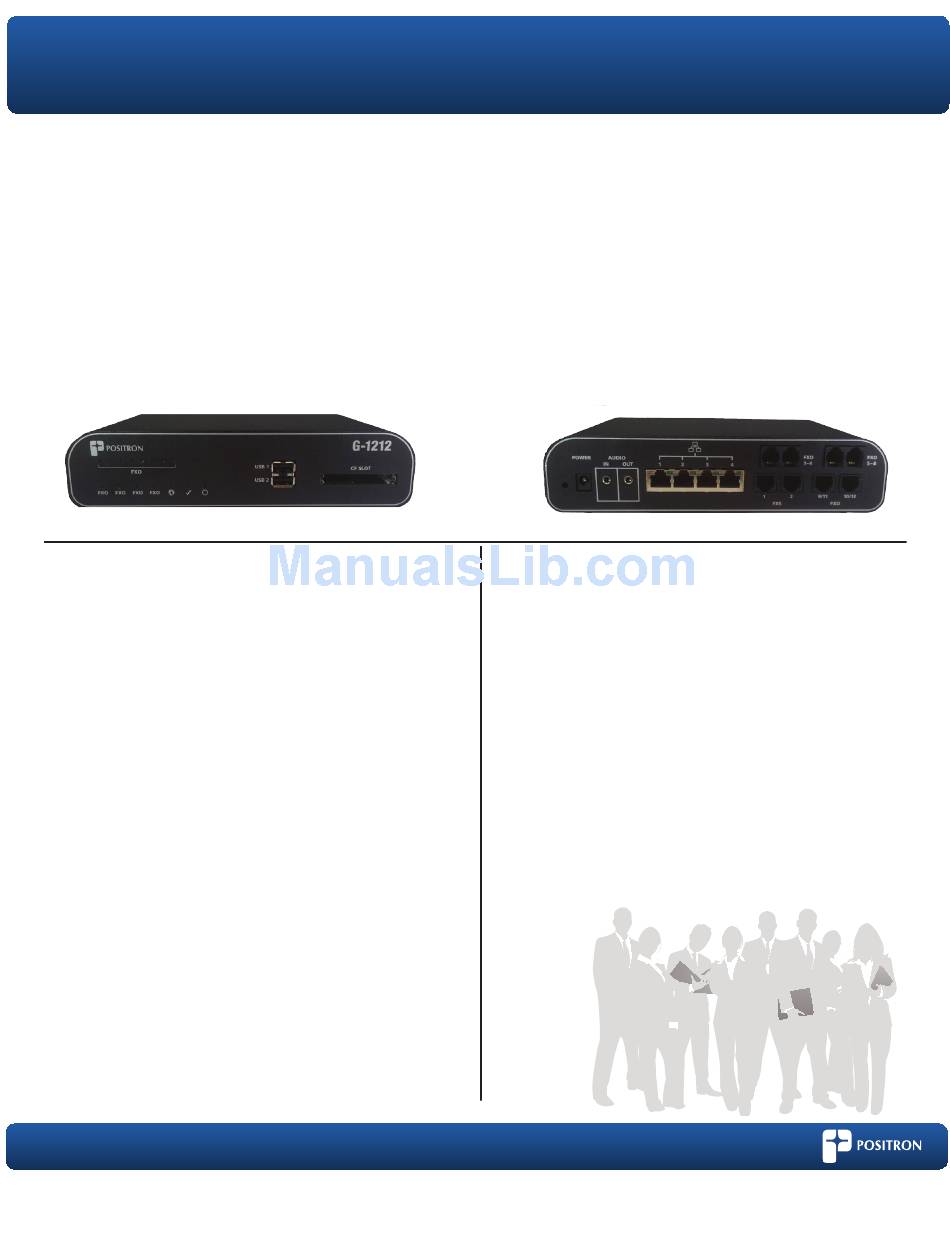

G-1212 Gateway Quickstart

Features

• Single Compact Flash port
• 12 Foreign Exchange Office (FXO) ports for connection to the telephone network
• Dual Foreign Exchange Station (FXS) port for connecting a phone or fax machine
• Hardware based G.168 echo cancellation chip up to 128 ms tail length
• Four port Ethernet Switch 10/100Mbps auto MDIX Ethernet port
• Dual USB ports
• Audio Input (mono) jack
• Audio Output (mono) jack
• Power failure FXO pass through (connect ports FXS 2 to FXO 9)
• Real Time Clock (battery)

Installation Steps

1. Insert the external power supply cable to provide power to the
device
2. The default IP address of the card is 192.168.1.2 – the Ethernet
interface on the four port switch is auto speed detect and auto cable
cross over. For configuration you may connect directly to the
Ethernet interface or through a switch, no special cable is required.
3. Connect the RJ-45 Ethernet cable provided (orange) to one of the
four available Ethernet ports on the G-1212
- The default IP address of G-1212 is 192.168.1.2
4. Connect the other end of the RJ-45 to your laptop / PC
- The IP address of the laptop / PC must be on the same
subnet of the G-1212 (192.168.1.X)
5. Connect to the browser based configurator by opening the
browser to the IP address http://192.168.1.2. The following is the
default connection credentials:

Contents of Box

• G-1212 Gateway
• External Power Supply
• One RJ-45 Cat5e Ethernet Cable (orange)
• Six RJ-12 FXO line splitters
• Six RJ-12 Telephone cables

Support

To ensure your PBX is working, try the following:
• Check the LED on the front panel, the LED with the circle mark
should be solid RED
• Plug an analog telephone into the FXS port – is there a dial tone?
• At the dial tone, press 6000 and you will hear the operator's voice
These steps do not require user configuration. If you are unable to
complete them, please contact Positron Telecommunication Systems.

Compact Flash

Sandisk Compact Flash is the preferred media of choice
Technical Support
Tel: +1 (514) 664-4719
E-mail: (support@positrontelecom.com)
Skype Contact for Live Chat
Username: positronsupport
