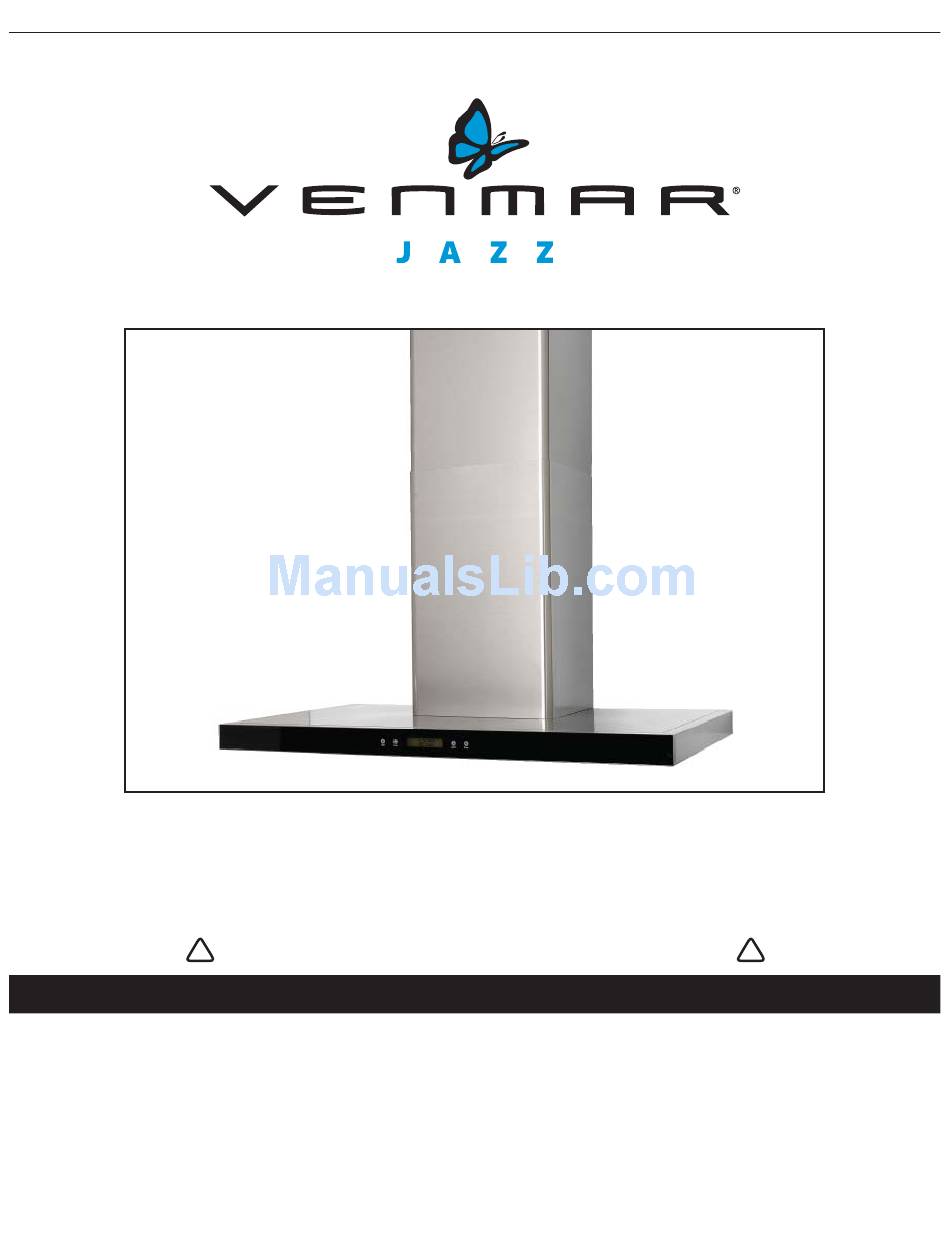

INSTALLATION INSTRUCTIONS
HB0127
VJ71030SS CHIMNEY RANGE HOOD
INTENDED FOR DOMESTIC COOKING ONLY
!
!

READ AND SAVE THESE INSTRUCTIONS

INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.
HOMEOWNER: USE AND CARE INFORMATION ON PAGES 8
9.
AND
Venmar Ventilation Inc., 550 Lemire Blvd., Drummondville QC J2C 7W9
1-800-567-3855
REGISTER YOUR PRODUCT ONLINE AT: www.bnv.ca
For additional information - visit www.venmar.ca
20082 rev. 03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VJ71030SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Venmar VJ71030SS

Summary of Contents for Venmar VJ71030SS

  • Page 1: Read And Save These Instructions

    READ AND SAVE THESE INSTRUCTIONS INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER. HOMEOWNER: USE AND CARE INFORMATION ON PAGES 8 Venmar Ventilation Inc., 550 Lemire Blvd., Drummondville QC J2C 7W9 1-800-567-3855 REGISTER YOUR PRODUCT ONLINE AT: www.bnv.ca For additional information - visit www.venmar.ca...
  • Page 2 WARNING WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR TO REDUCE THE RISK OF INJURY TO PERSONS IN THE INJURY TO PERSONS, OBSERVE THE FOLLOWING: EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*: 1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address 1.

  • Page 3: Table Of Contents

    To contact Venmar Ventilation Inc. Warranty Service call 1-800-567-3855 (in Canada). In order to qualify for a warranty claim, the owner of a Venmar Jazz range hood must have the model and serial number along with a proof of the original purchase date.

  • Page 4: Install Ductwork

    1. INSTALL DUCTWORK WARNING When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves. OOF CAP 6" OUND DUCT Plan where and how the ductwork will be installed. A straight, short duct run will allow the hood to perform most efficiently. Long duct runs, ECORATIVE ALL CAP elbows and transitions will reduce the performance of the hood.

  • Page 5: Prepare Installation

    3. PREPARE INSTALLATION NOTE: Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the retailer. Make sure that the following items are included: - Hood - Micromesh filters - Decorative flue assembly (lower and upper flues) - Lower flue mounting bracket - Upper flue mounting bracket - Hood mounting bracket...

  • Page 6: Install Hood Mounting Bracket

    5. INSTALL HOOD MOUNTING BRACKET WARNING • When cutting or drilling into wall, do not damage electrical wiring and other hidden utilities. • When building framework, always follow all applicable construction codes and standards. ALL STUDS RAMING BEHIND 1. Construct wood wall framing that is flush with surface of wall studs. DRYWALL Ensure: a) The framing is centered over installation location and is sturdy...

  • Page 7: Install Hood

    8. INSTALL HOOD WARNING Be careful when installing the decorative flue and hood, they may have sharp edges. CAUTION DO NOT REMOVE the protective plastic film covering the decorative flue (upper and lower) and the hood yet. 1. Install 6" round adapter/damper on top of the hood using 4 no. 8 x 7/16" mounting screws. 2.

  • Page 8: Reinstall Grease Filters

    9. REINSTALL GREASE FILTERS To reinstall the grease filters, align rear filter tabs with slots in the hood. Press down the metal latch tab, push each filter into position and release. Make sure filters are securely engaged after installation. HD0512 10.

  • Page 9: Operation

    11. OPERATION ( ’ CONT 1. TIME/DELAY ( OUBLE FUNCTION BUTTON : This button is used to set time when lighting and blower are not in use. Time is displayed in 24 hour cycle. To set time, press ETTING the button (1) for 4 seconds. The first two digits will flash. Use the blower button (3) to increase and the lighting button (2) to decrease. Press the time/delay button (1) again, the last two digits will flash.

  • Page 10: Replacement Parts

    Venmar Ventilation Inc. also recommends to contact a Venmar certified service depot for all HL0205 replacement parts and repairs. ART NO ESCRIPTION...
