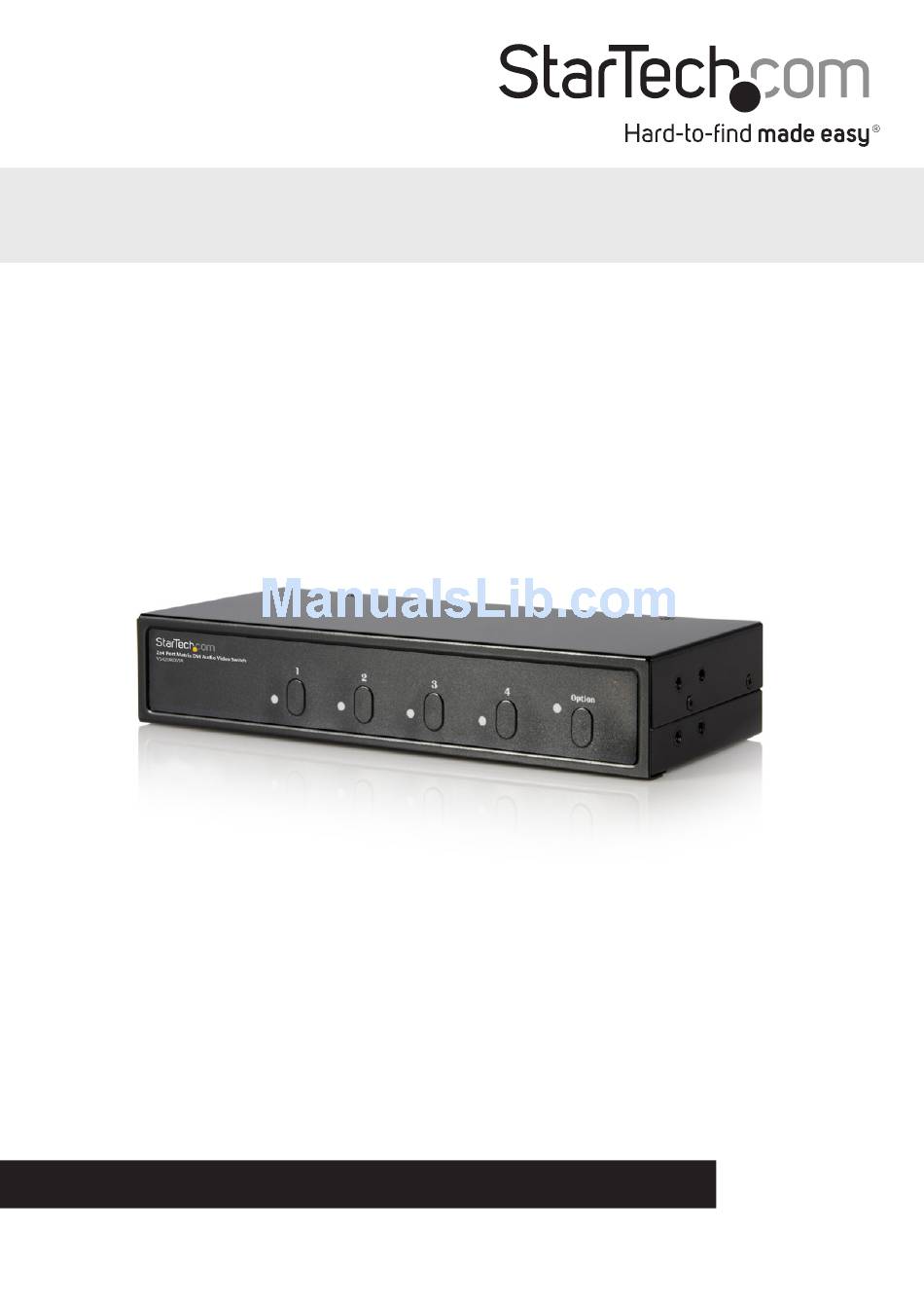

User Manual
2x4 Port Matrix DVI Audio Video Switch
VS420RDVIA
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 09/30/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com VS420RDVIA
Summary of Contents for StarTech.com VS420RDVIA
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 09/30/2011...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Hardware Installation ..........................2 Driver Installation ............................2 Specifications ..................4 Technical Support ..................5 Warranty Information ................5 Instruction Manual... -
Page 4: Packaging Contents
Installation Packaging Contents • DVI Video and Audio Matrix Switcher • Instruction Manual • IR External Sensor • Power Adapter • Remote Control • Set of Ear-Mounts for Rack Mounting Input Connection Step 1 Connect the DVI video port of the computer to the Source 1 port of the Video Matrix as shown. -
Page 5: Step
Step 3 Repeat Step 1 and 2 on Source 2, as shown. Output Connection Step 1 Connect your monitor to port 1 of the Video Matrix Switch, as shown Step 2 Connect a pair of speakers to port 1 of the Video Matrix Switch, as shown. Instruction Manual... -
Page 6: Step
Step 3 Repeat Step 1 and 2 on the audio and video output channels for port 2, if necessary. Step 4 Apply power to the Video Matrix Switch as shown. Instruction Manual... -
Page 7: Step
Basic Operations Front Panel Operation Once the unit has been powered on, all 4 red LEDs should be illuminated. Due to the factory default settings, if all 4 red LEDs are blinking, source 1 is empty. When all 4 LEDs are always ON then a video signal has been detected at source 1. -
Page 8: Remote Control Operation
Step 3 Press 1 or 2 within 3 seconds to select Source 1 or Source 2. After selecting, LED 4 will become either red or orange. • Red means Source 1 is selected • Orange means Source 2 is selected Step 4 Repeat Step 1 through 3 to route other ports. -
Page 9: Advanced Operations
Advanced Operations Front Panel Operation Turn the Video ON/OFF Step 1 Press the desired port (ie. 2). Step 2 Press and hold “Option” and the LED light 1 will light up. If the LED light is green it means the video output device is powered on. If it is red, then the monitor is powerd off. - Page 10 Turn the Audio ON/OFF Step 1 Press the desired port (ie. 1). Step 2 Press and hold “Option” and the LED light 2 will light up. If the LED light is green, it means the audio output is powered on. If it is red, then the audio output is powered off.
- Page 11 Turn ON/OFF the Auto Scan In the auto scan mode, the Video Matrix Switch automatically swithces between Source 1 and Source 2 sequentially for a particular monitor. Step 1 Press the desired port (ie. 4). Step 2 Press and hold Option. Step 3 Press 3 to turn on the auto scan mode for Monitor 4.
- Page 12 Set the Auto Scan Time Interval Step 1 Press 3 and 4 at the same time. Step 2 All four LEDs should be blinking. Press one to set the auto scan time interval. • 1 represents 8 seconds • 2 represents 15 seconds • 3 represents 30 seconds • 4 represents 45 seconds Reset the Unit to its Default Settings...
- Page 13 Unit Stack This function allows the user to use one single remote control to command up to 16 Video Matrix Switch units. Setting the Remote Controlling ID on the system 1. Power off the Video Matrix Switch. 2. Press and hold 1 and 2 at the same time. 3.
- Page 14 5. Press 1 once or twice to adjust the input video strength of the selected port. The colour of the LED will indicate the strength of the video signal. If it is green, the normal strength is in use. Red indicates the use of the enhance strength feature. Press 3 once or twoce to adjust the output current of the selected port.
-
Page 15: Specifications
Specifications VS420RDVIA Number of Video Source Ports Number of Monitor Ports Video Type Remote Control Remote Control Extender Jack Push Button Control LEDs Hot-Plug & Play Rack-Mounted 19” industry standard Automatic Scan Interval 8, 15, 30, 45 seconds DVI Cable Length (Max) -
Page 16: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 17 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
