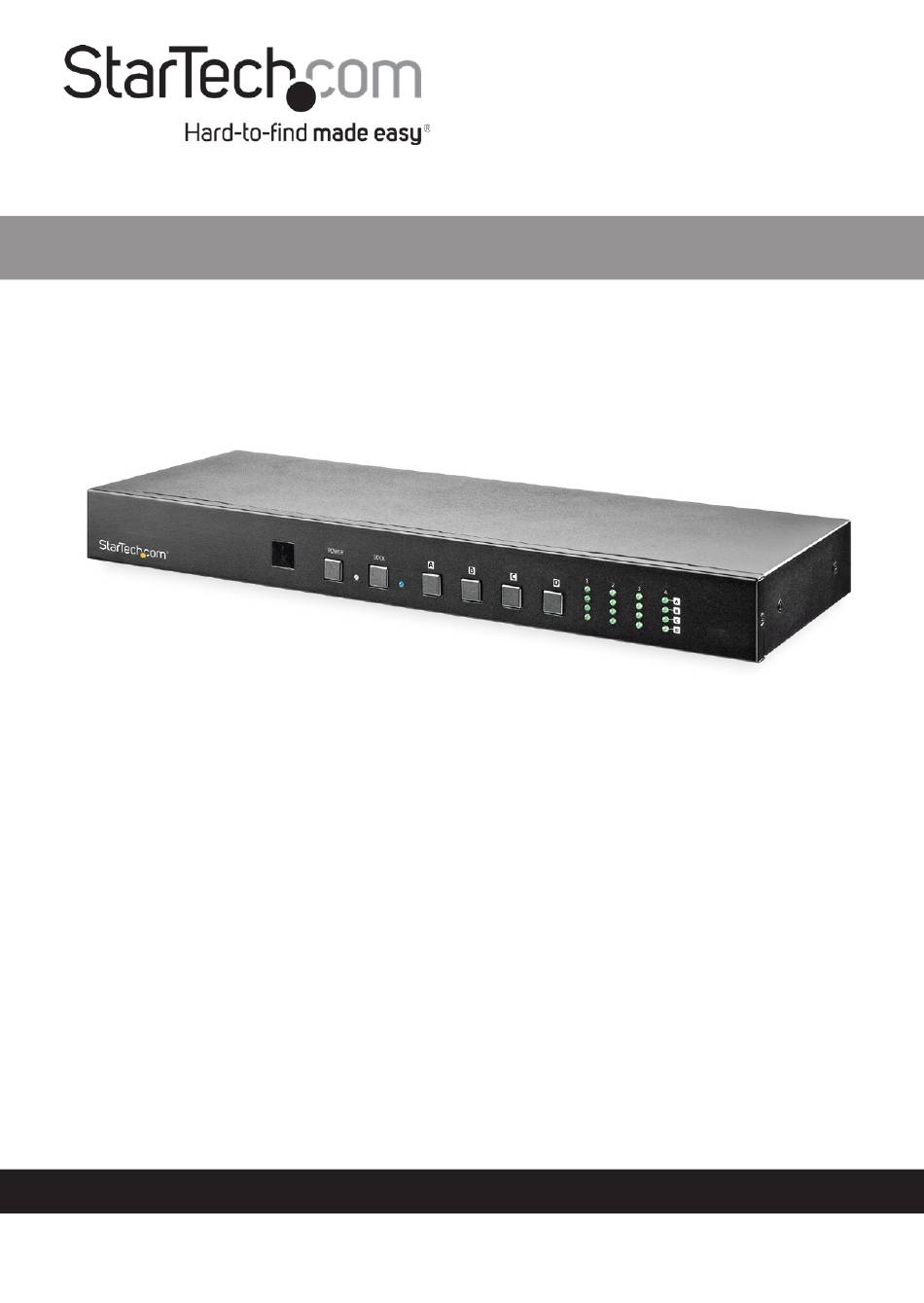

- Page 1 4x4 HDMI® Matrix Switch | 4K 60Hz Actual product may vary from photos User Manual SKU#: VS424HD4K60 For the latest information and specifications visit www.startech.com/VS424HD4K60 Manual Revision: 11/22/2018...
-
Page 2: Compliance Statements
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual... -
Page 3: Safety Statements
• I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati e stesi in modo da evitare pericoli di inciampo, rischi di scosse elettriche o pericoli per la sicurezza. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 4 • Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 5: Table Of Contents
Lock Button Function ................12 Locking Input Buttons ..........................12 Unlocking Input Buttons ........................12 Downloading Firmware Upgrade ............12 Hardware Operation ................12 Unplugging the Universal Power Adapter ..................12 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 6 Downloading EDID Settings from a Connected Sink .......26 Uploading EDID Settings ..............26 System Settings ..................28 Powering the Matrix Switch On/Off ....................28 Changing Username and Password ....................29 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 7 Telnet Control ..................34 Accessing the Command Line in Windows ..................34 Accessing the Command Line in macOS ..................34 Command Line Interface ........................35 Command List ............................35 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 8: Product Diagram (Vs424Hd4K60)
Rear View Power HDMI Locking HDMI Locking Control DC 24V Screw Holes Screw Holes Port Port IR IN HDMI HDMI RS232 Service Input Output Serial Port Ports Ports Port To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Product Information
Cables RS232 Serial Cable x 1 • CAT5e/6 Cable x 1 • M/M HDMI cables for Displays Devices and Video Sources • Replacement Battery CR 2025 Battery • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Installation
Locking Screw in the Locking Screw Hole above the corresponding HDMI Port. Using the Phillips Head Screwdriver, tighten the Locking Screw. Be careful not to over-tighten. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 11: Optional Installation
To control your Matrix Switch through RS232: Connect a 9-Pin Serial Cable (sold separately) to the RS232 • Serial Port on the Matrix Switch and to an RS232 Serial Port on the Host Computer. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 12: Serial Control Settings
Matrix Switch. Connect the IR Receiver to the IR IN Port on the Matrix • Switch. Face the IR Receiver in the desired direction to receive the IR signal. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 13: Lock Button Function
To unplug the Universal Power Adapter gently slide the • Connector Housing away from the Matrix Switch. Remote Control Enables you to control the Matrix Switch primary functions remotely. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 14: Remote Control Functionality
On the back of the Remote Control, slide the Lock on the Battery Housing. While sliding the Lock, pull the Battery Housing, and slide it away from the Remote Control. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 15: Mounting The Matrix Switch
Insert the Bracket Screws (4) through the Mounting Brackets and into the Mounting Holes. Tighten the Mounting Screws using a Phillips Head Screwdriver, be careful not to over-tighten. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 16: Web Interface
Connect the Matrix Switch to a Computer on the same network. Accessing the Web Interface Open a Web Browser on the Computer. Make sure that the Computer is connected to the same network as the Matrix To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 17 Web Browser. On the Login screen, enter the Username (admin) and Password (admin) Login screen Once you have logged into the Web Interface the Switch tab will appear. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 18: Switch
Repeat Steps 1 - 2 to configure the other Outputs. Changing Output/Input Name On the Switch tab, select the Edit icon on the Output you wish to change. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 19: Muting/Unmuting A Channel
The icon will appear crossed out, indicating that the corresponding Output Channel has been muted/blanked out. Click the Mute/Blank icon a second time to reactivate the Output Channel. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 20: Creating An I/O Position Preset
Creating an I/O Position Preset On the Switch tab, set up Input/Output positions (see Setting an I/O Position). Click on the Store Current I/O Position icon (top right). To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 21: Loading An I/O Position Preset
Switch tab. Loading an I/O Position Preset On the Switch tab, click on the Recall the Store I/O Position icon (top right). To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 22: Changing A Preset Name
The Switch tab will appear with the I/O preset loaded. Changing a Preset Name On the Switch tab click on the Store Current I/O Position icon (top right). To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 23 Click the Save button to save the new preset name. - or - Click on the Cancel button to return to the Switch tab without making any changes. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 24: Edid Settings
4KUHD2CH: 4K Ultra High-Definition-2-Channel • 4KUHDMCH: 4K Ultra High-Definition-Multi-Channel • 4KUHD+2CH: 4K Ultra High-Definition + 2-Channel • 4KUHD+MCH: 4K Ultra High-Definition + Multi-Channel • TXA: Transmitter A • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 25: Downloading Edid Settings
EDID Input settings you want to download (e.g. EDID USER 1 corresponds to Input 1 settings). The EDID Setting will be saved to your Host Computer in a .bin file format. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 26: Downloading Edid Settings From A Connected Sink
Enables you to upload a custom EDID setting to the Matrix Switch. On the Switch tab, click on the EDID Settings tab, the EDID Settings tab will appear. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 27 Note: The EDID file must be in .bin file format. Click the Update button, a notification screen will appear asking “Are you sure you want to update EDID? ”. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 28: System Settings
From the Switch tab click on the System Settings tab, the System Settings tab will appear. System Settings screen Click on the Power field to toggle the Matrix Switch On or Off. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 29: Changing Username And Password
Enter the new password in the New Password field (Max. 8 characters). Re-enter the new password in the Confirm Password field. Click the Save button to save changes. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 30: Setting Web Login Timeout
System Settings tab will appear. System Settings screen Click the Web Login Timeout (Minute) drop-down list and select a new timeout time (values range from 5 - 60 minutes). To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 31: Changing Network Settings
System Settings tab will appear. System Settings screen Enter the following network information: IP Mode • Static • DHCP • IP address • Netmask • Gateway • MAC Address • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 32: Resetting The Matrix Switch To Default Settings
Click on the Factory Reset button to reset the Matrix Switch to factory defaults. Upgrading Firmware Note: Do not turn off the Matrix Switch when performing a firmware update. Enables you to upgrade the Matrix Switch’s firmware. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 33 The File screen will appear which enables you to access the Host Computers files. Select the appropriate firmware file. Click the Upgrade button to apply the firmware upgrade. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 34: Telnet Control
IP Address of the Matrix Switch and a port number if you are not using a standard or default port number. Command Line Interface screen Press the Enter button, to connect to the Matrix Switch. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 35: Command List
SETIP xxxx. xxxx.xxxx = 0 - 255) Displays the current IP Configuration IPCONFIG RSTIP Sets the IP configuration to DHCP mode Powers the Switch Off Powers the Switch On To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 36 Resets routing settings back to default Enables you to update the Switch’s USBISP firmware using the USB port Displays all commands and descriptions HELP Displays all commands Exits Telnet QUIT To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
