  • Page 1 Electronic Service Manuals This electronic document is provided as a service to our custom- ers. We do not create the contents of the information contained in this document. Should you have detailed questions pertaining to the information contained in this document, you may contact Michco, or the manufacturer which provided the original information in this electronic deliverable.

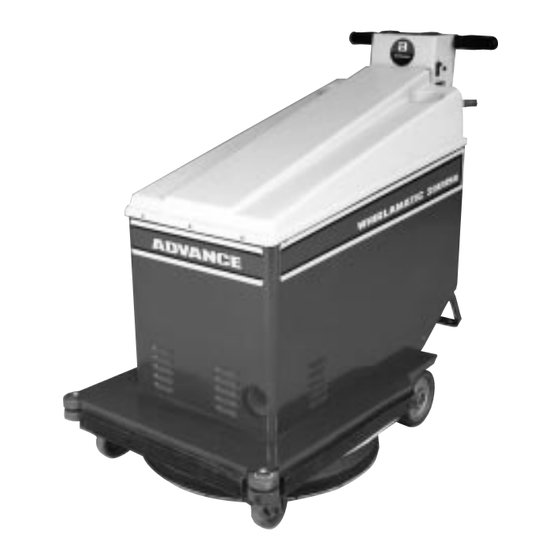

  • Page 2 ™ Whirlamatic UHSB 20 ™ Whirlamatic UHSBD 20 OPERATOR MANUAL Advance MODELS 56393500(UHSB 20) 56393600(UHSBD 20 / OBS) revised 10/00 Form Number 56041227...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS _____________________________________________________________________________________________________________________________ Page Introduction ........................3 Parts and Service ......................3 Nameplate ........................3 Uncrating the Machine ..................... 3 Cautions and Warnings ....................4 Importantes Mesures de Sécurité ..................5 Battery Installation ......................6 Know Your Machine ......................7 Preparing the Machine for Use ..................

  • Page 4: Introduction

    Repairs, when required, should be performed by your Authorized Nilfisk-Advance Service Center, who employs factory trained service personnel, and maintains an inventory of Nilfisk-Advance original replacement parts and accessories. Call the NILFISK-ADVANCE DEALER named below for repair parts or service. Please specify the Model and Serial Number when discussing your machine. (Dealer, affix service sticker here.)

  • Page 5: Cautions And Warnings

    IMPORTANT SAFETY INSTRUCTIONS This machine is only suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices other than normal residential housekeeping purposes. Read all instructions before using. WARNING! To reduce risk of fire, electric shock, or injury: Use only as described in this manual.

  • Page 6: Importantes Mesures De Sécurité

    IMPORTANTES CONSIGNES DE SECURITE Cette machine ne convient qu´à un usage industriel, par exemple dans les hôtels, les écoles, les hôpitaux, les usines, les boutiques et les bureaux et autres utilisations que le ménage domestique résidentiel. Lisez toutes les instructions avant l´utilisation. ATTENTION! Pour réduire le risque d´incendie, d´électrocution, ou de blessure: Ne l´utilisez que comme décrit dans ce manuel.

  • Page 7: Battery Installation

    Electrical components in this machine can be severely damaged if the batteries are not installed and connected properly. Batteries should be installed by your local Nilfisk-Advance dealer or by a qualified electrician. Your Whirlamatic comes from the factory with battery cables to connect three 12 volt batteries.

  • Page 8: Know Your Machine

    KNOW YOUR MACHINE ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ Hand Grip Battery Meter Power-ON Light Motor “Needs Service” Light Pad Pressure Meter Master Switch Pad Lower Lever Pad Lift Pedal Control Circuit Breaker Motor Circuit Breaker Pad Pressure Lever Cover Shroud Latch FORM NO. 56041227 - Whirlamatic™ UHSB 20 / UHSBD 20 - 7...

  • Page 9: Preparing The Machine For Use

    Install two dust collector bags (Nilfisk-Advance part number 56391185) on top of the dust control housing. Reach in from the sides of the machine and push the bag opening over each of the two tubes.

  • Page 10: Operating The Machine

    OPERATING THE MACHINE / AFTER USE ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ OPERATING THE MACHINE Turn the Master Switch (6) ON. The green Power-On Light (3) will come on. Model 56393500: Push the machine forward and twist the Hand Grips (1) to start the pad motor. Push the machine as slow as is necessary to obtain the desired shine.

  • Page 11: Maintenance

    A Red Light (4) on the control panel indicates when the carbon brushes in the pad drive motor need to be replaced. When this light glows, STOP USING THE MACHINE and contact your local Nilfisk-Advance distributor to have the brushes serviced.
  • Page 12 Nilfisk-Advance, Inc. 14600 21st Avenue North Plymouth, MN, 55447-3408 www.nilfisk-advance.com Phone: 800-989-2235 Fax: 800-989-6566 ©2000 Nilfisk-Advance, Inc., Plymouth, MN 55447-3408 Printed in the U.S.A.
