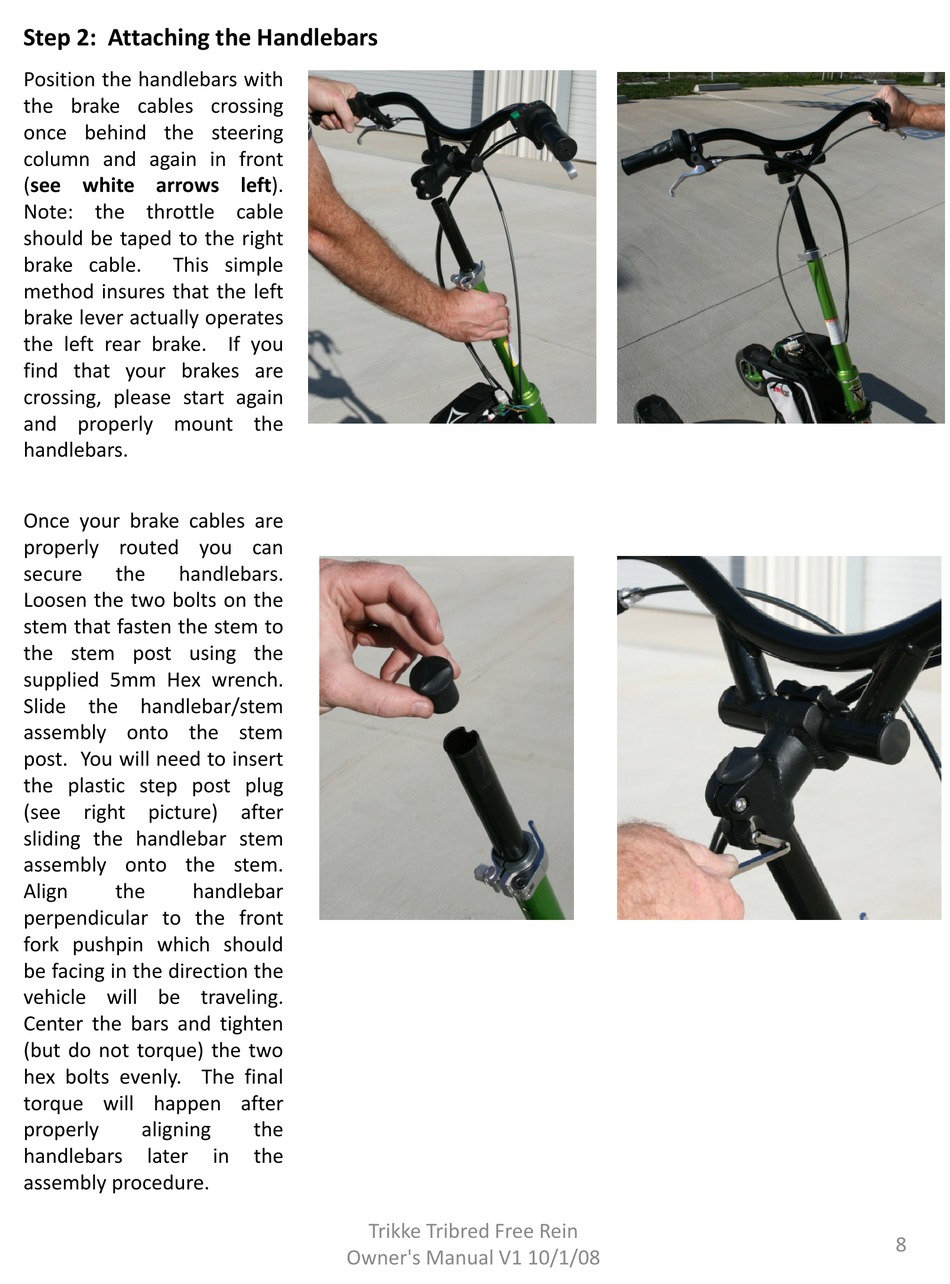

Step 2: Attaching the Handlebars
Position the handlebars with
the brake cables crossing
once behind the steering
column and again in front
(see white arrows left).
Note: the throttle cable
should be taped to the right
brake cable. This simple
method insures that the left
brake lever actually operates b k l t ll
the left rear brake. If you
find that your brakes are
crossing, please start again
and properly mount the
handlebars.
Once your brake cables are
properly routed you can
secure the handlebars.
Loosen the two bolts on the
stem that fasten the stem to
the stem post using the
supplied 5mm Hex wrench.
Slide the handlebar/stem
assembly onto the stem
post. You will need to insert
the plastic step post plug
(see right picture) after (see right picture) after
sliding the handlebar stem
assembly onto the stem.
Align the handlebar
perpendicular to the front
fork pushpin which should
be facing in the direction the be facing in the direction the
vehicle will be traveling.
Center the bars and tighten
(but do not torque) the two
hex bolts evenly. The final
torque will happen after
properly p p y aligning g g
handlebars later
assembly procedure.
t
the
in the
