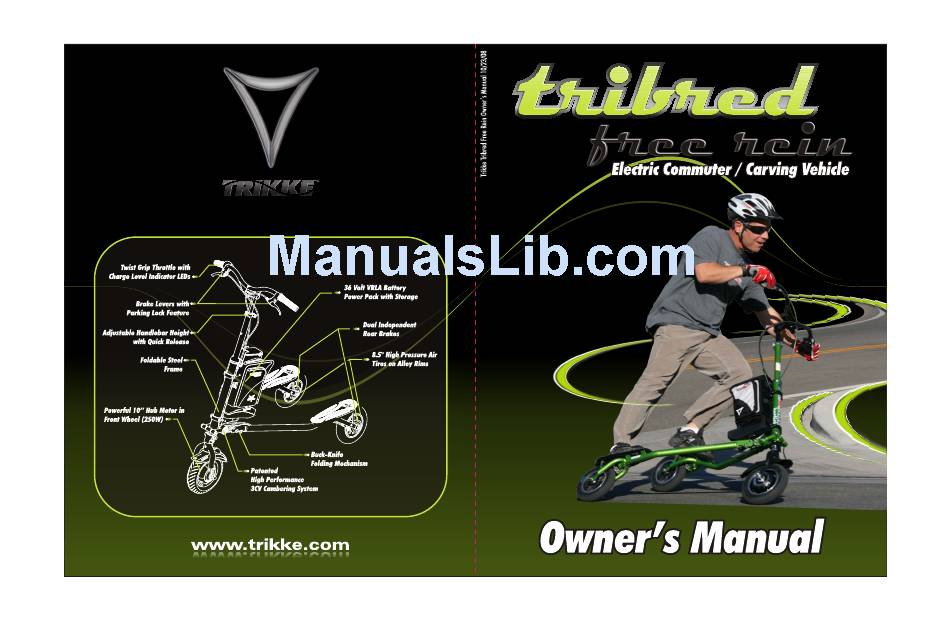

Summary of Contents for Trikke Tribred tree rein
- Page 3 Important Must Read Warnings, Safety Information and Riding Tips Thank you for purchasing a Trikke™ product. This owner’s manual is designed to help you make the most of your Free Rein vehicle. Instructions and warnings have been carefully prepared to make your y p p experience as safe and enjoyable as possible. Use common sense while riding and enjoy your new Free Rein.
- Page 4 THE FREE REIN IS A LOW POWER, ULTRA‐LIGHT SYSTEM AND ITS INTENDED USE IS TO ENHANCE THE CARVING EXPERIENCE OF THE TRIKKE CARVING VEHICLE AND ADD A POWER ASSIST. IT IS THE INTENTION THAT THE ELECTRIC MOTOR WILL BE USED IN COMBINATION WITH STANDARD CARVING PROPULSION.
- Page 5 Immediately stop riding if you suspect that any part of the vehicle is not functioning properly. Inspect the vehicle closely to confirm what the problem is. Contact your dealer or Trikke Tech, Inc. directly if you suspect that a malfunctioning or defective part is affecting its safe operation.
- Page 6 The various Free Rein vehicle components are labeled for your reference below. You may need to refer to these images to finish the assembly of your Free Rein. Brake Lever Brake Lever Handlebar Stem Steering Axle Handlebar Level Quick Handlebar Level Quick Release Right Arm Front Tube Rear Wheel Deck Cambering Axle Steering Stopper Left Arm Front Fork Folding Mechanism Front Wheel/Motor Cambering Joint Assembly Trikke Tribred Free Rein Owner's Manual V1 10/1/08...
- Page 7 TRIKKE TRIBRED FREE REIN POWER PACK Controller 12V‐9Ah Batteries TRIKKE TRIBRED FREE REIN POWER COMPONENTS Handgrips Throttle Brake Cable Power Pack Badge Brackets Brackets Stopper Bracket Motor Trikke Tribred Free Rein Owner's Manual V1 10/1/08...
- Page 8 If tightness If ti ht continues, us some spray oil like WD‐40 to lubricate the joints. The vehicle should be in its unfolded standing position in order to attach the handlebars handlebars. Trikke Tribred Free Rein Owner's Manual V1 10/1/08...
- Page 9 Center the bars and tighten (but do not torque) the two hex bolts evenly. The final torque will happen after properly aligning handlebars later assembly procedure. Trikke Tribred Free Rein Owner's Manual V1 10/1/08...
- Page 10 Loosen the two Hex bolts on the fork collar using the supplied 5mm wrench. Simply align the locking pin with the hole (arrow right and push the front fork onto the fork post until the top of the fork and the locking pin meet. Tighten the Hex bolts on the fork collar. Trikke Tribred Free Rein Owner's Manual V1 10/1/08...
- Page 11 (You may need to loosen the stem bolts to adjust the handlebar alignment) alignment). Now all you need to do is use the 5mm Hex wrench to lock the handlebar in place. Trikke Tribred Free Rein Owner's Manual V1 10/1/08...
- Page 12 Feed the connectors of the motor cable through the hole located in the top front center of the power pack assembly. Connect the throttle cable. Connect the two–pin wire connector from the throttle to the two–pin connector from the controller labeled “Throttle.” Trikke Tribred Free Rein Owner's Manual V1 10/1/08...
- Page 13 (Note: You may hear a pop sound when the connection is initially made. This is normal. ) Check the fuse in the small red box attached to the battery cable. Trikke Tribred Free Rein Owner's Manual V1 10/1/08...
- Page 14 You can also adjust the too far back as to inhibit proper folding. You can also adjust the brake levers’ angle for riding comfort and ease of use. Trikke Tribred Free Rein Owner's Manual V1 10/1/08...
- Page 15 After riding for several hours, check the tension of the brake cables and re‐adjust as needed to maintain maximum braking power as follows. If the brake levers depress all the way to the handgrip, repeat step 8. Trikke Tribred Free Rein Owner's Manual V1 10/1/08...
- Page 16 For safety of friends and others who will try your new Free Rein, it’s your responsibility to coach them about safe riding. Make sure they read and understand all warnings and safety information in this owner’s manual before riding. Trikke Tribred Free Rein Owner's Manual V1 10/1/08...
- Page 17 It is the painstaking research and development by Trikke Tech over the period of 12 years that has optimized the melding of this principle with a human powered vehicle. That propulsion technology is now combined with an electric motor assist on your Free Rein.
- Page 18 Safety Issue #1: Riding in Wet Conditions Because Trikke™ Tribred vehicles use electricity to power the hub motor, riding in wet conditions is not recommended. Always keep in mind that the Free Rein is an electric vehicle and as such common sense regarding safety around electricity should be practiced.
- Page 19 First time riders have a tendency to muscle the handlebars and throw their weight from side to side. What manually propels the Trikke carving vehicle forward is a combination of turning and leaning the steering column not jerking or thrusting the handlebars from side to side It is best to think in terms steering column, not jerking or thrusting the handlebars from side to side.
- Page 20 Stick with it You’ll get it The beauty of what timing. Stick with it. You ll get it. The beauty of what drives the Trikke carving vehicle’s design forward is the addition of one final ingredient: ROCKING THE STEERING COLUMN LEFT AND RIGHT AS YOU TURN THE WHEEL LEFT AND RIGHT.
- Page 21 Turning too hard can cause the vehicle to “Jack‐Knife” potentially causing you to fall. Take your time. Whatever you do, do not muscle the handlebars. Experienced riders use a light touch on the handlebars mostly for balance. Trikke Tribred Free Rein Owner's Manual V1 10/1/08...
- Page 22 The Trikke™ carving vehicle does slow down dramatically as you begin to climb a hill, requiring a new and physically challenging technique to be added to your growing Trikke repertoire.
- Page 23 Enjoy your new hybrid carving vehicle. Reminder: Reminder: Trikke carving vehicles are designed for forward Trikke carving vehicles are designed for forward propulsion only. Please refrain from riding backwards; in doing so there is a potential of bending your trailing arms and damaging your carving vehicle.
- Page 24 “O”) the switch will limit the speed of the E Kit to 12mph When turned off, the top speed of the E‐Kit itself is 17mph, though the Trikke CV can be accelerated to a faster top speed. Beginners should use the speed governor and limit their top speed to 12mph or less until they are comfortable enough to switch to the faster speed.
- Page 25 When this happens, there is approximately 1 mile of life left in the batteries. The operator should assist the Free Rein with the standard Trikke CV carving technique to conserve as much power as possible and head to the nearest charging station.
- Page 26 Release the brake lever while pushing the locking pin down so that the tension of the brake lever holds the locking pin in place. To release the locking pin, squeeze the brake lever toward the handle again and the locking pin will spring out of the locked position. Trikke Tribred Free Rein Owner's Manual V1 10/1/08...
- Page 27 2. To maximize the range of the Free Rein, use the 12mph speed governor, avoid climbing hills for extended periods of time, assist the vehicle as much as possible using standard carving propulsion, and use less throttle. Trikke Tribred Free Rein Owner's Manual V1 10/1/08...
-
Page 28: Maintenance
6. Once the tire is replaced, insert motor back in the fork with the motor cable on the right side – making sure to keep the motor cable behind the fork. There are two spacers for each side. The large spacers on the motor axle should be inside the fork. 7. Make sure that the motor axle is pushed firmly into the fork. The axle should be all the way to the top of the fork dropouts. 8. The small locking washers that have a small ledge go outside the fork. These washers help lock the axle to the fork. The ledge should fit inside the fork dropouts. 9. Tighten the nuts firmly with a 19mm wrench. 10. Use a zip tie to fasten the motor cable to the upper arm of the fork, on the right side and behind the fork. Rear Tires Rear Tires 1. Remove the rear wheel from the rear fork. The outer shell of the band brake will not need to be removed to replace the tire. 2. Be careful not to loose the wheel spacer that sits between the outer shell of the band brake and the drum of the band brake. (See next page for wheel removal) 3. It is recommended to use a nylon tire tool to remove the tire from the wheel. The nylon tool will avoid damaging the wheel rim and tire avoid damaging the wheel rim and tire. 4. Use soapy water to help the tire removal and tire assembly process. Trikke Tribred Free Rein Owner's Manual V1 10/1/08... - Page 29 1. Use allen wrenches to remove the wheel 2. Remove the wheel axle from the wheel. axle bolt from the wheel axle. The band brake will remain in place. 3. Remove the wheel from the rear fork. 2. Note the wheel spacer located between the wheel and the outer drum brake shell. Trikke Tribred Free Rein Owner's Manual V1 10/1/08...
-
Page 30: Warranty
Warranties are limited to repair and/or replacement of Free Rein and/or parts as judged by Trikke Tech Inc. at its sole discretion to be defective. It is the responsibility of the customer cover the shipping costs associated with any new parts or Freer eign replacement supplied by Trikke Tech Inc. -
Page 31: Troubleshooting
•Make sure the wiring from the controller to the motor is properly connected (colors match). • Make sure the wiring is not popping out of the connectors. •The motor cable may be damaged. Contact Trikke Tech Support for more assistance. •It’s normal pausing when low in charge. - Page 33 Trikke Accessories Trikke offers a range of custom accessories designed specifically for use with Trikke carving vehicles. All of our accessories and more can be found on our website at www.trikke.com through your Trikke dealer. Trikke Carrying Bags: Trikke carrying bags have been designed to custom fit each of the available model sizes.
- Page 34 Each weight will add 5lb (2.27kg) to your vehicle. combination of 1‐4 weights can be added. Safety Bell: Trikke Tech has developed a set of resistance weights that are specifically designed to attach easily to your carving vehicle. Each weight will add 5lb (2.27kg) to your vehicle. Any combination of 1‐4 weights can be added weights can be added.
- Page 35 2 star 456 wrench, T‐shirt **PLEASE SPECIFY ON YOUR ORDER NOTES WHAT SIZE GLOVES AND SHIRT** Water Bottle: This water bottle is a necessity for Trikke riders on the go. Fill it up with water, your favorite sports drink or anything else you might desire.
- Page 36 Useful Product Life Cycle Every Trikke™ Tribred Free Rein vehicle has a useful product life cycle. The length of that useful product life cycle will vary with the maintenance and care received over its useful product life, and the type and amount of use the Free Rein vehicle is subject to. The Free Rein should be checked periodically for indicators of stress and any other indicators of potential problems.
