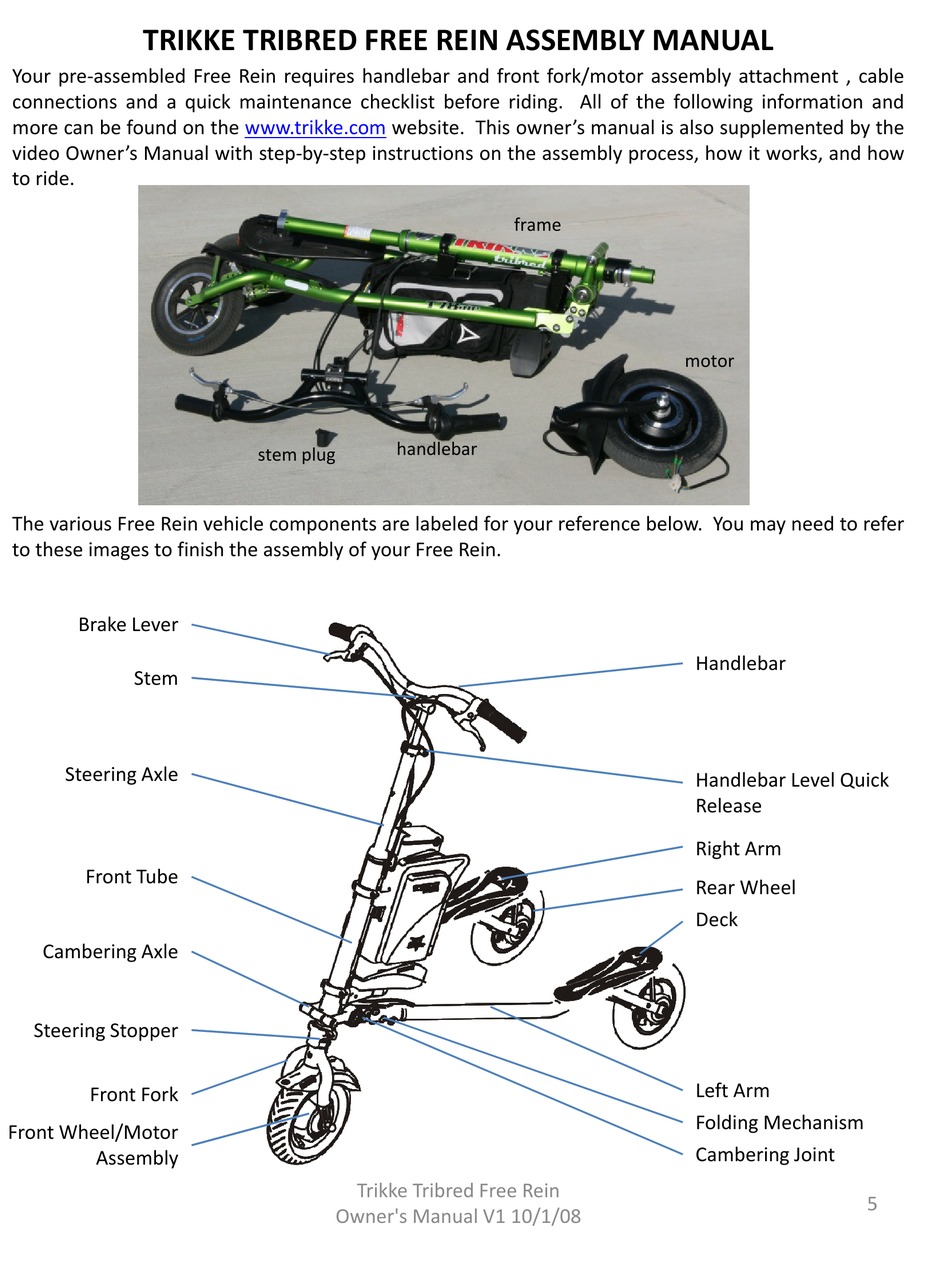

TRIKKE TRIBRED FREE REIN ASSEMBLY MANUAL
Your pre‐assembled Free Rein requires handlebar and front fork/motor assembly attachment , cable
connections and a quick maintenance checklist before riding. All of the following information and
more can be found on the
video Owner's Manual with step‐by‐step instructions on the assembly process, how it works, and how
to ride.
The various Free Rein vehicle components are labeled for your reference below. You may need to refer
to these images to finish the assembly of your Free Rein.
Brake Lever Brake Lever
Stem
Steering Axle g
Front Tube
Cambering Axle
Steering Stopper
Front Fork
Front Wheel/Motor
Assembly
www.trikke.com website. This owner's manual is also supplemented by the
handlebar
stem plug p g
Trikke Tribred Free Rein
Owner's Manual V1 10/1/08
frame
motor
Handlebar
Handlebar Level Quick Handlebar Level Quick
Release
Right Arm
Rear Wheel
Deck
Left Arm
Folding Mechanism
Cambering Joint
5
