Trikke eV5 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

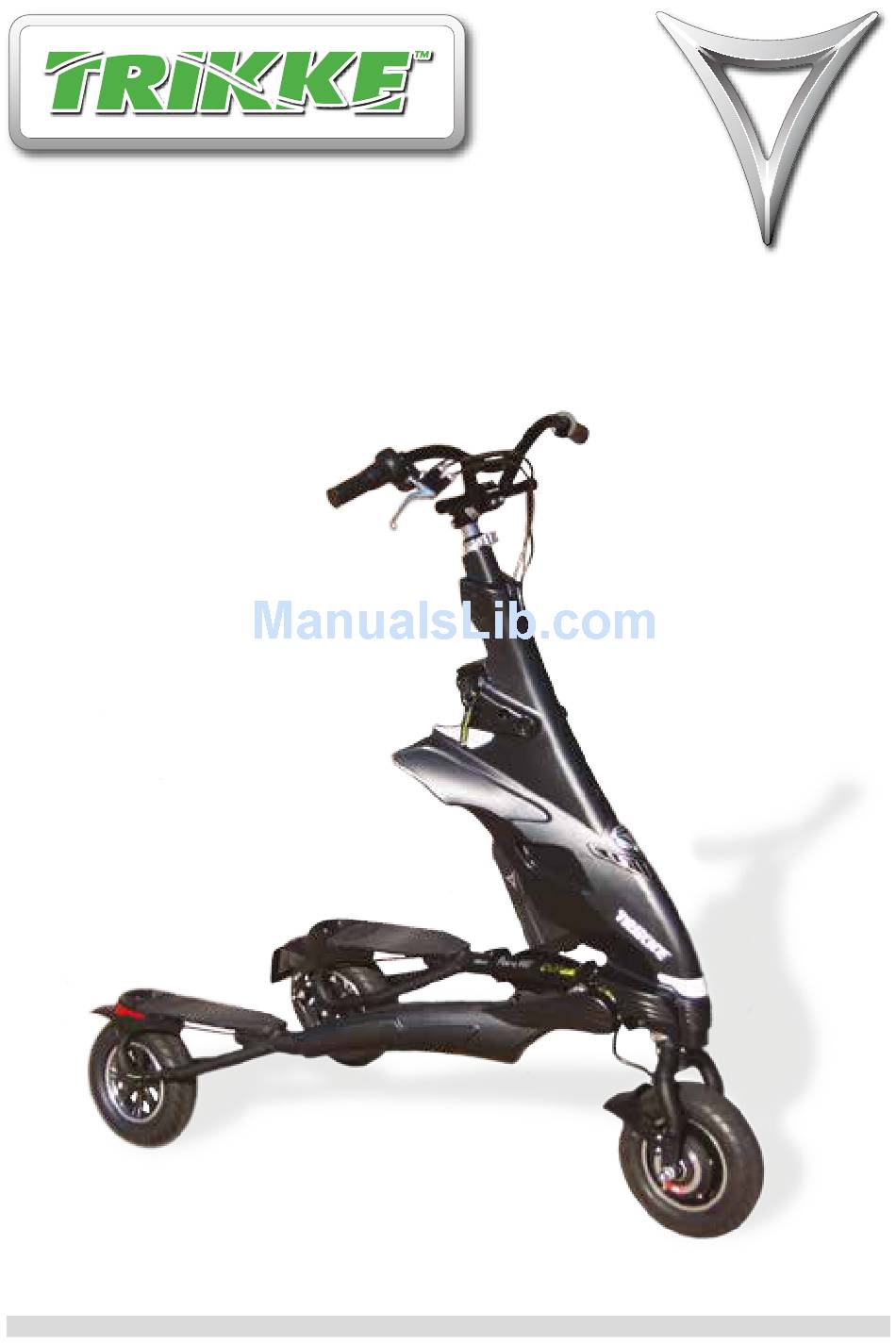

eV5
TRIKKE
OWNER MANUAL
Made in Holland

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eV5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Trikke eV5

Summary of Contents for Trikke eV5

  • Page 1 TRIKKE OWNER MANUAL Made in Holland...
  • Page 2 No portion of the text or images in this manual can be reproduced without the prior written permission of Trikke Europe Copyright © 2013 Trikke Europe All Rights Reserved 2013...
  • Page 3 In case this manual is not complete or damaged or not well understood, be sure to contact your Trikke dealer or representative to confirm you have read and understood all information completely before using your eV5.
  • Page 4 Most inquiries can be addressed to the authorized dealer, distributor and service center. You can also find addi- tional information on our website with product information, accessories, videos, photos and more. If you can not find a replacement part on our website, please contact Trikke Europe via e-mail at tsp@trikke-europe.com. Trikke Europe...

  • Page 5: Table Of Contents

    4.1 Battery ................................19 4.2 Handlebar ..............................20 4.3 Frame ................................21 4.4 Tires ................................. 21 4.5 Brakes ................................24 4.6 Fairings and skirts ............................25 4.7 Maintenance schedule ..........................26 5. Warnings, safety information and riding tips ................29 Warranty ............................... 33 TRIKKE eV5 Owner Manual March 2013...

  • Page 6: Overview

    Vehicle Identification Number (VIN) Engraved in front structure underneath fairings. fig. 1 TRIKKE eV5 Owner Manual March 2013...

  • Page 7: Specifications

    48V 350W brushless geared hub motor with rider’ s weight, wind, riding style, tire inflation. Ranges listed free-wheel clutch above depict an average with a rider weighing 80kg. fig. 2 71cm 45cm 64cm 127cm 34cm 71cm TRIKKE eV5 Owner Manual March 2013...
  • Page 8 TRIKKE eV5 Owner Manual March 2013...

  • Page 9: Preparing The Ev5 For Your First Ride

    Lay the box on a flat and dry surface. Lift the lid and put aside. Remove loose interior packing from the box and take out the eV5. Remove all protection and check all contents. The box contains: 1 x Trikke eV5 + manual 1 x battery with 2 keys + manual 1 x toolset 1 x charger 2.2 Unfolding and folding the frame...

  • Page 10: Mounting The Handlebar

    Folding: position yourself between the two arms of the eV5 holding the front structure with one hand. With the other hand, pull back the folding knobs on both sides into the unlocked position . Start folding the frame (fig. 7) and then release the levers from the unlocked position .

  • Page 11: Installing The Battery

    Be careful to not drop the battery on the ground during installation and removal. Battery can remain either installed to the eV5 or removed for charging. fig. 14 TRIKKE eV5 Owner Manual March 2013...
  • Page 12 TRIKKE eV5 Owner Manual March 2013...

  • Page 13: Operating Your Ev5

    For the safety of friends and others who will try your new eV5 it is your responsibility to guide them how to ride safely. Make sure you have read and understood all warnings and safety information contained in this owner’s manual before riding.

  • Page 14: Accelerating

    “1” (Econo), speed will be limited to 20 km/h. When set to “2” (Express), the maximum speed is 25km/h. The eV5 can travel faster on descents because it has a freewheel inside the motor. Beginners should use the speed control and limit their speed to 20 km/h or less, until they feel safe to operate at higher speeds.

  • Page 15: Riding

    The best position for an eV5 rider depends on the width of the lane and the speed. eV5 riders should ride far enough from the curb, to travel in a straight line and avoid sewer grates, potholes, debris and the doors of parked cars.
  • Page 16 Because an eV5 is smaller and more vulnerable than most other (motor) vehicles, eV5 riders must ensure that all moves can be made safely, even if the rider has the right of way. In collisions, eV5 riders are at greater risk.

  • Page 17: Taking Turns

    Always maintain firm control over the handlebar with both hands, never drive with just one hand or no hands. The eV5 requires both hands on the handlebar at all times.

  • Page 18: Parking, Locking

    The eV5 should be turned OFF when not in use to prevent accidental activation of the vehicle. The eV5 will shut off automatically after 5 minutes of inactivity. The eV5 has parking brakes to keep it still and balanced. In the manual brake lever there is a pin that locks the actuated lever (fig.

  • Page 19: Storage

    When storing your eV5 for a longer period of time, take the following steps: take the battery out and store it in a dry place at room temperature. Release pressure from the tires to 20 psi. Store the eV5 in a dry and dust free environment, folded or unfolded, laying flat or standing on the rear wheels with the front wheel resting against a wall.
  • Page 20 TRIKKE eV5 Owner Manual March 2013...

  • Page 21: Inspection, Maintenance And Adjustments

    Look for signs of burning or leaking. See to it regularly that the red light of the charger after fully charging the battery turns green. Check the SOC display on top of the battery to see 100% charge. Do not ride your eV5 when the SOC of the battery indicates 0%, it needs to be charged first! Attempts to ride with empty battery may cause damage! Fix all irregularities before you ride.

  • Page 22: Handlebar

    You can also adjust the angle of brake levers for comfort of use (but do not position too far back to avoid interference when folding the eV5). fig. 29 TRIKKE eV5 Owner Manual March 2013...

  • Page 23: Frame

    The front and rear tires of the eV5 come with lower pressure from the factory, for transport reasons. You will have to adjust tire pressure according to the weight of the rider and usage preferences. Do not exceed the recommended tire pressure.
  • Page 24 Use soapy water or grease applied to the tire bead and rim to help in the process of removing and mount- ing tires. Pay attention to the direction of rotation of the tire to not mount it backwards. TRIKKE eV5 Owner Manual March 2013...
  • Page 25 (tummy) to the back, to allow sufficient length for turning the front wheel without stretching and / or damaging the cable (fig. 33) zip ties ‘slack to the back’ motor cable inner side of the fork fig. 33 TRIKKE eV5 Owner Manual March 2013...

  • Page 26: Brakes

    Before adjusting disc brakes, squeeze the brake levers a few times to stretch the brake cable and seat the brake pads. cable adjust brake calliper brake rotor/disk fig. 34 fig. 35 outside inside 5mm hex wrench adjust 2.5mm hex wrench 3mm hex wrench lock/unlock adjust fig. 36 fig. 37 TRIKKE eV5 Owner Manual March 2013...

  • Page 27: Fairings And Skirts

    With use, and consequent increase in temperature, the disc tends to straighten itself). 4.6 Fairings and skirts Inspection Check fairings and skirts for cracks and/or other damage. Check if screws fig. 40 and bolts are fixed. Fix or remove before you ride. TRIKKE eV5 Owner Manual March 2013...
  • Page 28 4.7 Maintenance We recommend to have your eV5 serviced twice a year by an authorized Trikke Service Point. TRIKKE eV5 Owner Manual March 2013...

  • Page 29: Warnings, Safety Information And Riding Tips

    • Be aware of low objects. You are taller than you think when you ride the eV5. Be ready to duck for tree branches, street signs, etc.. •...
  • Page 30 Do not try these tricks, or you may lose control and crash, causing serious injury or other damage. • The eV5 is an electric vehicle and as such there is potential for shock or fire, if the electrical system is tam- pered with or exposed to conditions of high humidity.
  • Page 31 COMMON SENSE AND EDUCATION ARE VERY IMPORTANT IN THE OPERATION OF YOUR eV5. DRIVERS SHOULD USE COURTESY WHEN USING AND SHARING THE ROADS AND SIDEWALKS. PEDESTRIANS ALWAYS HAVE THE RIGHT OF WAY. WHEN RIDING ON PUBLIC ROADWAYS, KEEP ON THE RIGHT SIDE OF THE ROAD AND REDUCE YOUR CARVING ACTION TO MINIMIZE CAUSING CONFUSION WITH THE OTHER DRIVERS ON THE SAME ROUTE.

  • Page 32: Warranty

    Limited Warranty Trikke eV5 Warranty 1.1 If during the warranty period the product is faulty because of construction and / or material faults, Trikke Europe or any other Trikke Europe designated dealer of the product into the Guarantee Area will, without charge for labor or parts to charge, in its sole discretion repair or replace the product or defective parts under the conditions below.
  • Page 33 350 charges and the following calculation: (Max. charges - number of charges) / max. charges = n% The number of charges can be determined technically by Trikke Europe and thus the residual value can be determined. Example: If after 200 charges the battery is replaced, the “residual value” compensation. The residual value = 350-200 = 150/350 = 42%.
  • Page 34 Liability 6.1 A warranty claim honored by Trikke Europe does not mean that Trikke Europe also accepts liability for any damages. The liability of Trikke Europe never extends further than stated in this warranty. Any liability for consequential damages Trikke Europe is explicitly excluded. The provisions of this clause shall not apply if and insofar as the result of a mandatory legal provision.
  • Page 37 • glove box • cargo net • towing trailer Electrical accessories: • spare battery • spare charger • car charger (from12V dc) Trikke basic spare parts (wheels & brakes) • hand grips • brake pads • tires • tubes For more information: visit your dealer or http://www.trikke-europe.com TRIKKE eV5 Owner Manual March 2013...
  • Page 38 Other products by Trikke TRIKKE eV5 Owner Manual March 2013...
  • Page 39 Trikke SKKI With the Trikke SKKI, the rider simply leans the han- dlebars in the direction of the turn and the three ski blades draw the curves. It’s much easier to learn com- paring to skis or snowboard, and beginners are always going to have fun at the first attempt.
  • Page 40 Your Trikke dealer: URBAN MOBILITY...
