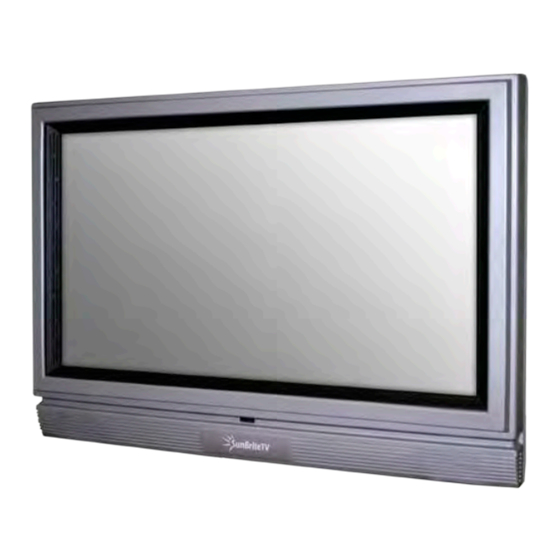

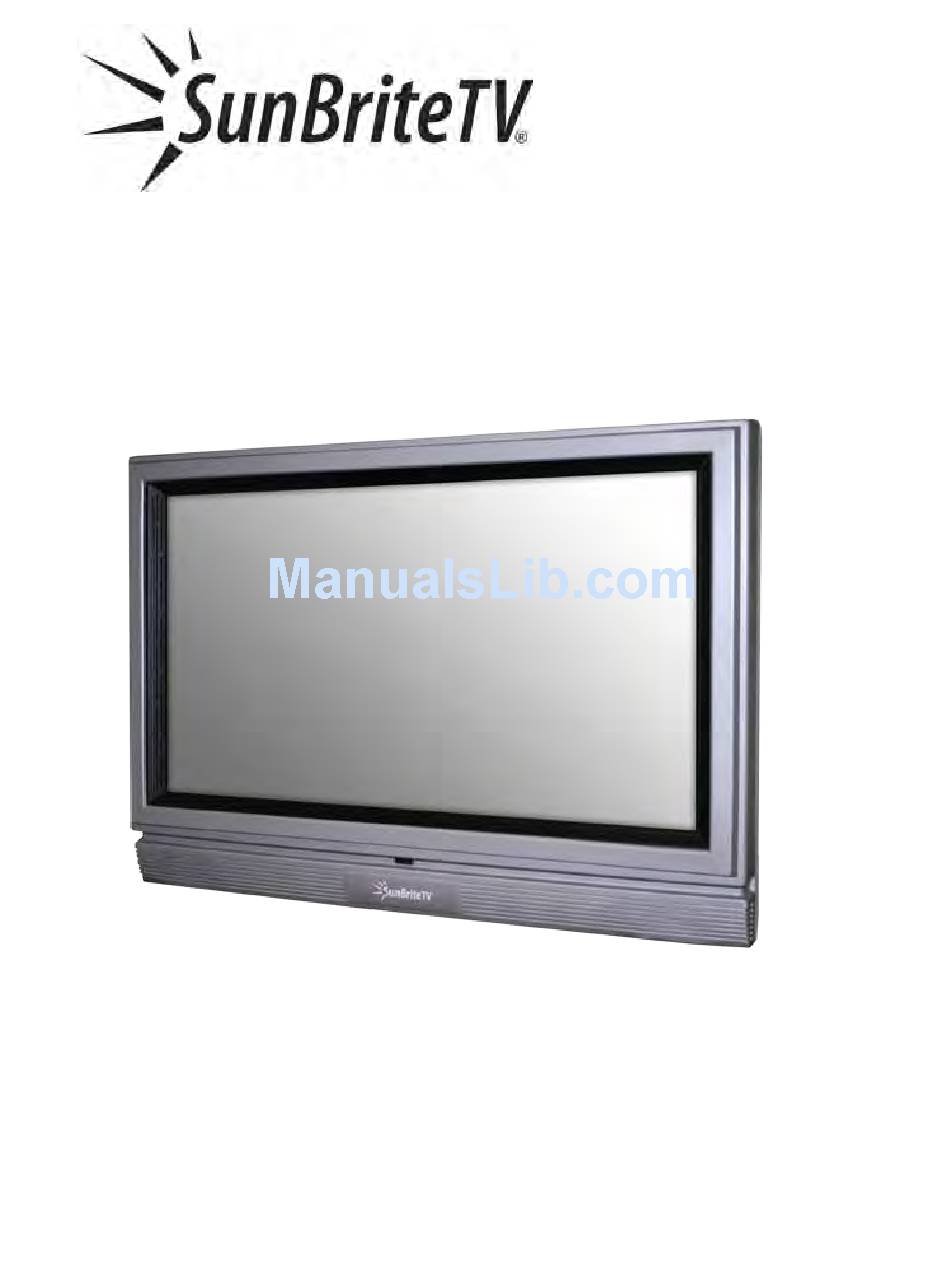

- Page 1 All-Weather Outdoor LCD Television Operator’s Manual Model 3230HD Revision 3230HD-T-101105...
-
Page 2: Important Safety Instructions
Important Safety Instructions Dear SunBriteTV Customer: Congratulations on your ownership of the SunBriteTV Model 3230HD. This product is designed as a weatherproof LCD television that can be installed outdoors. To ensure safety and minimize mechanical malfunctions of your product, please read the Important Safety Instructions carefully before using this product. -
Page 3: Fcc Statement
Power source: SunBriteTV must operate on a power source indicated on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company. When using the TV outdoors, you must use a GFI- protected AC outlet with “in-use”... - Page 4 However, it is not designed to withstand pressure washers, high-pressure water jets, or hurricane-type weather. Do not service sunBriteTV yourself: Removal of the television screen cover may expose you to high voltage or other dangerous risks. Refer all servicing to a qualified service professional. Warranty will not be honored if you service the unit yourself.
-
Page 5: Table Of Contents
Lock Menu Channel Menu Trouble Shooting Care of SunBriteTV Specifications VGA Timing Codes Features Information and Instructions Internal Thermostatically-Controlled Heater Programming Other Manufacturers’ Universal Remote Control Devices SunBriteTV Pixel Quality Policy SunBriteTV Model 3230HD Operator’s Manual Page 5 Page 5... -
Page 6: Supplied Accessories
Supplied Accessories Unpacking After unpacking the SunBriteTV television, please make sure that the following items are included in the carton and that they are in good condition. If items are damaged or missing, contact your dealer immediately. SunBriteTV LCD Television Model 3230HD Remote Control with Batteries Operator’s Manual... - Page 7 8. Replace the Table-top Stand Mounting screws to attach the Table-top Stand to the TV and secure tightly (Figure 4). Figure 4 9. Follow procedures 4 thru 8 to install the other Table-top Stand. SunBriteTV Model 3230HD Operator’s Manual Page 7...
-
Page 8: Rear Panel Internal Connect Source
TV Installation – Rear Panel Internal Connect Source WARNING: Do not connect the power source before making connections. Internal Connect Source The Internal Connect Source allows you to easily connect to the Audio, Video, S-Video, SVGA, HDMI, Audio Out, and RF connectors. The Internal Connect Source is inside the Cable Cover located on the back of the unit (Figure1). -
Page 9: Rear Panel Connections
Please Note: This TV features a power-saving function that will turn off the TV automatically after 15 minutes of idling on a connection with no signal. This feature is present on all connections. SunBriteTV Model 3230HD Operator’s Manual Page 9... - Page 10 TV Installation – Rear Panel Connections Green Blue Yellow Green White Page 10...
- Page 11 TV Installation – Rear Panel Connections Switching Sources for Ports: Model 3230HD offers several options when connecting your devices to the TV. The chart below will help you understand which source you switch to for each of the ports. COnneCTing TO an anTenna...
- Page 12 TV Installation – Rear Panel Connection Diagrams COnneCTing TO an anTenna--(Continued) Connecting to Cable or Antenna through VCR Please Note : Some VCRs must be turned On before its output will have a signal to the TV. Please consult your VCR manual for further reference.
- Page 13 Reference the DVD player’s manual to make sure the DVD player is configured to output correctly to the TV. 3. This TV will turn off automatically if there’s no signal present for more than 15 minutes. SunBriteTV Model 3230HD Operator’s Manual Page 13...
- Page 14 Connect the red color connector to both your set-top box and Component 1’s red connector port off the back of your TV to the SunBriteTV’s MODEL 5510HD supports SONY’s universal right side of your green, blue, red component connection. remote code. Please look up SONY’s codes in your universal remote’s hand book.
- Page 15 TV. box is configured to output correctly to the TV. SunBriteTV’s MODEL 5510HD supports SONY’s universal SunBriteTV’s MODEL 5510HD supports SONY’s universal remote code. Please look up SONY’s codes in your universal remote code.
- Page 16 TV Installation – Rear Panel Connection Diagrams COnneCTing TO an eXTernal amPliFier Or amPliFieD sPeaKers Connecting with Coaxial sPDiF Digital (Best) Connecting with rCa audio analog (good) 1. Make sure the power of the TV and your receiver is turned 1.
- Page 17 3. If HDMI 1 is already occupied, please use HDMI 2 as your connection port and switch source to HDMI 2. 4. This TV will turn off automatically if there’s no signal present for more than 15 minutes. SunBriteTV Model 3230HD Operator’s Manual Page 17...
- Page 18 TV Installation – Rear Panel Connection Diagrams COnneCTing TO game COnsOles (Continued) 1. Make sure the power of the TV and your Xbox 360 is turned off. 2. Obtain the Xbox 360 Component Cable. Connect the green color For the Xbox™ connector to Component 1’s green connector port on the back of For the Playstation 3 the TV.
-
Page 19: Connecting The Power Cord
Vol+ /Vol- These buttons increase or decrease the volume. If a sub-menu is active, pressing these buttons will move the selection left or right. Front Panel IR Sensor SunBriteTV Model 3230HD Operator’s Manual Page 19... -
Page 20: Remote Control Guide
The functionality of the remote control is under warranty for one year. If the remote control malfunctions within the one-year warranty period, replace the batteries with new long-life alkaline batteries. If the problem is not solved with new batteries, contact the SunBriteTV Customer Support Team. SunBriteTV will repair or replace the remote control at SunBriteTV’s option. - Page 21 On-Screen Display Controls SunBriteTV Model 3230HD Operator’s Manual Page 21...
-
Page 22: Adjusting On-Screen Displays
On-Screen Display Menu - Picture Menu Picture: audio: Time: setup: lock: Channel: This function This menu This menu This menu This menu This menu changes manages manages the manages manages manages Channel the picture the audio time functions Language, parental functions such settings for all settings such... -
Page 23: Audio Menu
The language code must be programmed for this option to be available. If there is no selection it has not been programmed for this model. Note: SPDIF Type and Audio Language are available only in DTV. SunBriteTV Model 3230HD Operator’s Manual Page 23... -
Page 24: Time Menu
Adjusting On-Screen Displays – Time Menu Time menu sleep Timer 1. Press qp buttons to move the cursor to the item to be selected. Press qp buttons to Sleep Timer, then use t u 2. Press u buttons to make the desired adjustments. buttons to select the sleep timer. -
Page 25: Setup Menu
Press qp buttons and then press OK button to perform the Auto Adjust function that automatically adjusts the available options for the best viewing configuration. SunBriteTV Model 3230HD Operator’s Manual Page 25... - Page 26 Adjusting On-Screen Displays – Setup Menu Closed Caption From the Setup Menu, press qp buttons to Closed Caption, then press u button to enter the Closed Caption submenu list shown below. Closed Caption submenu Basic selection Press qp buttons and then use t u buttons to select current zoom mode, the options are CC1 / CC2 / CC3 / CC4 / TEXT1 / TEXT2 / TEXT3 / TEXT4.
-
Page 27: Lock Menu
US / Canada / RRT setting / Reset RRT will be grayed Press the u button to enter the submenu list to set the US rating functions. (US Menu is on the next page.) SunBriteTV Model 3230HD Operator’s Manual Page 27... - Page 28 Adjusting On-Screen Displays – Lock Menu Us menu From the US Menu, press qp buttons to the TV function. Press u button to enter the submenu shown below. TV menu TV-y: For all children TV-y7: For children above 7 TV-g: For anyone TV-Pg: Children can watch with guardian TV-14: Need parent guide TV-ma: Only for adult...
- Page 29 Press the t u button to select one of E / C / C8+ / G / PG / 14+ / 18+. Canada French Press the t u button to select one of E / G / 8ans+ / 13ans+ / 16ans+ / 18ans+. SunBriteTV Model 3230HD Operator’s Manual Page 29...
-
Page 30: Channel Menu
Adjusting On-Screen Displays – Channel Menu Channel menu 1. Press qp buttons to move the cursor to the item to be selected. 2. Press t u buttons to make the desired adjustments. 3. When you are satisfied with your adjustments, press MENU or EXIT to exit the main menu. - Page 31 Press the t u button to select the channel No. Channel label Press the u button to enter the submenu, where you can edit the channel label. DTV signal This item shows current DTV signal strength. SunBriteTV Model 3230HD Operator’s Manual Page 31...
-
Page 32: Trouble Shooting
Trouble Shooting The following table contains the common problems and the solutions to these problems. Please check this list before you contact the technicians. Page 32... -
Page 33: Care Of Sunbritetv
For best results, use a damp, lint-free cloth with mild soap. 2. When the TV is not in use, keep it covered with the sunBriteTV Outdoor Dust Cover The fitted dust cover is constructed with weatherproof 4-ply polypropylene UV protection fabric that protects the window from direct and indirect sunlight, and keeps wind-blown objects from scratching the surface of the window. -
Page 34: Specifications
Specifications specifications LCD Screen 31.5-inch diagonal TFT Active Matrix sunBriteTV model 3230HD Resolution 1366 x 768 (all dimensions are in inches) Aspect Ratio 16:9 Front View side View Contrast Ratio 3000:1 H/V Viewing Angle by 178 Response Time 6.5 milliseconds... -
Page 35: Features Information And Instructions
Your SunBriteTV will be replaced under warranty if it meets one of the following criteria: —A total of 7 defective pixels, including both bright dots and dark dots are present. (Model 3230HD LCD TV screen has over a million pixels.) —2 or more pairs of adjacent bright dots are present. - Page 36 Page 36...
