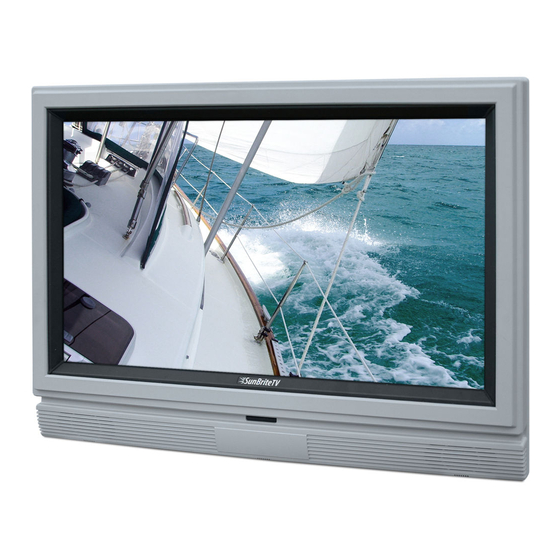

- Page 1 All-Weather Outdoor LCD Television Operator’s Manual Model 3260HD Revision 3260HD -318C-120801 PN: M32-004-01-C...
-
Page 2: Important Safety Instructions
Electronic Industries Alliance: www.eia.org. Disclaimer: While SunBriteTV LLC intends to make this manual accurate and complete, we do not make claims that the information contained within covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. - Page 3 Power Source: SunBriteTV must operate on a power source indicated on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company. When using the TV outdoors, you must use a GFI- protected AC outlet with “in-use”...
- Page 4 However, it is not designed to withstand pressure washers, high-pressure water jets, or hurricane-type weather. Do not service SunBriteTV yourself: Removal of the television screen cover may expose you to high voltage or other dangerous risks. Refer all servicing to a qualified service professional. Warranty will not be honored if you service the unit yourself.
-
Page 5: Table Of Contents
Specifications Features Information and Instructions Extreme Climate Warning Programming Other Manufacturers’ Universal Remote Control Devices SunBriteTV Pixel Quality Policy Appendix A - RS232 Cable Pinout Appendix B - RS232 Control Codes SunBriteTV Model 3260HD Operator’s Manual Page 5 Page 5... -
Page 6: Supplied Accessories
Supplied Accessories Unpacking After unpacking the SunBriteTV television, please make sure that the following items are included in the carton and that they are in good condition. If items are damaged or missing, contact your dealer immediately. SunBriteTV LCD Television Model 3260HD... -
Page 7: Tv Installation
LCD panel, and will not cause damage to the screen. Either turn the screen away from the sun, or apply shade to the TV, and the dark areas will quickly disappear. SunBriteTV Model 3260HD Operator’s Manual Page 7... -
Page 8: Rear Panel Internal Connect Source
TV Installation – Rear Panel Internal Connect Source WARNING: Do not connect the power source before making connections. Internal Connect Source The Internal Connect Source allows you to easily connect to the Audio, Video, S-Video, SVGA, HDMI, Audio Out, and RF connectors. The Internal Connect Source is inside the Cable Cover located on the back of the unit (Figure1). -
Page 9: Rear Panel Connection Diagrams
This connection uses coaxial RF cable. For over- the airwave digital stations please check http://www.antennaweb.org. 13. ANALOG AUDIO OUT (Variable) - Used to connect headphones, stereo receivers and amplified speakers via a 3.5mm headphone jack. SunBriteTV Model 3260HD Operator’s Manual Page 9... - Page 10 TV Installation – Rear Panel Connections Cable Descriptions: Connection Descriptions: Green Blue Yellow Green White Page 10...
- Page 11 2. The TV’s tuner is designed for HDTV therefore requires a stronger signal than normal TVs. If you cannot achieve that signal level with your antenna or cable, the TV might lose picture or sound. SunBriteTV Model 3260HD Operator’s Manual Page 11...
- Page 12 TV Installation – Rear Panel Connection Diagrams CONNECTINg TO AN ANTENNA--(Continued) Connecting to Cable or Antenna through VCR Please Note : Some VCRs must be turned On before its output will have a signal to the TV. Please consult your VCR manual for further reference.
- Page 13 Reference the DVD player’s manual to make sure the DVD player is configured to output correctly to the TV. 3. This TV will turn off automatically if there’s no signal present for more than 15 minutes. SunBriteTV Model 3260HD Operator’s Manual Page 13...
- Page 14 TV. This model supports SONY’s universal remote code. If SunBriteTV is not listed, please look up SONY’s codes in your universal remote’s hand book. This TV will turn off automatically if there’s no signal present for more than 15 minutes.
- Page 15 This model supports SONY’s universal remote code. If box is configured to output correctly to the TV. SunBriteTV is not listed, please look up SONY’s codes in your universal remote’s hand book. This model supports SONY’s universal remote code. If SunBriteTV is not listed, please look up SONY’s codes in...
- Page 16 TV Installation – Rear Panel Connection Diagrams CONNECTINg TO AN EXTERNAl AMPlIFIER OR AMPlIFIED SPEAKERS Connecting with Coaxial SPDIF Digital (Best) Connecting with RCA Audio Analog (good) Make sure the power of the TV and your receiver is turned Make sure the power of the TV and your receiver is turned off. off.
-
Page 17: Ir Emitter Installation
* Neither the emitter or control block are supplied by SunBriteTV. See instructions that come with your IR IR Emitter Tie-Down Block Emitter and control block to determine how to make the connections. -
Page 18: Side Panel And Front Panel Controls
TV Installation - Connecting the Power Cord Connecting the Power Cord WARNING: TV AND GFCI RECEPTACLE MUST BE INSTALLED AT LEAST 5 FEET AWAY FROM STANDING WATER , SUCH AS (BUT NOT LIMITED TO) A POOL OR SPA. Connect the power cord after you have made connections to your video equipment. Connect the power cord to a GFCI-protected AC outlet with “in-use”... -
Page 19: Remote Control Guide
The functionality of the remote control is under warranty for one year. If the remote control malfunctions within the one-year warranty period, replace the batteries with new long-life alkaline batteries. If the problem is not solved with new batteries, contact the SunBriteTV Customer Care Center. SunBriteTV will repair or replace the remote control at SunBriteTV’s option. -
Page 20: On-Screen Display Controls
On-Screen Display Functions Via the Remote Control Via the TV Side Panel Buttons Adjusting the On Screen Display (OSD) from the Remote Adjusting the On Screen Display from the TV Side Panel Control Buttons Menu - This button opens the OSD CH + p - This button changes the channel to a higher number and also functions the up direction of OSD buttons to move the cursor to the item to be... -
Page 21: Picture Menu
Wide/Zoom/Cinema/Normal mode Press qp buttons to Noise Reduction, then use t u to select Off/Weak/Middle/Strong/Auto Press qp buttons to Adaptive Contrast, then use t u to select on/off to decide the function operation. SunBriteTV Model 3260HD Operator’s Manual Page 21... -
Page 22: Sound Menu
Adjusting On-Screen Displays – Sound Menu Sound Menu 1. Press qp buttons to move the cursor to the item to be selected. Sound Mode Allows you to you choose your sound preferences. 2. Press t u buttons to make the desired adjustments. Press qp buttons to Sound Mode, then use t u to 3. -
Page 23: Setting Menu
Note: VGA settings may not be available on this TV. Restore Default Press qp buttons to Restore Default, then use u button to the Restore Default control panel. SunBriteTV Model 3260HD Operator’s Manual Page 23... - Page 24 Adjusting On-Screen Displays – Setting Menu Parental Control Change Password The Parental Control Menu allows you to change programming options. To change settings, you must enter a password. Press qp buttons to move the cursor to the Enter Password selection. Press “Enter Password”...
- Page 25 From the US Menu, press qpbuttons to block or unblock the following ratings: PG-13 NC-17 N/A (None) Note: The curser is set to rest on the N/A rating. As you press the p button, you will automatically block each rating. SunBriteTV Model 3260HD Operator’s Manual Page 25...
- Page 26 Adjusting On-Screen Displays – Setting Menu Parental Control - Canada Menu From the Parental Control submenu, press qp buttons to Canada, then press u button for the Canada submenu. Canada Menu Canada English Press the t u button to select one of C / C8+ / G / PG / 14+ / 18+.
- Page 27 Press qp buttons to select Transparency, and then press t u buttons to select 0% / 25% / 50% / 75% / 100% Menu language Press qp buttons to select Menu Language, and then press t u buttons to select English/French/Spanish SunBriteTV Model 3260HD Operator’s Manual Page 27...
-
Page 28: Channel Menu
Adjusting On-Screen Displays – Channel Menu Channel Menu 1. Press qp buttons to move the cursor to the item to be selected. 2. Press t u buttons to make the desired adjustments. 3. When you are satisfied with your adjustments, press MENU or EXIT to exit the main menu. - Page 29 Press the t u button to select the channel No. Channel label Press the u button to enter the submenu, where you can edit the channel label. DTV Signal This item shows current DTV signal strength. SunBriteTV Model 3260HD Operator’s Manual Page 29...
-
Page 30: Trouble Shooting
This is common to all LCD screens used in display and television products, and is not specific to SunBriteTV. For more information, Picture is too dark Adjust your contrast, brightness and lamp settings from the OSD Menu see SunBriteTV’s Pixel Quality Policy in this manual. -
Page 31: Care Of Sunbritetv
A “special outdoor formula” LCD Cleaning Kit is now available and can be ordered from SunBriteTV. 2. When the TV is not in use, keep it covered with the SunBriteTV Outdoor Dust Cover: The fitted dust cover is designed to protect the LCD panel from the harmful UV rays from direct sunlight, and keeps wind- blown objects from scratching the surface of the panel. -
Page 32: Specifications
Specifications Specifications LCD Screen 31.5-inch diagonal TFT Active Matrix SunBriteTV Model 3260HD Resolution 1366 x 768 (All dimensions are in inches) Aspect Ratio 16:9 Front View Side View Contrast Ratio 3000:1 Frame Rate 60 Hz H/V Viewing Angle by 178 Response Time 6.5 milliseconds... -
Page 33: Features Information And Instructions
Programming Other Manufacturers’ Universal Remote Control Devices When programming a DirectTV, local cable universal remote control or Control system, you may find that SunBriteTV may not be on the list of TV manufacturers. If that is the case, Model 3260HD supports SONY’s universal remote code. Direct TV is 10000. -
Page 34: Appendix A - Rs232 Cable Pinout
Appendix A - RS232 Control Cable Pinout Page 34... -
Page 35: Appendix B - Rs232 Control Codes
Appendix B - RS232 Control Codes RS 232 Control codes SunbriteTV Com Spec: 9600,8,1,n Function ASCII Command Received Response Command Executed Response from TV to control system from TV to control system Model Class ID [ESC]? 1B 3F [B3220AHD-X.XX] or [B4610AHD-X.XX]... - Page 36 Page 36...
