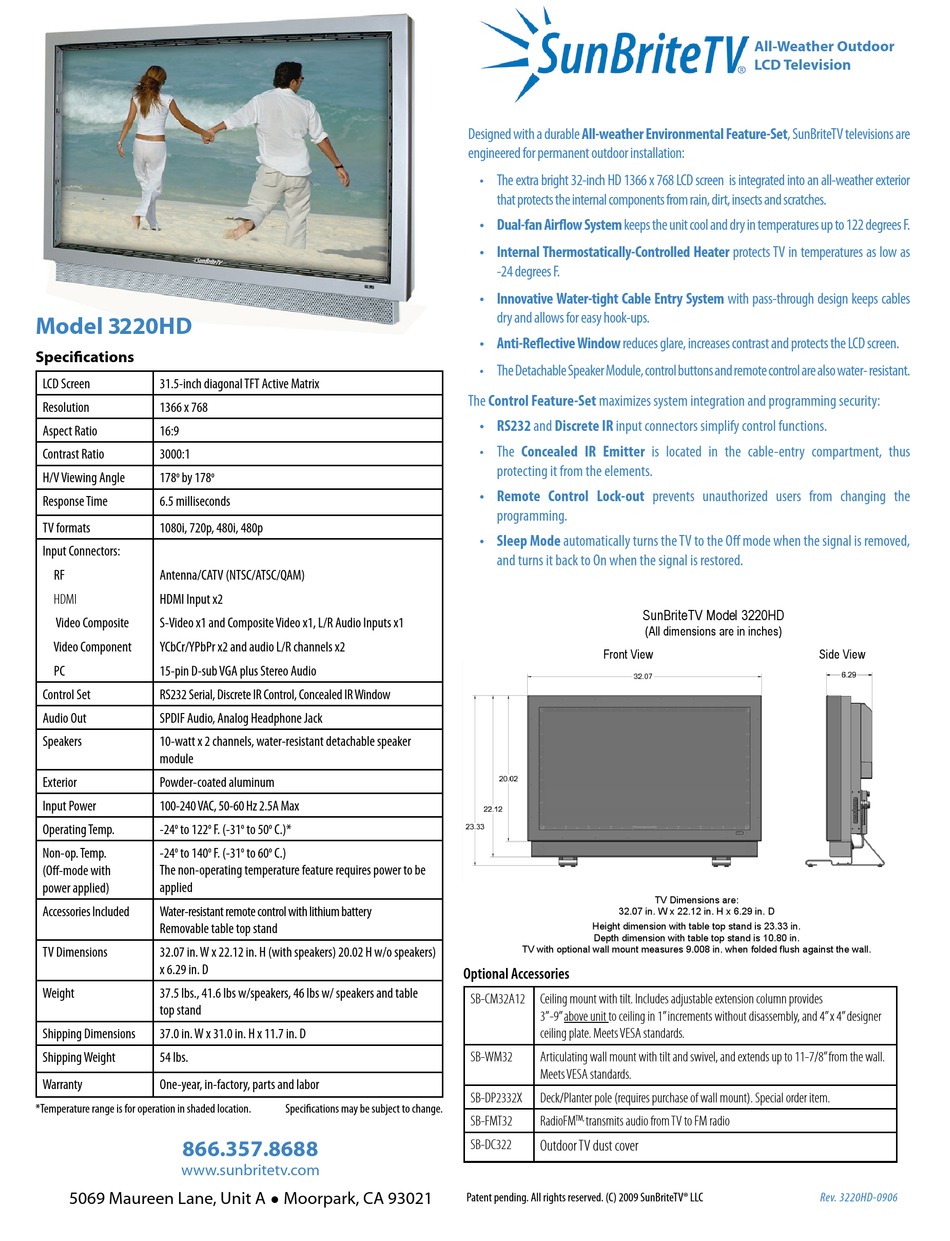

SunBriteTV 3220HD Specifications

Model 3220HD

Specifications

LCD Screen 31.5-inch diagonal TFT Active Matrix
Resolution 1366 x 768
Aspect Ratio 16:9
Contrast Ratio 3000:1
H/V Viewing Angle 178 by 178
o o
Response Time 6.5 milliseconds
TV formats 1080i, 720p, 480i, 480p
Input Connectors:
RF Antenna/CATV (NTSC/ATSC/QAM)
HDMI Input x2
HDMI
Video Composite S-Video x1 and Composite Video x1, L/R Audio Inputs x1
Video Component YCbCr/YPbPr x2 and audio L/R channels x2
PC 15-pin D-sub VGA plus Stereo Audio
Control Set RS232 Serial, Discrete IR Control, Concealed IR Window
Audio Out SPDIF Audio, Analog Headphone Jack
Speakers 10-watt x 2 channels, water-resistant detachable speaker
module
Exterior Powder-coated aluminum
Input Power 100-240 VAC, 50-60 Hz 2.5A Max
Operating Temp. -24 to 122
o o
Non-op. Temp. -24 to 140
o o
(Off-mode with The non-operating temperature feature requires power to be
applied
power applied)
Accessories Included Water-resistant remote control with lithium battery
Removable table top stand
TV Dimensions 32.07 in. W x 22.12 in. H (with speakers) 20.02 H w/o speakers)
x 6.29 in. D
Weight 37.5 lbs., 41.6 lbs w/speakers, 46 lbs w/ speakers and table
top stand
Shipping Dimensions 37.0 in. W x 31.0 in. H x 11.7 in. D
Shipping Weight 54 lbs.
Warranty One-year, in-factory, parts and labor
*Temperature range is for operation in shaded location.
866.357.8688
www.sunbritetv.com
5069 Maureen Lane, Unit A
F. (-31 to 50 C.)*
o o
F. (-31 to 60 C.)
o o
Specifications may be subject to change.
Moorpark, CA 93021
l
Designed with a durable All-weather Environmental Feature-Set, SunBriteTV televisions are
engineered for permanent outdoor installation:
• The extra bright 32-inch HD 1366 x 768 LCD screen is integrated into an all-weather exterior
that protects the internal components from rain, dirt, insects and scratches.
• Dual-fan Airflow System keeps the unit cool and dry in temperatures up to 122 degrees F.
• Internal Thermostatically-Controlled Heater protects TV in temperatures as low as
-24 degrees F.
• Innovative Water-tight Cable Entry System with pass-through design keeps cables
dry and allows for easy hook-ups.
• Anti-Reflective Window reduces glare, increases contrast and protects the LCD screen.
• The Detachable Speaker Module, control buttons and remote control are also water- resistant.
The Control Feature-Set maximizes system integration and programming security:
• RS232 and Discrete IR input connectors simplify control functions.
• The Concealed IR Emitter is located in the cable-entry compartment, thus
protecting it from the elements.
• Remote Control Lock-out prevents unauthorized users from changing the
programming.
• Sleep Mode automatically turns the TV to the Off mode when the signal is removed,
and turns it back to On when the signal is restored.
Front View
32.07 in. W x 22.12 in. H x 6.29 in. D
Height dimension with table top stand is 23.33 in.
Depth dimension with table top stand is 10.80 in.
TV with optional wall mount measures 9.008 in. when folded flush against the wall.
Optional Accessories
SB-CM32A12 Ceiling mount with tilt. Includes adjustable extension column provides
3"-9" above unit to ceiling in 1" increments without disassembly, and 4" x 4" designer
ceiling plate. Meets VESA standards.
SB-WM32 Articulating wall mount with tilt and swivel, and extends up to 11-7/8" from the wall.
Meets VESA standards.
SB-DP2332X Deck/Planter pole (requires purchase of wall mount). Special order item.
SB-FMT32 RadioFM TM, transmits audio from TV to FM radio
SB-DC322 Outdoor TV dust cover
Patent pending. All rights reserved. (C) 2009 SunBriteTV® LLC
All-Weather Outdoor
LCD Television
SunBriteTV Model 3220HD
(All dimensions are in inches)
Side View
TV Dimensions are:
Rev. 3220HD-0906
