- Page 1 Operation Manual Public Address Mixing Amplifier PA 212/224...
- Page 2 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
Important safety Instructions......................2 Overview ............................3 Features ............................3 Contents and Accessories ......................4 Operation ............................4 Front Panel ............................5 Rear Panel ............................7 Applications ..........................11 Block Diagram ..........................12 Specifications ..........................14 Service Procedures............................16 schematic.............................16 Parts list ............................16 Variations and Options .......................16 Warranty ............................16 PA-206/212/224... -
Page 4: Unpacking
PublIc Address MIxIng AMPlIfIer Unpacking Unpacking Although your PA-206/212/224 is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. -
Page 5: Overview
Overview Overview PA-206/212/224 are designed to have higher output and a compact size by class-d design. They are configured with the models having respectively 60W/120W/240W of output, and can be used as High-Z (100V/70V) and low-Z (8Ω/4Ω). PA series are designed to allow the stable operation for voice play and bgM application, and provide the ideal solution to various places like hospitals, restaurants, and schools. -
Page 6: Contents And Accessories
4. Please push the power switch, then the power input led is on and the unit will be operated. 5. Please use your own with adjustment the volume using each input volume and master volume, the tone using the tone control. PA-206/212/224... -

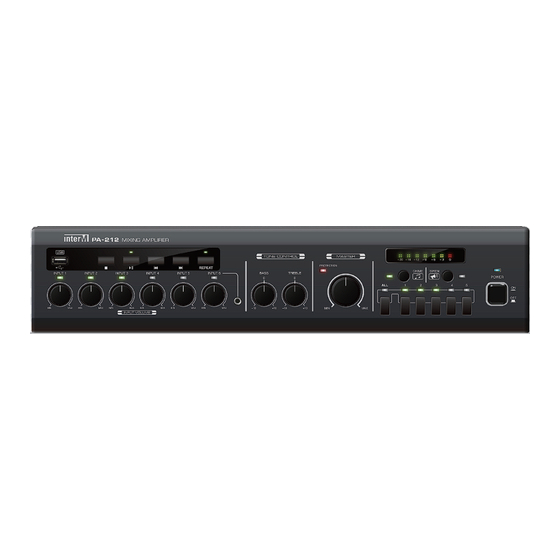

Page 7: Front Panel
③ When led blinks (by pressing the button twice): Only the currently playing audio file is played repeatedly. 3. InPUt SIgnAl InDICAtOR If there is an input signal to InPuT 1~6, due input signal indicator lights up. PA-206/212/224... - Page 8 It is an indicator to indicate the level of the signal being printed. Output level is indicated with 3 - 4db interval. 14. ChIME SWItCh It is a switch to sound 4-note scale of chime. While chiming, a chime indicator on the left side of the switch lights up. PA-206/212/224...
-
Page 9: Rear Panel
Pin 4: remote control 1 (sP1) Pin 12: nc Pin 5: remote control 2 (sP2) Pin 13: nc Pin 6: remote control 3 (sP3) Pin 14: nc Pin 7: remote control 4 (sP4) Pin 15: nc Pin 8: remote control 5 (sP5) PA-206/212/224... - Page 10 ※ caution: be careful not to make total impedance of the speaker terminal to be lower than defined impedance in any case. Impedance and output voltage are as the following table. 8/4Ω SP1~5•COM terminal PA-206 8/4Ω 100V/167Ω 70V/82Ω PA-212 8/4Ω...
- Page 11 ※ refer to the following for the connection of xlr jack, euro Terminal, and rcA jack. simultaneously as they are connected from the inside. Turn PHAnTOM switch Off if using the unbalanced cable. PA-206/212/224...
- Page 12 1) When a signal is input to InPuT 1, or cHIMe and sIren is operated 2) When external MuTe switch is operated ※ The broadcasting of InPuT 1, cHIMe, and sIren signals are printed in priority rather than InPuT 2~6, 3) When a signal is input to Tel In input terminal exT In. PA-206/212/224...
-
Page 13: Applications
PublIc Address MIxIng AMPlIfIer Applications Applications MIXER PA-206/212/224... -
Page 14: Block Diagram
PublIc Address MIxIng AMPlIfIer Block Diagram Block Diagram PA-206/212 PA-206/212/224... - Page 15 PublIc Address MIxIng AMPlIfIer PA-224 PA-206/212/224...
-
Page 16: Specifications
PublIc Address MIxIng AMPlIfIer Specifications Specifications PA-206 PA-212 PA-224 15.5V(4Ω) 31V(8Ω) 31V(4Ω) Output Power (1kHz, THd. 1%) 70V(82Ω) 70V(41Ω) 70V(21Ω) 100V(167Ω) 100V(84Ω) 100V(42Ω) 50db rcA, 3.5 PHOne JAcK 70db lIne, Tel In 70db MIc (bAlAnce) -70dbu /2kΩ lIne (bAlAnce) -20dbu /2kΩ... - Page 17 PublIc Address MIxIng AMPlIfIer ※ DIMEnSIOnS PA-206/212/224...
-
Page 18: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M distributor for your specific country or region.
