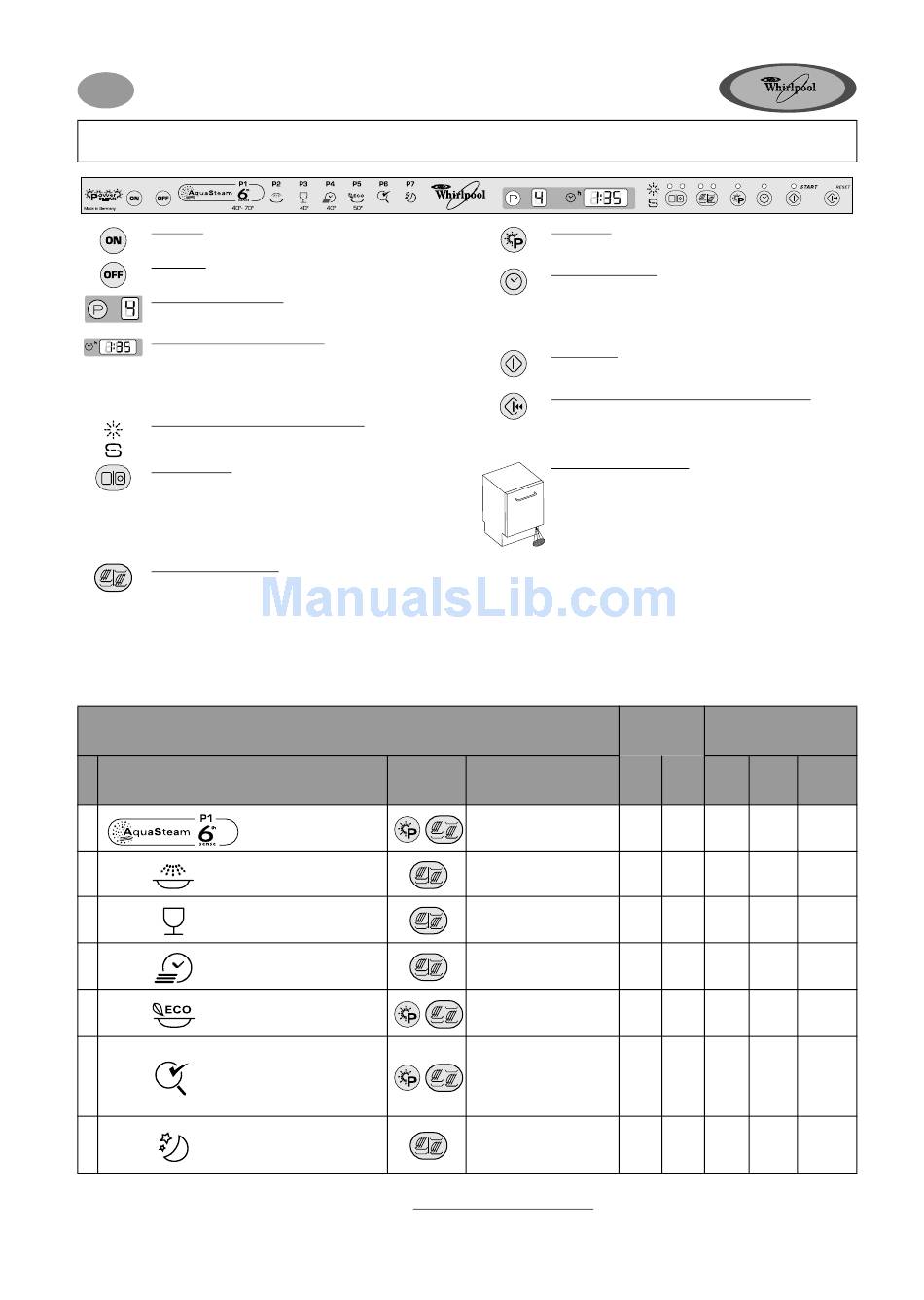

Whirlpool WP 80 Installation And Maintenance Instructions Manual

GB WP 80
ON button
OFF button
Programme selection button
Press button P (repeatedly) until the required programme number
appears on the display.
Fault indication and wash time display
In normal operation it indicates the remaining time (h:mm),
whereas with "Delayed start" selected it indicates the time
remaining until programme start (hh).
In the presence of a fault indication "F.." –, consult the section "5.
What to do if ...".
Rinse aid level indicator and salt level indicator
They light up when rinse aid or salt need to be added.
Add just before starting a wash cycle.
Set the detergent
Press button P (repeatedly) to set the type of detergent used.
Powder, gel, tablets (standard):
Detergent with rinse aid:
Detergent with salt + rinse aid:
This deactivates the rinse aid and/or salt indicator.
Half Load/Multizone button
Load the top or bottom rack only.
Press once = wash top rack (the indicator/symbol lights up)
Press twice = wash bottom rack (the indicator/symbol lights up)
Press 3 times = Off (Half load/Multizone deactivated).
When washing without the top rack, press the "Half load" (i.e. "wash
bottom rack") button. "twice (the corresponding indicator/symbol
lights up).
P
Programmes
1
Sensor +
2
Pre-Rinse
3
Glasses
4
Quickwash
5
Eco
6
Hygienic +
7
Nightrinse
1) Programme data obtained in conformity with European standard EN 50242. The data may vary, for example, according to different loads,
extra functions, sensor settings (only with sensor programmes), water supply temperatures, water hardness and power supply voltage.
2) Energy label programme in compliance with EN 50242. - Information for Test Laboratories: for more detailed information on the
EN comparison test and other tests, contact the following address: "nk_customer@whirlpool.com".
3) The antibacterial action has been shown in collaboration with the Pasteur Institute, Lille (France), in conformity with. Standard NF EN 13697
- November 2001.
Whirlpool is a registered trademark of Whirlpool USA
Before using the dishwasher, read the
installation and maintenance instructions carefully!
1. OVERVIEW
indicator off
left indicator
right indicator
Table 1.1.

Table of programmes

Available
options
40-70°C
cold
40°C
40°C
2)
50°C
3)
55°C
Power Clean
High pressure with an additional jet for better washing results and
greater bottom rack load flexibility.
"Delayed start" button
Press the button (repeatedly) to delay the start of the programme.
Adjustable from 1 to 24 hours. With each press of the button, the
delayed start indicator increases by one hour and after 24 restarts
from 00. Then press the START button. The dishwasher will start
after the set time.
START button
The indicator lights up during operation, flashes when a fault
occurs, and goes off at the end of the programme.
RESET button - for programme change or indication of faults
Press this button to cancel a started programme and selected
extra functions. Press this button to cancel the main fault
indicators (F..); also refer to the section "5. What to do if...". The
programme can then be selected and started.
Running programme indicator
A LED light projected on the floor indicates that the dishwasher is
working.
Detergent
dispenser
Loading instructions large small Litres
Normally or heavily soiled
crockery, including pots and
X
pans.
Crockery to be washed later.
—
Light soiling, for example
X
glasses and cups.
Lightly soiled crockery, without
X
dry residuals.
Normally soiled crockery.
X
Energy-saving programme.
Normally or heavily soiled
crockery, with additional
antibacterial action. An
X
interruption of the programme
(e.g. due to door opening) can
compromise elimination of germs.
Normally soiled crockery,
gentle and quiet (39 dbA)
X
thanks to the lower pressure
jet.
1)
Consumption
kWh Minutes
X 7-17 0.99-1.75 65-220 ±
1)
— 4.0 0.03 14 ±
1)
— 10.0 0.85 100 ±
1)
— 10.0 0.65 30 ±
1)
X 11.0 1.05 155 ±
1)
X 13.0 1.50 115 ±
1)
X 13.0 1.20 290 ±
5019 396 01115
1)
1
