Genie GSDNR-5355W Instruction Manual
Genie GSDNR-5355W Instruction Manual

Genie GSDNR-5355W Instruction Manual

Wdr true day&night camera

Advertisement

Quick Links

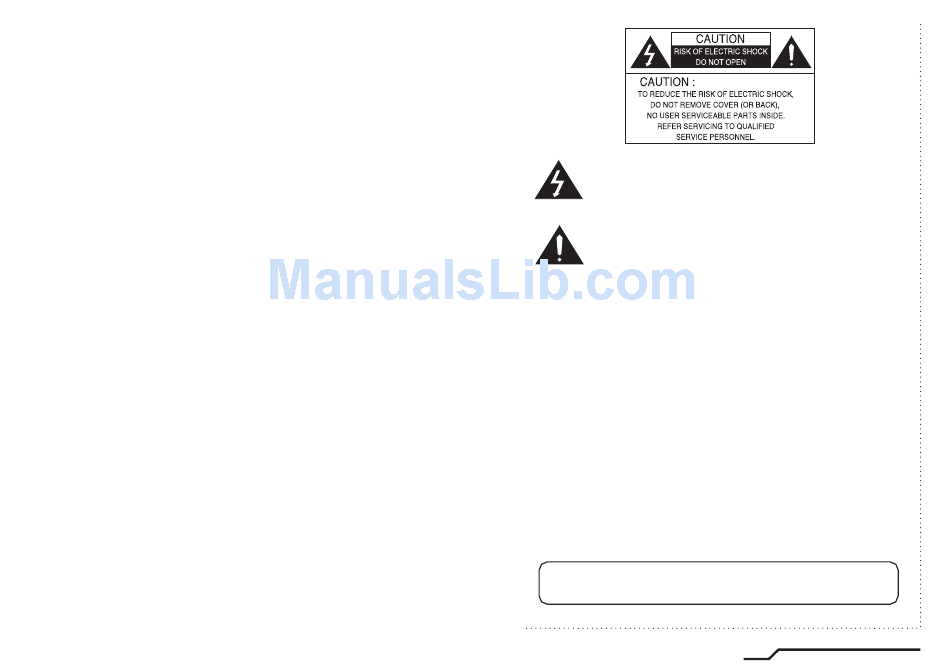

The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
¡ß Do NOT use power sources other than those specified.
¡ß Do NOT expose this appliance to rain or moisture.
This installation should be made by a qualified service person and
should conform to all local codes.
1
WDR True Day&Night Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSDNR-5355W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Genie GSDNR-5355W

  • Page 1 The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
  • Page 2: Table Of Contents

    ¡á Contents Features How to Use the Camera ¡á Function Menu Structure Precautions ¡á How to Set up the Functions ¤ýLENS Components and Accessories ¤ýEXPOSURE Overview ¤ýWHITE BALANCE control ¡á Front View ¤ýBACKLIGHT ¡á Side View ¤ýDNR (Digital Noise Reduction) ¡á...
  • Page 3: Features

    ¡á Features Warning ¡á Ultra High Resolution Day & Night The camera requires periodic inspection. By adopting a double-speed 410,000 pixel The camera identifies whether it is day or night Contact an authorised technician to carry out the inspection. Sony CCD, the camera produces clear picture and automatically switches to the appropriate quality with a horizontal resolution of 560 TV lines mode, depending on the environment.
  • Page 4: Precautions

    ¡á Precautions Do not drop the camera and protect Never keep the camera pointed Do not install the camera in Do not install or use the camera in an it from physical shocks. directly at strong light. extreme temperature conditions. environment where the humidity is high.
  • Page 5: Components And Accessories

    ¡á Components and Accessories Overview ¡á Front View ¨ç 1. Ultra High Resolution WDR Day&Night CCD Camera 2. Auto Iris Lens Connector Plug ¨è ¨é 3. C-Mount Adapter ¨ç Tripod Mounting Bracket Screw Hole Used to fix the Tripod Mounting Bracket to the top of the camera. ¨è...
  • Page 6: Side View

    ¡á Overview Side View Bottom View ¨ë ¨ê ¨ë Tripod Mounting Bracket Screw Hole ¨ê Auto Iris Lens Connector Used to fix the camera onto a bracket or tripod. Used to connect Auto Iris Lens plug. The screw sizes for this hole are as follows: 1/4"-20 UNC (20 THREAD) L:4.5mm±0.2mm (ISO standard), or 0.197"...
  • Page 7: Rear View

    ¡á Overview Installation Procedures ¡á ¨ñ Video OUT Port Rear View Video signals are output through this port. Connect this port to the Video IN ¨ð port of a Monitor/DVR. ¨ò Auto iris lens selection switch Used to change between DC or Video depending upon the type of ¨ñ...
  • Page 8: Installation Procedures

    ¡á Installation Procedures Using a C/CS mount Lens Before installing a lens, identify whether the lens to be installed is a C-Mount 3. Remove the cover of the Auto Iris Lens connector plug and solder the lens cable to the connector pins of the plug. or CS-Mount.
  • Page 9: Connecting A Monitor

    ¡á Installation Procedures • Using a C-Mount Lens Connecting to a Monitor 1. Remove the protective cover at the front of this product and fit Connect the video output terminal located on the rear of the camera the C-Mount Adapter, turn it clockwise to install it. to the Monitor/DVR.
  • Page 10: Connecting Power

    ¡á Installation Procedures Connecting Power Control via the RS-485 Interface Since power specifications differ, depending on the model, make sure to check The camera can be controlled by using an external controller equipped with the model name and exact specification before connecting power. RS-485 communications.
  • Page 11: How To Use The Camera

    ¡á How to Use the Camera On-Screen Display Menu Structure How to Set up the Functions Settings can be made using the 5 buttons on the rear of the camera. Setup Menu UP Button LENS • • VIDEO • MANUAL SET Button SHUTTER SENS-UP...
  • Page 12 ¡á How to Use the Camera ¡Ü DC/Video : Auto Iris Lens selection. MAIN SETUP • The screen brightness can be controlled in DC mode. The range Select the desired menu 1. LENS Modes can be changed item by using the UP and using the LEFT and 2.
  • Page 13 ¡á How to Use the Camera EXPOSURE Note • To produce better results with A.FLK, do not use it in conjunction with MAIN SETUP the WDR mode on the BACKLIGHT menu. 1. LENS • When the SHUTTER is set to ESC, and the camera is set to Internal Synchronisation, the picture may become unstable if the camera 2.
  • Page 14 ¡á How to Use the Camera White Balance (White Bal.) Note • Under the following conditions White Balance may not work properly. Use the White Balance function to adjust the screen colours. In such cases, select the AWC mode. 1. Position the cursor to point to WHITE BAL on the SETUP menu screen, select ¨ç...
  • Page 15 ¡á How to Use the Camera ¡Ü WDR : When the image has simultaneous bright and dark areas, the Note Wide Dynamic Range makes both areas distinct. ¡Ü OFF : Deactivates the WDR function. • The WDR cannot be used when MANUAL mode or A.FLK mode in the 'SHUTTER' menu is selected.
  • Page 16 ¡á How to Use the Camera 3. Set the DNR mode to 'ON' and press the SET button. The noise 2. Select the desired mode using the Left and Right buttons. reduction level can now be adjusted. ¡Ü COLOUR : The picture is displayed in colour. ¡Ü...
  • Page 17: Ýimage Adj

    ¡á How to Use the Camera ¡Ü D-ZOOM : Digitally zooms, the range is x1~x10. IMAGE ADJ. 1. When the SETUP menu screen is displayed, select 'IMAGE ADJ.' using the Up and Down buttons. MAIN SETUP 1. LENS 2. EXPOSURE 3.
  • Page 18 ¡á How to Use the Camera ¨è Set to 'ON' using the Left and Right buttons. SPECIAL 1. When the SETUP menu screen is displayed, select 'SPECIAL' using the Note Up and Down buttons. • When the CAM TITLE menu is SPECIAL 1 CAM TITLE 'OFF', no title will be displayed...
  • Page 19 ¡á How to Use the Camera ¨ë Enter a title, move the cursor to 'POS' and press the SET button. The ¨ç When the SPECIAL menu screen is displayed, press the Up and entered title appears on the screen. Select the position to display the title Down buttons so that the cursor points to MOTION DET.
  • Page 20 ¡á How to Use the Camera Troubleshooting ¡á If you have trouble operating your camera, refer to the following table. - MASK COLOUR : Determine area colour. Select Grey, Green, Red, Blue, If the guidelines do not enable you to solve the problem, contact an Black or White.
  • Page 21: Troubleshooting

    Troubleshooting Specifications (AC24V / DC12V) ¡á NTSC Problem Solution AC24V / DC12V DC12V AC24V / DC12V DC12V Power Source 350mA(AC24V)/490mA(DC12V) 420mA 350mA(AC24V)/490mA(DC12V) 420mA The Motion Detection • Check that MOTION DET in the SPECIAL SETUP Size SONY 1/3" Vertical Double Density Colour CCD function does not is not set to 'OFF'.
  • Page 22: Specifications

    -10¢ª C to + 50¢ª C / 30% to 80% RH Storing Temperature / Humidity -20¢ª C to + 60¢ª C / 20% to 90% RH Dimension 65.8(W) x 60.6(H) x 101.9(D)mm Weight 320g ¡Ø OPTION - Mains Camera : GSDNR-5355W/240 WDR True Day&Night Camera...
  • Page 23 MEMO...
  • Page 24 Model : GSDNR-5355W WDR True Day&Night Camera Instruction Guide GENIE CCTV LTD. CCTV House, City Park, Watchmead, Welwyn Garden City, Hertfordshire, AL7 ILT Tel : +44 (0) 1707 330541 Fax : +44 (0) 1707 330543 www.geniecctv.com...
