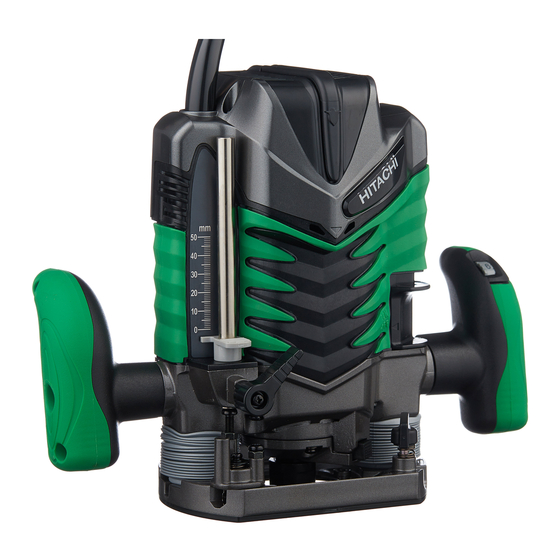

Hitachi M 8V2 Technical Data And Service Manual

Router
Hide thumbs

Advertisement

LIST Nos. M 8V2: 0671
M 8SA2: 0672
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT
ROUTER
M 8V2
M 8SA2
Mar. 2006
MODELS
M 8V2
M 8SA2
Hitachi
Power Tools
TECHNICAL DATA
SERVICE MANUAL
AND
M

Advertisement

loading

  Summary of Contents for Hitachi M 8V2

  • Page 1 MODELS M 8V2 M 8SA2 Hitachi Power Tools ROUTER TECHNICAL DATA M 8V2 SERVICE MANUAL M 8SA2 LIST Nos. M 8V2: 0671 Mar. 2006 M 8SA2: 0672 SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT...
  • Page 2 REMARK: Throughout this TECHNICAL DATA AND SERVICE MANUAL, a symbol(s) is(are) used in the place of company name(s) and model name(s) of our competitor(s). The symbol(s) utilized here is(are) as follows: Competitor Symbol Utilized Model Name Company Name RP1110C MAKITA RP0910 DW621K DEWALT...
  • Page 3: Table Of Contents

    9-3. Insulation Tests ..........................11 9-4. Cleaning the Cover ......................... 11 9-5. No-load Current Value ........................11 9-6. Product Accuracy ..........................11 10. STANDARD REPAIR TIME (UNIT) SCHEDULES ..............12 Assembly Diagram for Model M 8V2 Assembly Diagram for Model M 8SA2...
  • Page 4: Product Name

    2. MARKETING OBJECTIVE The new Models M 8V2 and M 8SA2 are the upgraded versions of the current Models M 8 and M 8V which have been sold for about 17 years since the sales start. With these new models, we aim to reinforce our router series.
  • Page 5: Selling Point Descriptions

    Fig. 2 (3) Improved clutch The Models M 8V2 and M 8SA2 are provided with the collet chuck that clutches the bit into the armature shaft for improved clutch. Table 1 Loosening torque to tightening torque...
  • Page 6: Specifications

    (4)Class-top body stroke The Models M 8V2 and M 8SA2 are provided with class-top main body stroke. Table 2 Main body stroke HITACHI C1/C2 D1/D2 M 8V2 (M 8SA2) M 8V (M 8) Main body stroke (mm) 60 (2-3/8") 50 (1-31/32") 57 (2-1/4") 55 (2-5/32")
  • Page 7: Comparisons With Similar Products

    7. PRECAUTIONS IN SALES PROMOTION In the interest of promoting the safest and most efficient use of the Models M 8V2 and M 8SA2 Routers by all of our customers, it is very important that at the time of sale the salesperson carefully ensures that the buyer seriously recognizes the importance of the contents of the Handling Instructions, and fully understands the meaning of the precautions listed on the Caution Plate attached to each tool.
  • Page 8: Name Plate

    The [Bold] numbers in the descriptions below correspond to the item numbers in the Parts Lists and exploded assembly diagram for the Model M 8V2. The ([Bold]) numbers in the descriptions below correspond to the item numbers in the Parts Lists and exploded assembly diagram for the Model M 8SA2. The disassembly and reassembly procedures described are the same for the Models M 8V2 and M 8SA2.
  • Page 9: Disassembly

    9-1. Disassembly (1) First, remove the bit. If further disassembly is attempted with the bit mounted on the router, it may cause damage to the cutting edges of the bit and/or serious injury to the handler. (2) Removal of the Base [76] ([75]) (Fig. 3) (a) Stand the router upright so that the bottom surface of the Base [76] ([75]) is directed downward.
  • Page 10 (g) Being very careful not to damage the magnet component, fit a 14-mm wrench onto the hexagonal portion of the Magnet [4], and loosen and remove it from the Armature [34] ([33]) (Model M 8V2 only). (h) Loosen and remove the three Machine Screws (W/Washers) M4 x 12 (Black) [43] ([42]), remove the Bearing Cover [57] ([56]), Pushing Button [59] ([58]) and Lock Spring (A) [58] ([57]).
  • Page 11 As these models are specifically designed to ensure that the armature is dynamically balanced, there is extremely little allowable play or imbalance in comparison with other Hitachi electric power tools. For this reason, be sure to handle the armature and its associated parts very carefully during disassembly and reassembly.
  • Page 12: Reassembly

    9-2. Reassembly Reassembly can be accomplished by following the disassembly procedures in reverse. (1) Wiring procedure During installation, be careful not to pinch the lead wires between the housing and the head cover. (1-1) Model M 8V2 Switch Connector Controller Fig.
  • Page 13 (2) Wiring diagram (2-1) Model M 8V2 Switch Stator Control Power source Armature circuit ass'y Stator Dial ass'y Fig. 9 (2-2) Model M 8SA2 Switch Stator Noise Power source Armature suppressor Stator Fig. 10 (3) Tightening torque of screws and bolts Tapping screw D4 x 12 0.5 N...
  • Page 14: Insulation Tests

    Current (A) max. (Model M 8SA2) Note: For the Model M 8V2, check the no-load current value by setting the dial to "6". 9-6. Product Accuracy Bit run out: With a 8-mm or 1/4" test bar applied, runout should be less than 0.4 mm at a 100-mm distance from the top of the chuck.
  • Page 15: Standard Repair Time (Unit) Schedules

    10. STANDARD REPAIR TIME (UNIT) SCHEDULES Variable 60 min. MODEL Fixed M 8V2 Work Flow M 8SA2 Snap Switch Controller Package Cord Cord Armor Cord (A) General Assembly Head Cover Armature Ass'y Housing Ass'y Rubber Ring Stator Ass'y Bearing Bushing...
  • Page 16 Hitachi Power Tools LIST NO. 0671 ELECTRIC TOOL PARTS LIST ROUTER 2006 • • Model M 8V2 (E1)
  • Page 17 PARTS M 8V2 ITEM CODE NO. DESCRIPTION REMARKS USED HITACHI LABEL (B) 500-234Z CORD (CORD ARMOR D8.8) 500-247Z CORD (CORD ARMOR D8.8) FOR FIN, NOR, SWE, DEN, AUT 500-241Z CORD (CORD ARMOR D8.8) FOR USA, CAN 500-439Z CORD (CORD ARMOR D8.8) FOR NZL, AUS...
  • Page 18 PARTS M 8V2 ITEM CODE NO. REMARKS DESCRIPTION USED 325-220 HANDLE (L) B 325-171 HANDLE (L) A 325-180 SPRING GUIDE 303-316 SPRING 303-317 SPRING 935-196 MACHINE SCREW (W/WASHERS) M4X12 (BLACK) 325-174 LEVER (C) 325-175 LOCK SCREW M6 326-088 END BRACKET...
  • Page 19: Standard Accessories

    STANDARD ACCESSORIES M 8V2 ITEM CODE NO. DESCRIPTION REMARKS USED 956-797 STRAIGHT GUIDE 971-622 GUIDE BAR 301-806 WING BOLT M6X15 323-295 WRENCH 23MM 326-095 CASE EXCEPT FOR AUT, USA, CAN 971-852 CHUCK SLEEVE 8X6 FOR EUROPE, FIN, NOR, SWE, DEN...
  • Page 20 Hitachi Power Tools LIST NO. 0672 ELECTRIC TOOL PARTS LIST ROUTER 2006 • • Model M 8SA2 (E1)
  • Page 21 PARTS M 8SA2 ITEM CODE NO. DESCRIPTION REMARKS USED HITACHI LABEL (B) 500-234Z CORD (CORD ARMOR D8.8) 500-247Z CORD (CORD ARMOR D8.8) FOR AUT, FIN, DEN, SWE, NOR 500-439Z CORD (CORD ARMOR D8.8) FOR AUS, NZL 500-447Z CORD (CORD ARMOR D8.8) FOR SUI...
  • Page 22 PARTS M 8SA2 ITEM CODE NO. REMARKS DESCRIPTION USED 326-097 END BRACKET 971-848 LOCK PIECE 325-187 LOCK SCREW M10 326-042 LEVER (A) 322-601 LEVER (A) W/O STOPPER FOR SAF 997-314 MACHINE SCREW (W/WASHERS) M6X10 325-172 HANDLE (R) A 325-227 DIAL COVER 325-221 HANDLE (R) B 307-100...
  • Page 23 STANDARD ACCESSORIES M 8SA2 ITEM CODE NO. DESCRIPTION REMARKS USED 956-797 STRAIGHT GUIDE 971-622 GUIDE BAR 301-806 WING BOLT M6X15 323-295 WRENCH 23MM 971-852 CHUCK SLEEVE 8X6 326-091 BAR HOLDER 949-394 WING BOLT M6X10 (10 PCS.) 956-793 FEED SCREW OPTIONAL ACCESSORIES ITEM CODE NO.
