Set-up

ASSEMBLY

Read entire operator's manual before you attempt to assemble or if
you have any problems with the assembly of your power washer,
please call Generac Customer Service at 1-888-436-3722. When
calling for assistance, please have the model and serial number
from the data tag available.
1. Install gun hook to handle assembly using the (2) supplied tree
clips. Alien holes and push the tree clips into holes until they
sit flush with gun hook (Figure 2).

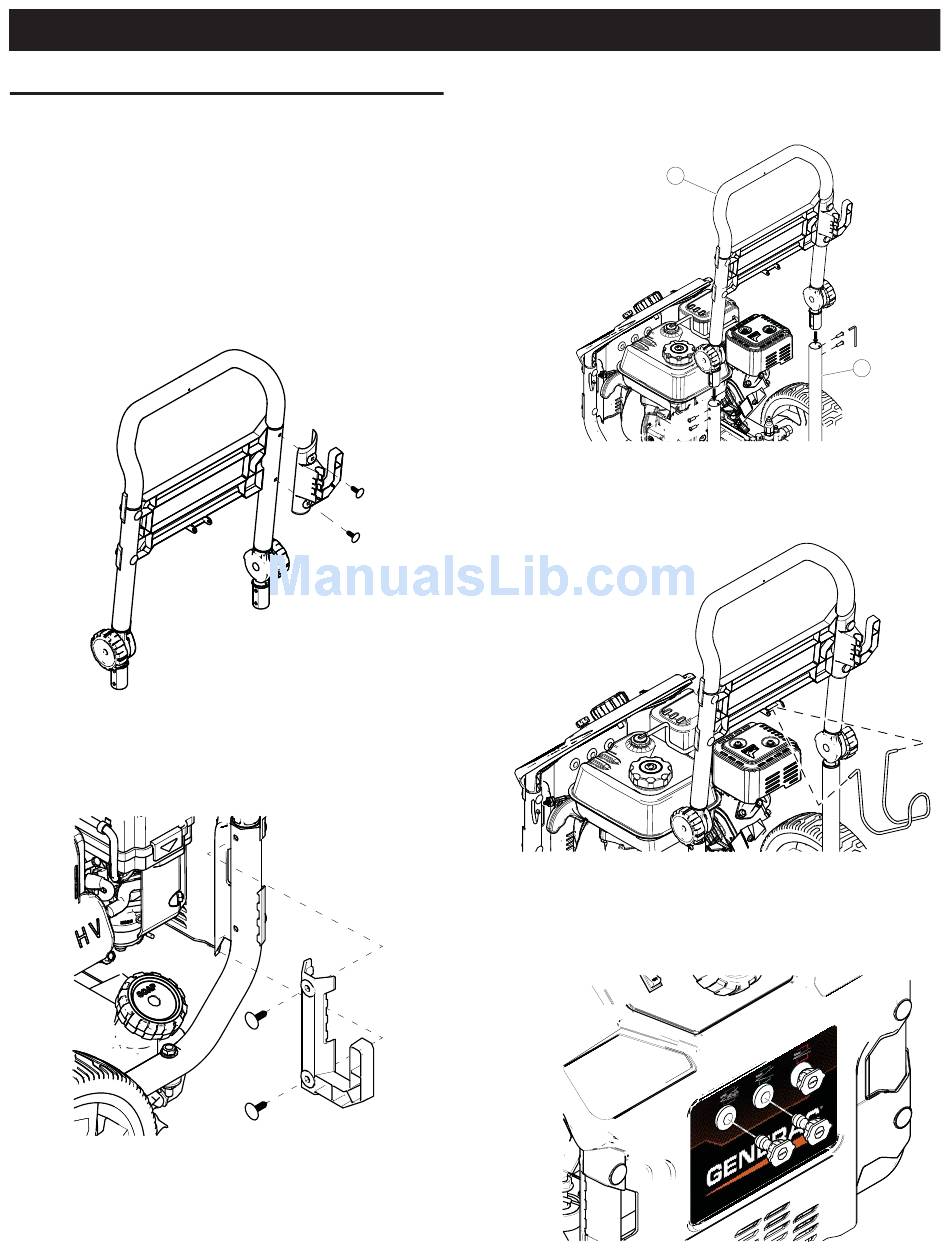

Figure 2 – Attach Gun Hook to Handle Assembly
2. Install lance hook to unit frame using (2) supplied tree clips.
Alien holes and push the tree clips into holes until they sit flush
with gun hook (Figure 3).
Figure 3 – Attach Lance Hook to Unit
3. Place handle assembly (A) onto cradle supports (B). Allow
handle to slide into position. Locate the (4) screws and allen
wrench. Install the four screws using supplied allen wrench as
shown in (Figure 4).
6
Figure 4 – Attach Handle to Unit
A
4. Install hose hook (Figure 5).
Figure 5 – Install Hose Hook
5. Insert color–colored nozzles in spaces provided in front panel
(Figure 6).
Figure 6 – Insert Nozzles
B
