Summary of Contents for Grundig Vertiga UMS 4600 DEC

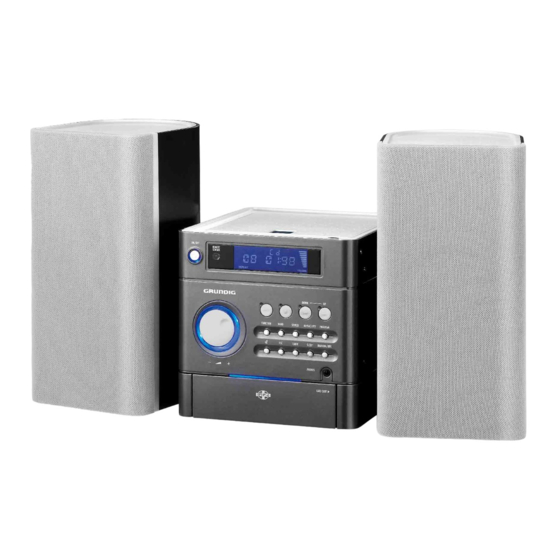

- Page 1 HIFI STEREO MICRO SYSTEM Vertiga UMS 4600 DEC DEUTSCH ENGLISH FRANÇAIS ITALIANO PORTUGUÊS ESPAÑOL...
-
Page 2: Table Of Contents
CONTENTS ______________________________________________________ Set-up and safety Overview The hi-fi system controls Displays The back of the hi-fi system The remote control Connection and preparation Antennas Connecting the loudspeakers Connecting the headphones Connecting the power cord Connecting an external device Inserting the memory card Connecting an MP3 player or USB memory stick Inserting batteries in the remote control Switching on and off... - Page 3 CONTENTS ______________________________________________________ Memory card and USB operation Playing the contents of a memory card Playing the contents of an MP3 player or USB memory stick Switching between a memory card and a USB memory stick Timer mode Switch-on timer Sleep timer Information Cleaning the CD unit Technical data...
-
Page 4: Set-Up And Safety
SET-UP AND SAFETY _____________________________________ Please note the following information when setting up the system: The hi-fi system is designed for the playback of audio signals. Any other use is expressly prohibited. If you want to set up the hi-fi system on wall shelves or in cupboards, please ensure that the device is adequately ventilated. -
Page 5: Overview
OVERVIEW ______________________________________________________ The hi-fi system controls ON/OFF ON/OFF DOWN DOWN FUNCTION BAND STEREO REPEAT/ PTY PROGRAM FUNCTION BAND STEREO REPEAT/ PTY PROGRAM TIMER SLEEP RANDOM/RDS TIMER SLEEP RANDOM/RDS PHONES PHONES DIR/ CARD SLOT FIND PRESET SD/ MS/MMC Controls on the front General information Switches the hi-fi system to and from stand-by mode. - Page 6 OVERVIEW ______________________________________________________ Tuner mode Switches between the FM (VHF) and MW (medium wave) frequency BAND bands . Switches between stereo and mono reception . STEREO DOWN ..UP Press briefly to alter the frequency in steps backwards or forwards. Press and hold down to start the station search forwards or backwards. 5 as 6 Selects programme types (PTY).
- Page 7 OVERVIEW ______________________________________________________ Operating external storage media Mode indicator for USB mode (under the front flap). LED (red) USB interface for connecting a USB removable drive (under the front flap). Not suitable for connecting to a PC. Card slot for inserting a memory card (MMC, MS or SD) (under the SD/MS/MMC front flap).
-
Page 8: Displays
OVERVIEW ______________________________________________________ Displays ALBUM SLEEP 000 00.00 ALBUM MEMORY REPEAT INTRO RANDOM VOLUME 000 00:00 Displays the volume setting (»VOL 00« to »VOL 30«). Displays the preset sound effects. In tuner mode: displays the frequency band. Displays the programme name, programme type and radio text if RDS information is being received. In MP3 mode: displays the total number of files, the number of the current file and the elapsed playing time of the current file. - Page 9 OVERVIEW ______________________________________________________ In MP3 and CD-DA mode: the first ten seconds of each file or track are INTRO played. In MP3 and CD-DA mode: a track memory is created or played back. MEMORY In MP3 and CD-DA mode: the files or tracks are played back in random RANDOM order.
-
Page 10: The Back Of The Hi-Fi System
OVERVIEW ______________________________________________________ The back of the hi-fi system AUX IN SPEAKER Antenna socket for the rooftop antenna or the wire aerial supplied FM Antenna (FM reception). Sound input socket for connecting an external audio source. AUX IN SPEAKERS Terminals for connecting loudspeaker cables. R= right channel, = left channel. -
Page 11: The Remote Control
OVERVIEW ______________________________________________________ The remote control Switches the hi-fi system to and from stand-by ON/OFF mode. ON/OFF Switches the hi-fi speakers to and from mute mode. BAND FUNCTION Selects the preset sound effects PASS, CLASSIC, ROCK, POP, JAZZ and PASS again. In tuner mode: switches between the FM BAND VOLUME... - Page 12 OVERVIEW ______________________________________________________ In tuner mode: activates the storing functions. PROGRAM Stores radio stations on preset station posi- ON/OFF tions. In MP3 and CD-DA mode: activates the function for creating a track memory. Stores BAND FUNCTION files or tracks when creating a track memory. For setting the sleep timer;...
-
Page 13: Connection And Preparation
CONNECTION AND PREPARATION ___________ Antennas The device is equipped with an integrated antenna for the reception of MW (medium wave) stations. Plug the rooftop antenna cable into the »FM ANT« antenna socket on the hi-fi. Note: If no rooftop aerial system is available, use the wire antenna supplied. This antenna pro- vides reasonably good reception of local FM (VHF) stations. -
Page 14: Connecting An Mp3 Player Or Usb Memory Stick
CONNECTION AND PREPARATION ___________ Insert the card carefully into the »SD/MS/ MMC« card slot (under the front flap), with the contacts facing downwards until it latches in place. Note: – Do not exert force when inserting the card. Apply only slight pressure. –... -
Page 15: Additional Information For Units Sold In The Uk
CONNECTION AND PREPARATION ___________ Additional information for units sold in the UK. Units sold in the UK are suitable for operation from a 240V ac, 50Hz mains supply. The range of multi-system receivers is built to work in most European countries. However, the mains plug and socket system for the UK differs from many European countries. -
Page 16: Settings
SETTINGS _________________________________________________________ Setting the time After the first time the hi-fi system is connected to the mains, it switches to stand-by. The time appears in the display. In stand-by mode, press »PROGRAM« and hold it down until the display flashes in 24 hour format. -
Page 17: General Functions
GENERAL FUNCTIONS __________________________________ Selecting the input source Select the desired source (TUNER, CD, AUX or CARD-USB) with »FUNCTION«. – Display: »TUNER«, »CD«, »AUX« or »CARD – USB«. Adjusting the volume Alter the volume with » +« on the device or » «... -
Page 18: Tuner Mode
TUNER MODE _________________________________________________ Selecting the tuner input source Press »FUNCTION« to select TUNER as the input source. – Display: »TUNER«, then the waveband and the frequency. – You will hear the last selected radio station. Selecting preset radio stations Press »BAND« to select the frequency band (FM or MW). »–... -
Page 19: Cd Mode
CD MODE ________________________________________________________ The hi-fi system is suitable for music CDs bearing the logo shown here (CD-DA), and for CD-Rs and CD-RWs with audio data or MP3 formats. In MP3 mode, the terms “album” and “file” are very important. “Album” corresponds to a folder on a PC, “file”... -
Page 20: Cd Playback
CD MODE ________________________________________________________ CD playback Press » II« to start playback. – Playback always starts with the first file of the first album (MP3) or with the first track (CD-DA). – Display in MP3 mode: the number of the current file, the elapsed playing time of the file. -
Page 21: Searching For Files By Name (Mp3 Only)
CD MODE ________________________________________________________ Searching for files by name (MP3 only) Call up the search function during playback by pressing »FIND«. – Display: »A« and, if present, a corresponding file name, the magnifying glass symbol flashes. Press » « or » «... -
Page 22: Repeating All The Files On An Album (Mp3 Only)
CD MODE ________________________________________________________ Repeating all the files on an album (MP3 only) During playback, press »REPEAT/PTY« three times. – Display: »REPEAT ALBUM«. – All the files on the current album are played back repeatedly. To quit the function, press »REPEAT/PTY« until »REPEAT« disappears from the display. -
Page 23: Creating A Track Memory
CD MODE ________________________________________________________ Creating a track memory You can create a track memory of up to 64 files on different albums (MP3) or up to 64 tracks (CD-DA) for the current CD in any order you choose and then play them back in that sequence. -
Page 24: Memory Card And Usb Operation
MEMORY CARD AND USB OPERATION ____ Playing the contents of a memory card Insert a memory card in the card slot »SD/MS/MMC« (under the front flap). Switch on the hi-fi and select CARD-USB as the source by pressing »FUNCTION«. – Display: briefly »CARD-USB«, then MP3 mode with the total number of albums and files in stop mode. - Page 25 TIMER MODE ___________________________________________________ Your hi-fi system has two timer modes: – The switch-on timer, which switches the device on and off at a preset time. – The sleep-timer, which switches the machine off at a time you set. Switch-on timer Setting the switch-on timer Press »TIMER«...
-
Page 26: Timer Mode
TIMER MODE ___________________________________________________ Sleep timer Setting the sleep timer Switch the hi-fi system on from stand-by mode by pressing »ON/OFF «. Press »SLEEP« to call up the function. – Display: »9 0« and »SLEEP«. Set the sleep time in (»90«, »80«,»70« to »I 0«) using »SLEEP«. –... -
Page 27: Information
INFORMATION _______________________________________________ Cleaning the CD unit If the device is unable to scan CDs perfectly, use a standard, commer- cially available cleaning CD to clean the laser optics. Other cleaning methods may damage the laser optics. To clean CDs use a lint-free cloth and wipe them in a straight line from the centre of the disc outwards. -
Page 28: General Information On Laser Devices
INFORMATION _______________________________________________ General information on laser devices Your system is a CLASS 1 LASER PRODUCT. This means that the laser is designed in such a way as to ensure that the maximum permissible emission value cannot be exceeded under any circumstances. CLASS 1 Caution: LASER PRODUCT...
