Check the motion detection area and DI when required.
Overwrite：overwrite the harddisk when assigned capacity is fulled.
Full Stop: stop recording when the assigned capacity is full.
Enable Sch.: check to define the recording schedule

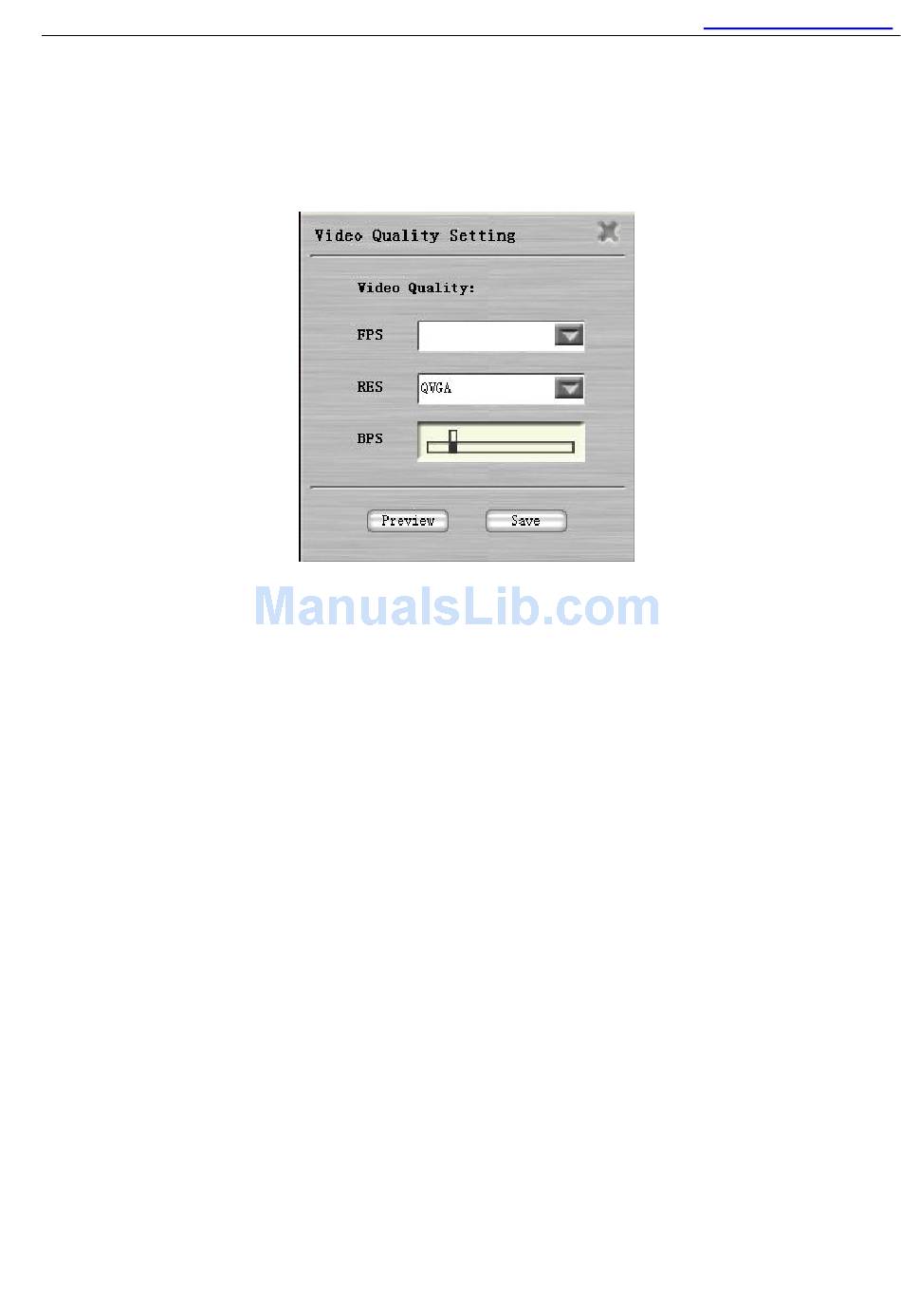

Video Quality Setting:
User is able to setup the video quality for recording purpose.
FPS: select the frame-rate.
RES: select the resolution.
BPS: Move the bar to change the bitrate.
It is recommended to preview the settings before save and record.
Motion Detection (MD):
Check the box to enable MD function. User is able to define MD up to 3 areas. MD area can be defined
by key-in axis numbers, too.
