TT IP CAM User Manual http://www.ttipcam.com
*Click on "System Tool" and select a function mode.
<A> Don't connect to server: This mode is for applications in LAN or fixed IP environments.
<B> Connect to D-Server: This mode is for users who do not have a fixed IP on Internet.
<C> Connect to Record-Server: This mode connects IPcam to a specified remote server that can
record and transmit the streaming video.
Click on System Tool and get the UI page as left:
Update Password：To setup/ change password.
Reset Camera：Click to restart the IPcam.
Modes：3 available function modes*.
Camera Name：The name can be changed by clicking the pencil icon after typing in a new name.
volume control：Move the bar to adjust the volume of the microphone on the IPcam.
Display time on video：Check this feature to display the current time on the video. The time of the
IPcam can be changed by clicking the pencil icon after typing in the new time.

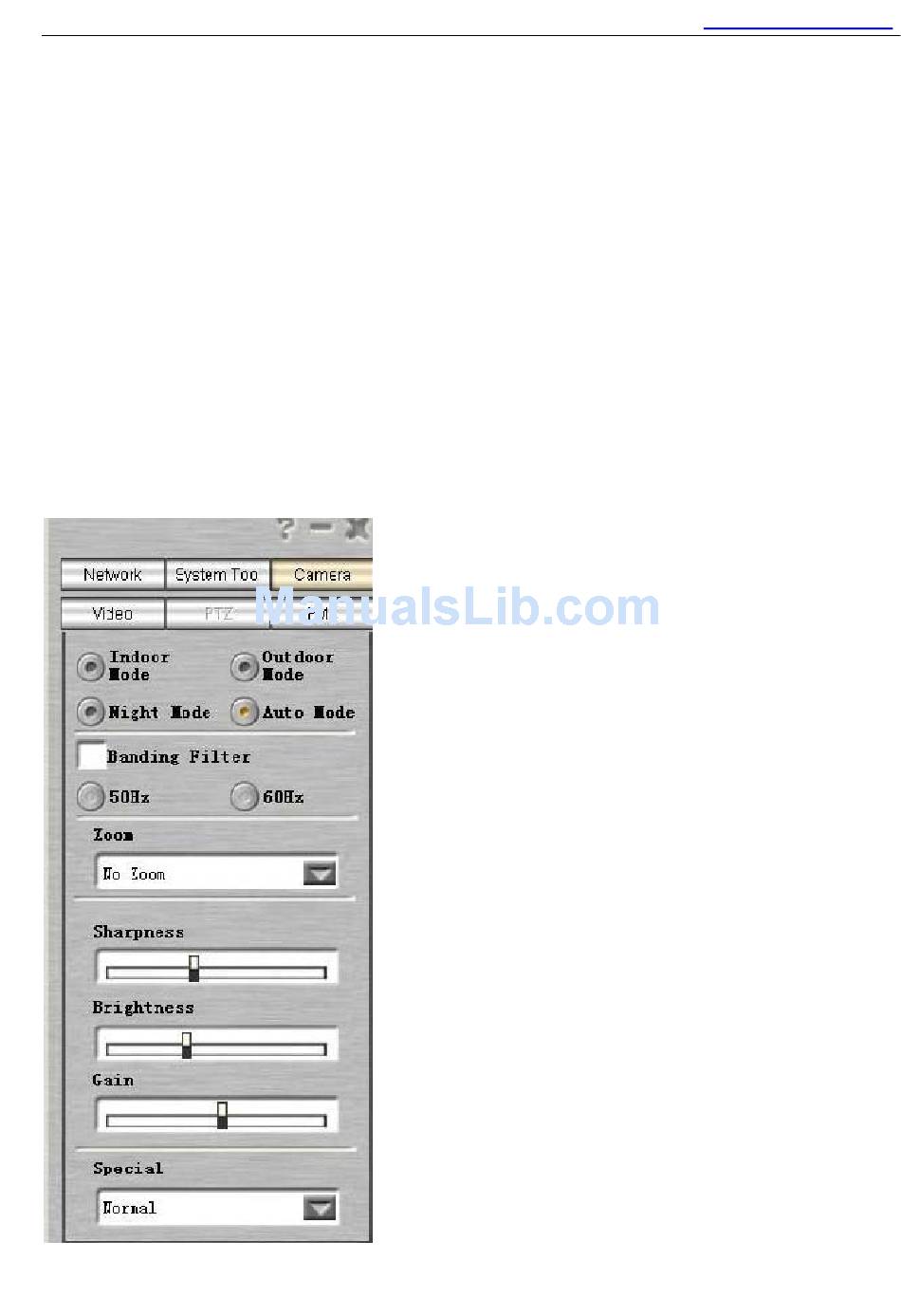

<3.2>Camera Control
- 12 -
