FUNCTIONAL
DESCRIPTION
1
2
1. Switch trigger
2. Lock button
1
3
4
5
1. Low
2. High
3. Speed control screw
4. Switch trigger
5. Lock button
1. Reversing switch lever
CAUTION:
• Always be sure that the tool is switched off and unplugged before
adjusting or checking function on the tool.

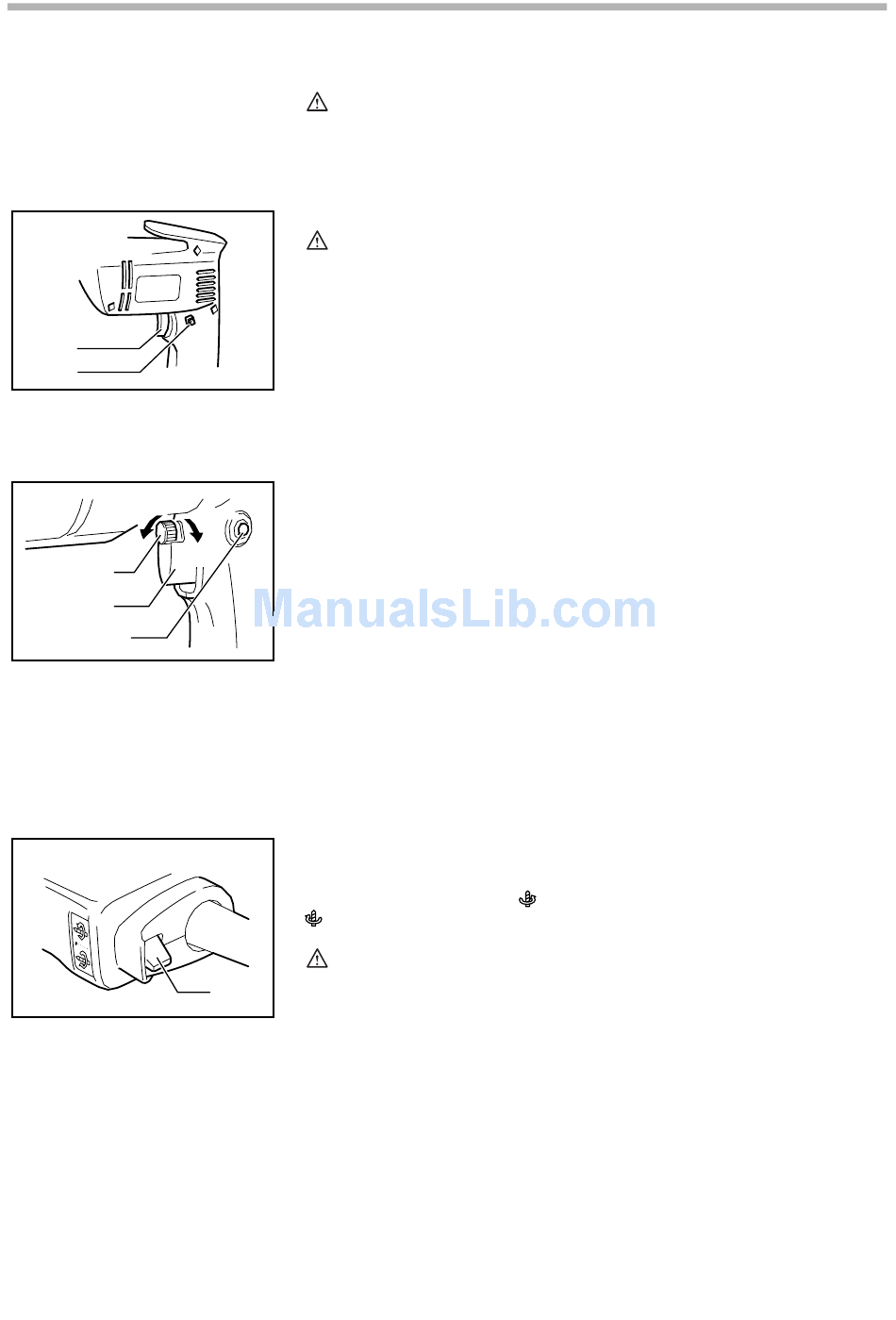

Switch action
•
005102
CAUTION:
• Before plugging in the tool, always check to see that the switch trigger
actuates properly and returns to the "OFF" position when released.
For 6010B
To start the tool, simply pull the switch trigger. Release the switch trigger to
stop.
For continuous operation, pull the switch trigger and then push in the lock but-
ton.
To stop the tool from the locked position, pull the switch trigger fully, then
release it.
For 6010BVR
004621
To start the tool, simply pull the switch trigger. Tool speed is increased by
increasing pressure on the switch trigger. Release the switch trigger to stop.
For continuous operation, pull the switch trigger and then push in the lock but-
ton.
2
To stop the tool from the locked position, pull the switch trigger fully, then
release it.
A speed control screw is provided so that maximum tool speed can be limited
(variable).
Turn the speed control screw clockwise for higher speed, and counterclock-
wise for lower speed.
Reversing switch action
004628
For 6010BVR
This tool has a reversing switch to change the rotational direction. Move the
reversing switch lever to the
position for counterclockwise (reverse) rotation.
CAUTION:
• Always check the rotational direction before operation.
1
• Use the reversing switch only after the tool comes to a complete stop. It
will damage the tool to change the rotational direction before the tool
stops.
position for clockwise (forward) rotation or the
