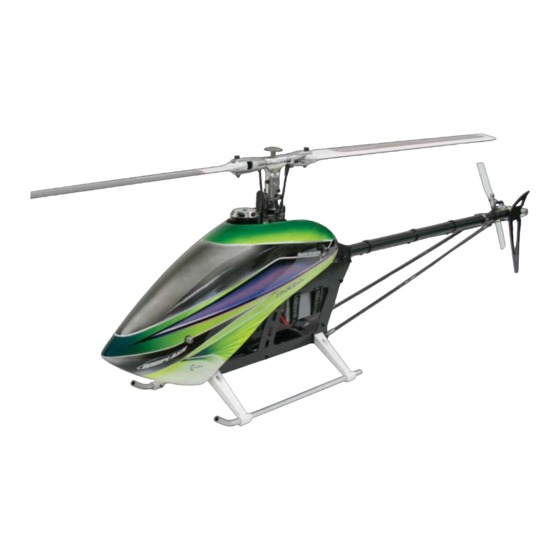

miniature aircraft X-Cell Whiplash Assembly Instructions Manual

Miniature aircraft electric helicopter kit ma1032 flybar/ ma1032-1 flybarless
Hide thumbs Also See for X-Cell Whiplash:
Table of Contents

Advertisement

Quick Links

Download this manual
Electric
Helicopter Kit
MA1032 Flybar
MA1032-1 Flybarless
Step up to excellence with X-Cell

Advertisement

Table of Contents
loading

Related Manuals for miniature aircraft X-Cell Whiplash

Summary of Contents for miniature aircraft X-Cell Whiplash

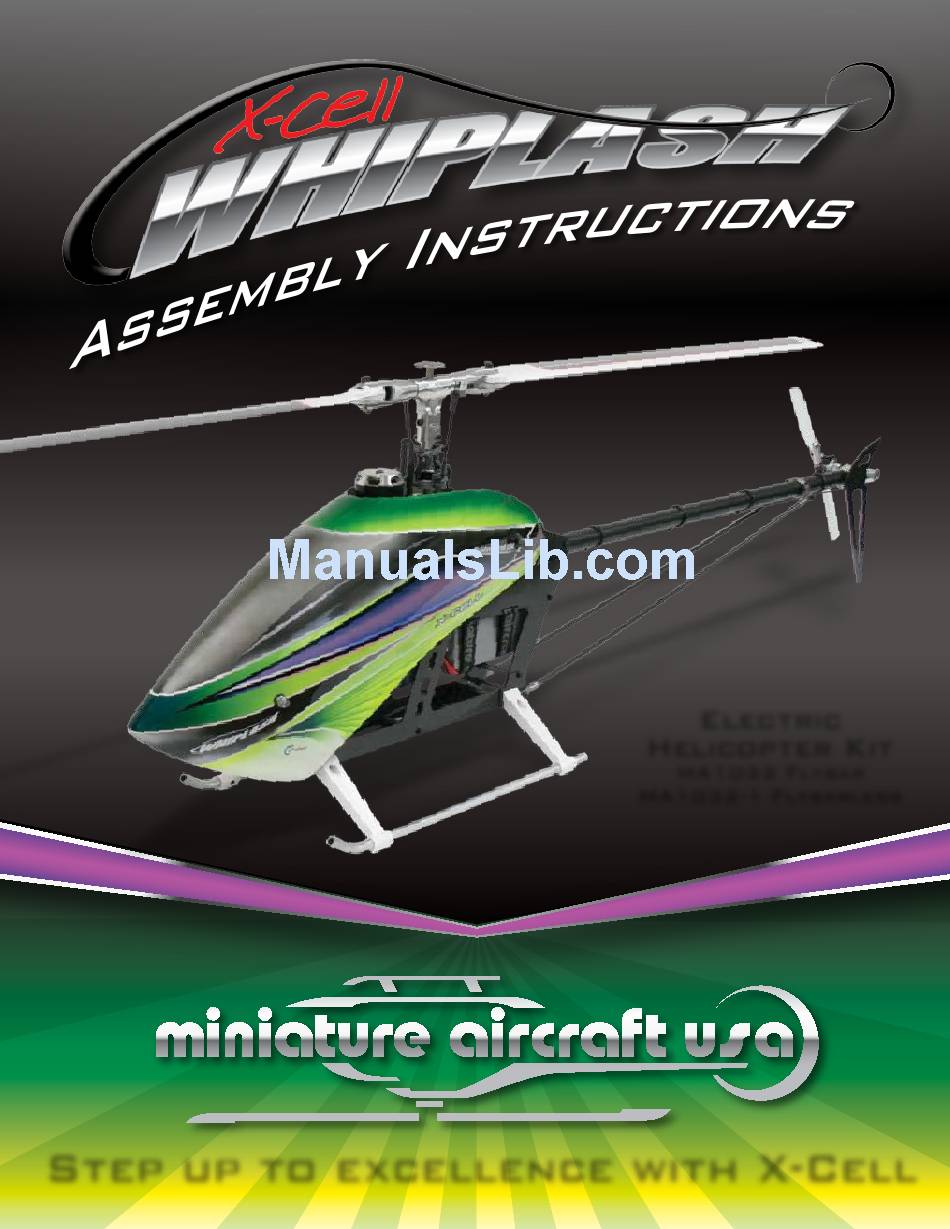

  • Page 1 Electric Helicopter Kit MA1032 Flybar MA1032-1 Flybarless Step up to excellence with X-Cell...

  • Page 2: Table Of Contents

    Table of Contents Kit Introduction ..........................3 R/C Helicopter Safety ........................3 Warning ..............................3 General Guidelines ..........................3 Academy of Model Aeronautics (AMA) ................... 4 Kit Assembly ............................5 Required Tools ............................5 Other Required Components ........................5 Assembly Tips ........................... 6 Kit Contents ............................7 Flybarless Head Assembly (Whiplash Kit #MA1032-1) ..............9 Flybarless Head Parts List ........................9 Flybarless Head Assembly Instructions ....................10 Flybarless Head Link Lengths .

  • Page 3: Kit Introduction

    Kit Introduction Thank you for purchasing the X-Cell Whiplash by Miniature Aircraft USA. This model is the culmination of years of designing and manufacturing R/C helicopters. It is designed with the highest standards, and will provide years of enjoyment. Whether this is your first R/C model helicopter or you are an advanced R/C helicopter modeler, the X-Cell Whiplash is a fantastic choice for a “700 size”...

  • Page 4: Academy Of Model Aeronautics (Ama)

    Academy of Model Aeronautics Miniature Aircraft USA highly recommends joining the Academy of Model Aeronautics (AMA). • AMA is the Academy of Model Aeronautics. • AMA is the world’s largest model aviation association, representing a membership of more than 150,000 from every walk of life, income level and age group.

  • Page 5: Kit Assembly

    14. Rotary Tool w/Grinding Bit Other required components: The X-Cell Whiplash is an airframe kit. To complete the model, several other items are required but are not included with the kit. There are many choices for these other required components, and any competent hobby retailer with R/C helicopter experience will be happy to make suggestions.
  • Page 6 • It is very important to lightly sand the edges of all carbon fiber pieces. Miniature Aircraft USA recommends doing so prior to the assembly process. Carbon fiber edges are sharp and can easily cut component wires and battery mounting straps.
  • Page 7 Kit Contents Please take some time to familiarize yourself with the contents of the kit. The Whiplash kit has been broken down into three “bags”. Each bag contains parts and hardware. The hardware for each bag will be used only for that bag. There will be no left over parts after each bag is assembled.
  • Page 8 Bag 2 - Tail Assembly Part No. Part Description Part No. Part Description 0133 M2x21.2 Ball Link 128-80 Front Boom Clamp 128-144 T/R Control Rod Guide 128-149a Upper Rear Boom Support Mount 131-57 Torque Tube Ends 128-149b Lower Rear Boom Support Mount 131-58 Torque Tube 131-60...

  • Page 9: Assembly Tip

    MA1032-1 - Flybarless Head Assembly Parts 0021 0023 0051 0061 0063 0064-4 0067 0082-4 M3x10 Socket Bolt M4 Hex Locknut M5 Hex Locknut M3x3 Socket Set M3x8 Socket Bolt M3x16 Button Head M3x14 Socket Bolt M5x32 Shouldered Screw Socket Bolt Socket Bolt 0086-1 0107...

  • Page 10: Assembly Tips

    0067 Hardware for 128-195 this assembly 131-190 0064-4 x 2 Apply M3x16 Button Head grease to Socket Bolt 131-190 Head Axle 0067 x 1 M3x14 Socket Bolt 131-187 0447-1 x 2 E-clip 128-176 x 2 M2x.584 Washout 131-368 128-176 Pivot Pin 0869 Assembly Tip •...
  • Page 11 Hardware for 0082-4 this assembly 0021 x 1 M4 Hex Locknut 0023 x 2 M5 Hex Locknut 0063 x 2 M3x10 Socket Bolt 0082-4 x 2 0023 M5x32 Shouldered Socket Bolt 0063 131-200 131-200 x 1 0021 M4x33 Shouldered Socket Bolt 0023 0063 131-308...
  • Page 12 MA1032 - Flybar Head Assembly Parts 0063 0021 0023 0050-1 0051 0057 0061 M3x10 Socket Bolt M4 Hex Locknut M5 Hex Locknut M2.5x3 Socket Set M3x3 Socket Set M4x4 Socket Set M3x8 Socket Bolt Screw Screw Screw 0064-3 0067 0071 0078-3 0082-4 0086-1...
  • Page 13 Hardware for this assembly 0051 0051 x 3 M3x3 Socket Set 0112 Screw 0109 0107 x 3 M3x6 Threaded Steel Ball 0109 x 2 M3x8 Threaded Steel 0051 Ball 0107 0107 0112 x 2 M3x9.5 Threaded 0217 Steel Ball 131-83 x 1 Swashplate Pin 0112 Assembly Tip...
  • Page 14 0067 Hardware for this assembly 131-190 128-195 0067 x 1 M3x14 Socket Bolt 131-168 0078-3 x 2 M4x6 Socket Bolt Apply grease to Head Axle 131-190 131-166 0112 x 2 0078-3 M3x9.5 Threaded Steel Ball 0112 131-187 131-166 131-157 0283 0283 0078-3 Assembly Tip...
  • Page 15 Bearings Factory Installed in Blade Grips 131-184 131-181 131-182 131-183 131-181 Large Small I.D. 120-7 I.D. 0086-1 Hardware for this assembly 0057 0021 x 1 M4 Hex Locknut 0057 x 2 M4x4 Socket Set 0021 Screw 0063 x 2 M3x10 Socket Bolt 0067 x 2 M5x16 Flanged Bolt 120-7 x 2...
  • Page 16 Hardware for this assembly 0082-4 0023 x 2 M5 Hex Locknut 0082-4 x 2 M5x32 Shouldered Socket Bolt 0023 0133 0023 0313 0135 0133-1 0133-1 120-25 121-4 0133-1 0133-1 72.5mm 19mm 32mm...

  • Page 17: Tail Assembly Parts List

    Tail Assembly Parts 0058-3 0009 0012-2 0016-1 0019 0051 0056 0059-0 M4x16 Socket Set 3mm Flat Steel M3 Pem Nut 4mm External 3mm Hex M3x3 Socket Set M3x5 Dog Point M2.5x4 Socket Bolt Screw Washer Serrated Lockwasher Locknut Screw Socket Screw 0059-1 0060-1 0061...
  • Page 18 0442 Hardware for this assembly 0225 0225 0107 x 1 M3x6 Threaded Steel Ball 0225 x 2 Pivot Pin for Washout 131-78 131-76 131-78 Factory 7mm Retaining Clip Assembled 131-74 131-73 0107 (not factory installed) 131-77 Apply a small amount of medium thread lock when threading into metal parts Hardware for...
  • Page 19 Hardware for this assembly 0073 0019 x 1 3mm Hex Nut 0159 Factory 0059-1 x 1 131-130 Assembled M2.5x6 Socket Bolt 0107 0064-3 x 2 131-132 0064-3 M3x6 Button Head (This part is not 0597-1 Socket Bolt factory installed) 0159 0059-1 0073 x 1 M3x20 Socket Bolt...
  • Page 20 Hardware for this assembly 0056 x 2 M3x5 Dog Point Socket Screw 0056 0056 Assembly Tip • Ensure the dog point tip is seated into the dimples on the tail rotor shaft. Apply a small amount of medium thread lock when threading into metal parts Hardware for this assembly...
  • Page 21 0319 Hardware for this assembly 131-80 131-81 0059-0 x 6 M2.5x4 Socket Bolt Bearings Factory Installed in Bearing Cup NOTE: Install both bearing cup assemblies facing the same direction on torque tube. 0059-0 131-58 131-57 0059-0 250mm 265mm NOTE: Carefully CA glue bearing assemblies to torque tube making sure bearing locations are NOT equal distances from torque tub ends.
  • Page 22 Assembly Tips • Use some light oil such as Tri-Flow into tail boom to ease installation for torque tube assembly. • Install the torque tube with the open ends of the bearing cups towards the back of the tail boom assembly. This will ensure the bearing stays seated in the bearing cup.

  • Page 23: Electric Frame Assembly

    Electric Frame Assembly Parts 0003 0004 0012-1 0012-2 0016-1 0017-2 0021 0032 0057 3mm Flat Steel M4 Washer 2.5mm Pem Nut 3mm Pem Nut 4mm External 2.5mm Hex Nut M4 Hex Locknut M3 Self Tapping M4x4 Set Screw Washer Serrated Lockwasher Screw 0061 0063...
  • Page 24 Apply a small amount of Hardware for medium thread lock when threading into metal parts this assembly Front Battery Tray 0064-3 0032 x 4 M3 Self Tapping Screw 0061 x 6 M3x8 Socket Bolt 0064-3 x 12 0064-3 M3x6 Button Head 128-57 Socket Bolt Assembly Tips...
  • Page 25 Apply a small amount of Hardware for Bearings Factory Installed medium thread lock when this assembly threading into metal parts 0159 0003 x 2 0159 0597-1 3mm Flat Steel Washer 0032 x 2 M3 Self Tapping Screw 0060-1 x 2 M3x6 Socket Bolt 0107 131-107...
  • Page 26 Hardware for this assembly Upper Main Shaft Bearing Block Middle Main Shaft Bearing Block (Factory Assembled) (Factory Assembled) 0060-1 x 10 M3x6 Socket Bolt 131-21 131-20 0063 x 4 M3x10 Socket Bolt 0064-3 x 3 M3x6 Button head Socket Bolt 131-19 Assembly Tip 131-19...
  • Page 27 Brushless Hardware for Motor this assembly (not included) If motor does not have flat spot on 0003 x 4 3mm Flat Steel motor shaft, grind a 5mm flat spot Washer on motor shaft 3.5mm to 8.5mm from motor can. 0057 x 2 M4x4 Set Screw 0061 x 8 Lower Pinion Bearing Block...
  • Page 28 Assembly Tips • Look ahead to page 32 to determine ESC location. If using MA’s recommended mounting 0060-1 position, mount ESC before 0032 installing left frame side. • Note - MA0060-1 M3x6 Socket Bolts are used for the main shaft 0003 bearing blocks 0061...
  • Page 29 Hardware for this assembly 0017-2 x 3 Servo 0017-2 2.5mm Hex Nut Arm Not Included 0059-1 x 4 M2.5x6 Socket Bolt 131-50 0116 0059-3 x 12 M2.5x10 Socket Bolt 0116 x 3 2.5mm Threaded Steel Ball Elevator Servo Assembly Tip 0059-3 131-148 •...
  • Page 30 Hardware for this assembly 0017-2 x 1 2.5mm Hex Nut 131-148 0059-3 x 4 M2.5x10 Socket Bolt 0059-3 0116 x 1 2.5mm Threaded Steel Ball 14mm Use of a heavy duty servo arm or wheel is 0116 0017-2 recommended on the rudder servo.
  • Page 31 Hardware for this assembly 0061 x 6 M3x8 Socket Bolt 0061 131-153 131-151 Rear canopy mounting bolt MA0061 installed into PEM nut in frame is optional. Installing bolt will decrease canopy vibration, but increase chance of damage to canopy in a crash. Apply a small amount of medium thread lock when threading into metal parts...

  • Page 32: Electronics Mounting Positions

    Suggested Electronics Mounting Positions Gyro Receiver Receiver Battery Regulator or BEC (mount to underside of front angled battery tray) Suggested Electronic Speed Control Locations ESC Location (optional) ESC Location (optional) ESC Location (recommended)
  • Page 33 0063 131-154 131-154 0063 106-22 Hardware for this assembly 0063 x 4 M3x10 Socket Bolt 131-152 106-22 x 4 106-22 Rubber Canopy Grommet Assembly Tips • The use of a hole reamer is recommended make the holes in the canopy for the canopy mounts. Final hole size should be 0.300”...

  • Page 34: Basic Model/Radio Set Up

    Basic Model/Radio set up The X-Cell Whiplash is an eCCPM model. This means that the servos that are connected to the swashplate move together to achieve the function requested from the transmitter input. The transmitter mixes the channels required to achieve the correct movement of the swashplate.

  • Page 35: Swashplate Eccpm Set Up

    Swashplate eCCPM Set Up: Now that you’ve built your new Whiplash helicopter, you have to make the servos work together. The Whiplash is an eCCPM model, and requires a specific radio program for the servos that control the swashplate. eCCPM is a mix that is already programmed in your transmitter, you just have to fine tune it to your Whiplash and here’s how: The very first thing you need to do is tell your radio that a 120 degree eCCPM mix must be used.

  • Page 36: Pitch Curve Set Up

    Pitch Curve Set Up: It is important that you build your model to exactly the way described in this manual. Make sure all your linkage rods are exactly the length determined in the manual included with your helicopter kit. First, go to the pitch curve menu in your radio for Idle up 1, or Stunt mode 1. You’ll see numbers, a graph or both. There will generally be 5 points you can adjust.

  • Page 37: Throttle Curve Set Up

    Choosing your power system: Outfitting your Whiplash with a power system is really easy if you follow Miniature Aircraft USA’s recommendations. A brushless electric motor KV Range approx 500-530kv suitable for use with a “.90”/700 size model, with 6mm shaft is recommended.
  • Page 38 Whiplash Kit Parts & Hardware 0003 M3 Washer 0840-27 Washout Head Pins 131-69-1 T/R Push Rod 0004 M4 Washer 0866-8 Sprag 131-70 Tail Output Shaft 0009 M3 Washer Small 0869 Washout Link 131-73 7x11x3 Bearing - Control Ring 131-74 Control Ring 0012-1 2.5mm Pem Nut 106-02...
  • Page 39 The warranty covers defects in material or workmanship or missing components to the original purchaser for 30 days from the date of purchase. Miniature Aircraft, USA will replace or repair, at our discretion, the defective or missing component. Defective components MUST BE returned to us prior to replacement.
  • Page 40 2885 Farley Lane • Billings, MT 59101, USA Phone: 1.406.245.4883 Website: http://www.miniatureaircraftusa.com Email: minair@miniatureaircraftusa.com...
