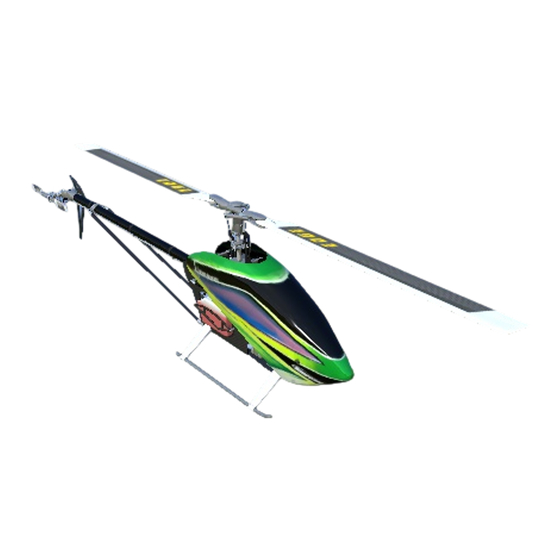

miniature aircraft X-Cell Whiplash Assembly Instructions Manual

Hide thumbs Also See for X-Cell Whiplash:
Table of Contents

Advertisement

Quick Links

Download this manual
Nitro
Helicopter Kit
MA1031 Flybar
MA1031-1 Flybarless
Step up to excellence with X-Cell

Advertisement

Table of Contents
loading

Related Manuals for miniature aircraft X-Cell Whiplash

Summary of Contents for miniature aircraft X-Cell Whiplash

  • Page 1 Nitro Helicopter Kit MA1031 Flybar MA1031-1 Flybarless Step up to excellence with X-Cell...

  • Page 2: Table Of Contents

    Table of Contents Kit Introduction ..........................3 R/C Helicopter Safety ........................3 Warning ..............................3 General Guidelines ..........................3 Academy of Model Aeronautics (AMA) ................... 4 Kit Assembly ............................5 Required Tools ............................5 Other Required Components ........................5 Assembly Tips ........................... 6 Kit Contents ............................7 Flybarless Head Assembly (Whiplash Kit #MA1031-1) ..............9 Flybarless Head Parts List ........................9 Flybarless Head Assembly Instructions ....................10 Flybarless Head Link Lengths .

  • Page 3: Kit Introduction

    Kit Introduction Thank you for purchasing the X-Cell Whiplash by Miniature Aircraft USA. This model is the culmination of years of designing and manufacturing R/C helicopters. It is designed with the highest standards, and will provide years of enjoyment. Whether this is your first R/C model helicopter or you are an advanced R/C helicopter modeler, the X-Cell Whiplash is a fantastic choice for a “700 size”...

  • Page 4: Academy Of Model Aeronautics (Ama)

    Academy of Model Aeronautics Miniature Aircraft USA highly recommends joining the Academy of Model Aeronautics (AMA). • AMA is the Academy of Model Aeronautics. • AMA is the world’s largest model aviation association, representing a membership of more than 150,000 from every walk of life, income level and age group.

  • Page 5: Kit Assembly

    13. Razor Knife (X-acto) Other required components: The X-Cell Whiplash is an airframe kit. To complete the model, several other items are required but are not included with the kit. There are many choices for these other required components, and any competent hobby retailer with R/C helicopter experience will be happy to make suggestions.
  • Page 6 • It is very important to lightly sand the edges of all carbon fiber pieces. Miniature Aircraft USA recommends doing so prior to the assembly process. Carbon fiber edges are sharp and can easily cut component wires and battery mounting straps.
  • Page 7 Kit Contents Please take some time to familiarize yourself with the contents of the kit. The Whiplash kit has been broken down into three “bags”. Each bag contains parts and hardware. The hardware for each bag will be used only for that bag. There will be no left over parts after each bag is assembled.
  • Page 8 Bag 2 - Tail Assembly Part No. Part Description Part No. Part Description 0133 M2x21.2 Ball Link 128-80 Front Boom Clamp 128-144 T/R Control Rod Guide 128-149a Upper Rear Boom Support Mount 131-57 Torque Tube Ends 128-149b Lower Rear Boom Support Mount 131-58 Torque Tube 131-60...

  • Page 9: Assembly Tip

    MA1031-1 - Flybarless Head Assembly Parts 0021 0023 0051 0061 0063 0064-4 0067 0082-4 M3x10 Socket Bolt M4 Hex Locknut M5 Hex Locknut M3x3 Socket Set M3x8 Socket Bolt M3x16 Button Head M3x14 Socket Bolt M5x32 Shouldered Screw Socket Bolt Socket Bolt 0086-1 0107...

  • Page 10: Assembly Tips

    0067 Hardware for 128-195 this assembly 131-190 0064-4 Apply M3x16 Button Head grease to Socket Bolt 131-190 Head Axle 0067 M3x14 Socket Bolt 131-187 0447-1 E-clip 128-176 M2x.584 Washout 131-368 128-176 Pivot Pin 0869 Assembly Tip • The use of a light grease such as MA3200-06 Tri-Flow Synthetic Grease 0447-1 0159...
  • Page 11 Hardware for 0082-4 this assembly 0021 M4 Hex Locknut 0023 M5 Hex Locknut 0063 M3x10 Socket Bolt 0082-4 0023 M5x32 Shouldered Socket Bolt 0063 131-200 131-200 0021 M4x33 Shouldered Socket Bolt 0023 0063 131-308 Apply a small amount of medium thread lock when threading into metal parts Link Arm Lengths and...
  • Page 12 MA1031 - Flybar Head Assembly Parts 0063 0064-3 0021 0023 0050-1 0051 0057 0061 M3x10 Socket Bolt M3x6 Button Head M4 Hex Locknut M5 Hex Locknut M2.5x3 Socket Set M3x3 Socket Set M4x4 Socket Set M3x8 Socket Bolt Socket Bolt Screw Screw Screw...
  • Page 13 Hardware for this assembly 0051 0051 M3x3 Socket Set 0112 Screw 0109 0107 M3x6 Threaded Steel Ball 0109 M3x8 Threaded Steel Ball 0051 0112 0107 0107 M3x9.5 Threaded Steel Ball 0217 131-83 Swashplate Pin Assembly Tip 0112 • Install MA0051 M3x3 Socket Set Screws only until they bottom out against the lower bearing.
  • Page 14 0067 Hardware for this assembly 131-190 128-195 0067 M3x14 Socket Bolt 131-168 0078-3 M4x6 Socket Bolt Apply grease to Head Axle 131-190 131-166 0112 0078-3 M3x9.5 Threaded Steel Ball 0112 131-187 131-166 131-157 0283 0283 0078-3 Assembly Tip 0112 • The use of a light grease such as Bearings and Cross MA3200-06 Tri-Flow Synthetic Grease 0840-27...
  • Page 15 Bearings Factory Installed in Blade Grips 131-184 131-181 131-182 131-183 131-181 Large Small I.D. 120-7 I.D. 0086-1 Hardware for this assembly 0057 0021 M4 Hex Locknut 0057 M4x4 Socket Set 0021 Screw 0063 M3x10 Socket Bolt 0067 M5x16 Flanged Bolt 120-7 M5x15 Carbon Fiber 0063...
  • Page 16 Hardware for this assembly 0082-4 0023 M5 Hex Locknut 0082-4 M5x32 Shouldered Socket Bolt 0023 0133 0023 0313 0135 0133-1 0133-1 120-25 121-4 0133-1 0133-1 72.5mm 19mm 32mm...

  • Page 17: Tail Assembly Parts List

    Tail Assembly Parts 0058-3 0009 0012-2 0016-1 0019 0051 0056 0059-0 M4x16 Socket Set 3mm Flat Steel M3 Pem Nut 4mm External 3mm Hex Locknut M3x3 Socket Set M3x5 Dog Point M2.5x4 Socket Bolt Screw Washer Serrated Lockwasher Screw Socket Screw 0059-1 0060-1 0061...
  • Page 18 0442 Hardware for this assembly 0225 0225 0107 M3x6 Threaded Steel Ball 0225 Pivot Pin for Washout 131-71 Factory Assembled 131-74 131-73 0107 (not factory installed) 131-72 Apply a small amount of medium thread lock when threading into metal parts Hardware for Factory Assembled this assembly...
  • Page 19 Hardware for this assembly 0069 0059-1 M2.5x6 Socket Bolt 0159 Factory 131-130 0064-3 Assembled M3x6 Button Head 0107 Socket Bolt 131-132 0064-3 (This part is not 0597-1 0069 factory installed) M3x16 Socket Bolt 0159 0059-1 0107 M3x6 Threaded 131-135 Steel Ball Factory 131-131 Assembled...
  • Page 20 Hardware for this assembly 0056 M3x5 Dog Point Socket Screw 0056 0056 Assembly Tip • Ensure the dog point tip is seated into the dimples on the tail rotor shaft. Apply a small amount of medium thread lock when threading into metal parts Hardware for this assembly 131-35...
  • Page 21 0319 Hardware for this assembly 131-80 131-81 0059-0 M2.5x4 Socket Bolt Bearings Factory Installed in Bearing Cup NOTE: Install both bearing cup assemblies facing the same direction on torque tube. 0059-0 131-58 131-57 0059-0 250mm 265mm NOTE: Carefully CA glue bearing assemblies to torque tube making sure bearing locations are NOT equal distances from torque tub ends.
  • Page 22 Assembly Tips • Use some light oil such as Tri-Flow into tail boom to ease installation for torque tube assembly. • Install the torque tube with the open ends of the bearing cups towards the back of the tail boom assembly. This will ensure the bearing stays seated in the bearing cup.

  • Page 23: Nitro Frame Assembly

    Nitro Frame Assembly Parts 0004 0009 0011-4 0012-1 0012-2 0014F 0016-1 0017-2 0021 0032 0053-5 0057 M4 Washer 3mm Flat Steel 5x15x.08 2.5mm Pem Nut 3mm Pem Nut 5mm Hex Nut 4mm External 2.5mm Hex Nut M4 Hex M3 Self M3x16 Socket M4x4 Set Screw Washer...
  • Page 24 Apply a small amount of Hardware for medium thread lock when this assembly threading into metal parts Front Battery Tray 0064-3 0011-4 5x15x.08 Washer 0014F 5mm Hex Nut Fine Thread 0032 0064-3 M3 Self Tapping Screw 128-57 0061 M3x8 Socket Bolt 0064-3 M3x6 Button Head Socket Bolt...
  • Page 25 Bearings Factory Installed Hardware for 0159 this assembly 0159 0597-1 0032 M3 Self Tapping Screw 0060-1 0107 M3x6 Socket Bolt 131-107 0061 M3x8 Socket Bolt 0069 M3x16 Socket Bolt 0107 0107 M3x6 Threaded 131-87 Steel Ball 131-109 0060-1 0061 0069 0032 131-107 0061...
  • Page 26 Hardware for Upper Main Shaft Middle Main Shaft Bottom Main Shaft this assembly Bearing Block Bearing Block Bearing Block (Factory Assembled) (Factory Assembled) (Factory Assembled) 0009 131-20 3mm Flat Steel 131-19 Washer 0060-1 M3x6 Socket Bolt 131-21 0061 131-19 M3x8 Socket Bolt 0064-3 0065 M3x12 Socket Bolt...
  • Page 27 Apply a small amount of Hardware for medium thread lock when this assembly threading into metal parts 128-118 0004 M4 Washer 0057 0057 M4x4 Socket Set 131-180 Screw 0063 M3x10 Socket Bolt Factory Assembled 0064-3 M3x6 Button Head 131-179 Socket Bolt 0183 0078-3 M4x6 Socket Bolt...
  • Page 28 Hardware for Apply a small amount of these assemblies medium thread lock when threading into metal parts 0009 3mm Flat Steel Washer 0061 0032 M3 Self Tapping 0063 Screw 0053-5 M3x16 Socket Set Screw 0060-1 0009 M3x6 Socket Bolt 0061 M3x8 Socket Bolt 0063 M3x10 Socket Bolt...
  • Page 29 Hardware for Apply a small amount of medium thread lock when these assemblies threading into metal parts 0057 M4x4 Set Screw 0061 M3x8 Socket Bolt 0081 M4x16 Socket Bolt Assembly Tip • Tighten the MA0057 M4x4 Set Screw securely against the landing gear tube using thick cyanoacrylate glue.
  • Page 30 Hardware for Apply a small amount of medium thread lock when these assemblies threading into metal parts 0060-1 131-133 M3x6 Socket Bolt 0063 0061 M3x8 Socket Bolt 0063 M3x10 Socket Bolt 0088 M3x8 Tapered Socket Bolt 131-145 131-144 131-146 0063 131-134 0060-1 0061...
  • Page 31 131-148 Hardware for (Optional these assemblies depending on servos) 0017-2 2.5mm Hex Nut 0116 0059-1 M2.5x6 Socket Bolt 0017-2 0059-3 M2.5x10 Socket Bolt 0116 M2.5 Threaded Steel 0059-1 Ball Assembly Tip Servo Arm Not Included • MA131-148 Servo Spacers are included for proper servo linkage 131-148 alignment, if required.
  • Page 32 Hardware for these assemblies 0004 M4 Washer 0017-2 0016-1 4mm External 0116 Serrated Lockwasher 0017-2 2.5mm Hex Nut 0021 M4 Hex Locknut 0059-3 M2.5x10 Socket Bolt 0133-1 0061 M3x8 Socket Bolt 122-94 0081 0133-1 M4x16 Socket Bolt 0017-2 0116 0116 0059-3 M2.5 Threaded Steel Ball...

  • Page 33: Electronics Mounting Positions

    Suggested electronics Mounting Positions and Fuel Line Route Switch Location #1 Gyro Receiver Receiver Battery Suggested Fuel Line Route for Crank Case Pressure Engines Switch Location #2 Regulator or Remote Glow Ignitor 0063 131-154 131-154 106-22 0063 Hardware for Assembly Tips 131-152 this assembly 106-22...

  • Page 34: Basic Model/Radio Set Up

    Basic Model/Radio set up The X-Cell Whiplash is an eCCPM model. This means that the servos that are connected to the swashplate move together to achieve the function requested from the transmitter input. The transmitter mixes the channels required to achieve the correct movement of the swashplate.

  • Page 35: Swashplate Eccpm Set Up

    Swashplate eCCPM Set Up: Now that you’ve built your new Whiplash helicopter, you have to make the servos work together. The Whiplash is an eCCPM model, and requires a specific radio program for the servos that control the swashplate. eCCPM is a mix that is already programmed in your transmitter, you just have to fine tune it to your Whiplash and here’s how: The very first thing you need to do is tell your radio that a 120 degree eCCPM mix must be used.

  • Page 36: Pitch Curve Set Up

    Pitch Curve Set Up: It is important that you build your model to exactly the way described in this manual. Make sure all your linkage rods are exactly the length determined in the manual included with your helicopter kit. First, go to the pitch curve menu in your radio for Idle up 1, or Stunt mode 1. You’ll see numbers, a graph or both. There will generally be 5 points you can adjust.

  • Page 37: Throttle Curve Set Up

    If you have chosen a Flybarless model, it is possible to fly your model without additional stabilization electronics, but Miniature Aircraft USA highly recommends using Flybarless Stabilization Electronics. There are several that are commercially available, and while they all generally accomplish the same thing, they all are set up and programmed differently.
  • Page 38 Whiplash Kit Parts & Hardware 0004 M4 Washer 105-70 6x15x5 Bearing 131-70 Tail Output Shaft 0009 M3 Washer Small 106-02 3x7x3 Flanged Bearing 131-71 Tail Pitch Yoke 0011-4 M5x15x.08 Washer 106-05 Metal Washout Arm 131-72 Brass Slider 0012-1 2.5mm Pem Nut 106-06 2x5x1.5 Flanged Bearing 131-73...
  • Page 39 The warranty covers defects in material or workmanship or missing components to the original purchaser for 30 days from the date of purchase. Miniature Aircraft, USA will replace or repair, at our discretion, the defective or missing component. Defective components MUST BE returned to us prior to replacement.
  • Page 40 2885 Farley Lane • Billings, MT 59101, USA Phone: 1.406.245.4883 Website: http://www.miniatureaircraftusa.com email: minair@miniatureaircraftusa.com...
