Summary of Contents for miniature aircraft X-Cell Whiplash MA1033

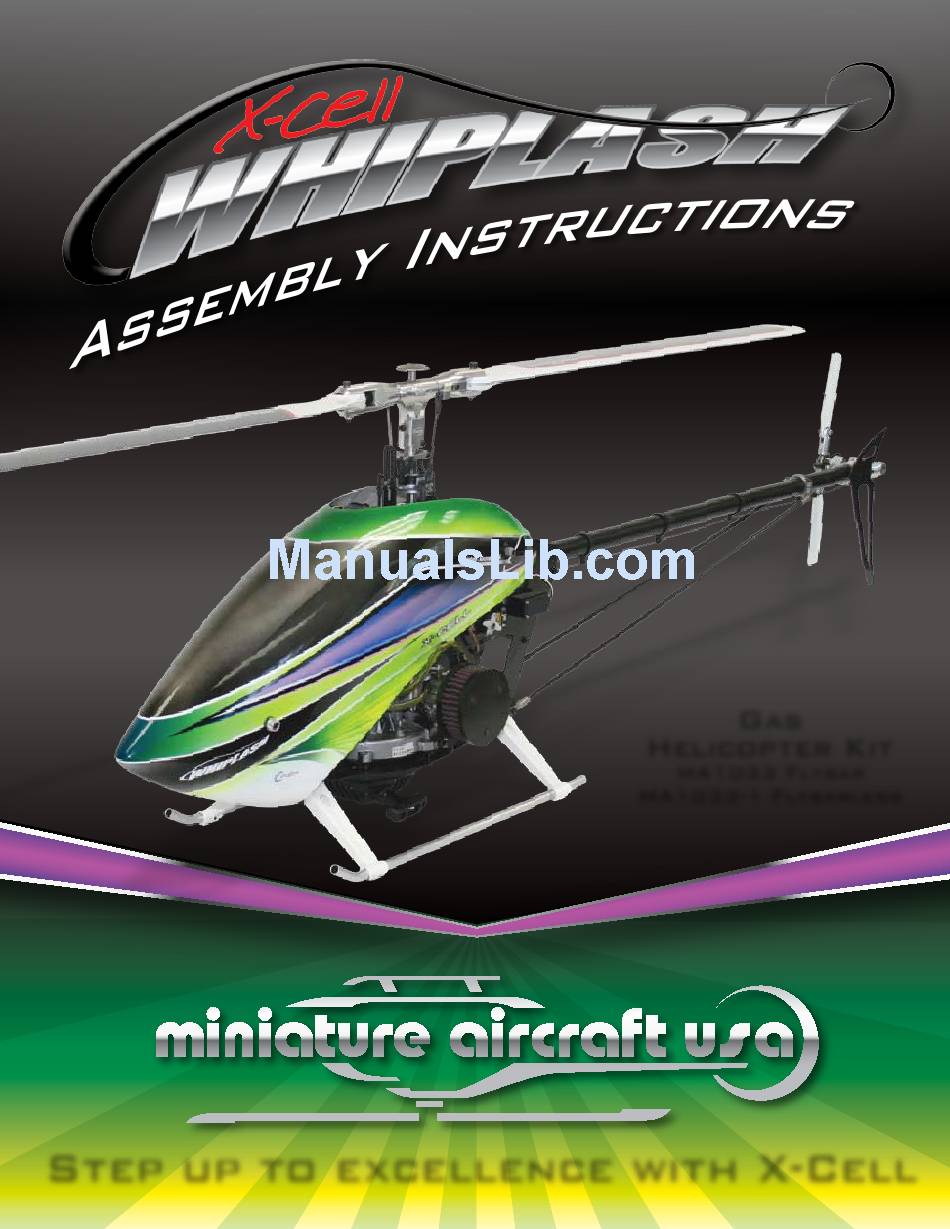

  • Page 1 Helicopter Kit MA1033 Flybar MA1033-1 Flybarless Step up to excellence with X-Cell...
  • Page 2: Table Of Contents

    Pitch Curves ............................37 Gear Ratios ............................37 Running ..............................37 Additional Support References ......................37 Kit Hardware and Parts ........................38 Warranty Information ........................39 For updates to this manual, or any other Miniature Aircraft USA manual, go to www.miniatureaircraftusa.com and follow the “Manuals” link.
  • Page 3: Kit Introduction

    Kit Introduction Thank you for purchasing the X-Cell Whiplash by Miniature Aircraft USA. This model is the culmination of years of designing and manufacturing R/C helicopters. It is designed with the highest standards, and will provide years of enjoyment. Whether this is your first R/C model helicopter or you are an advanced R/C helicopter modeler, the X-Cell Whiplash is a fantastic choice for a “700 size”...
  • Page 4: Academy Of Model Aeronautics (Ama)

    Academy of Model Aeronautics Miniature Aircraft USA highly recommends joining the Academy of Model Aeronautics (AMA). • AMA is the Academy of Model Aeronautics. • AMA is the world’s largest model aviation association, representing a membership of more than 150,000 from every walk of life, income level and age group.
  • Page 5: Kit Assembly

    1. Engine, 23-29cc R/C format gas engine 2. Helicopter style muffler suited to the engine you choose. 3. Cyclic servos (Miniature Aircraft USA recommends high quality digital cyclic servos with no less than 80 oz. in. of torque.) 4. Throttle servo (Miniature Aircraft USA recommends a high quality ball bearing sevro) 4.
  • Page 6: Assembly Tips

    • It is very important to lightly sand the edges of all carbon fiber pieces. Miniature Aircraft USA recommends doing so prior to the assembly process. Carbon fiber edges are sharp and can easily cut component wires and battery mounting straps.
  • Page 7: Kit Contents

    Kit Contents Please take some time to familiarize yourself with the contents of the kit. The Whiplash kit has been broken down into three “bags”. Each bag contains parts and hardware. The hardware for each bag will be used only for that bag. There will be no left over parts after each bag is assembled.
  • Page 8 Bag 2 - Tail Assembly Part No. Part Description Part No. Part Description 0133 M2x21.2 Ball Link 128-80 Front Boom Clamp 128-144 T/R Control Rod Guide 128-149a Upper Rear Boom Support Mount 131-57 Torque Tube Ends 128-149b Lower Rear Boom Support Mount 131-58 Torque Tube 131-60...
  • Page 9: Flybarless Head Assembly (Whiplash Kit #Ma1033-1)

    MA1033-1 - Flybarless Head Assembly Parts 0021 0023 0051 0061 0063 0064-4 0067 0082-4 M3x10 Socket Bolt M4 Hex Locknut M5 Hex Locknut M3x3 Socket Set M3x8 Socket Bolt M3x16 Button Head M3x14 Socket Bolt M5x32 Shouldered Screw Socket Bolt Socket Bolt 0086-1 0107...
  • Page 10: Flybarless Head Assembly Instructions

    0067 Hardware for 128-195 this assembly 131-190 0064-4 x 2 Apply M3x16 Button Head grease to Socket Bolt 131-190 Head Axle 0067 x 1 M3x14 Socket Bolt 131-187 0447-1 x 2 E-clip 128-176 x 2 M2x.584 Washout 131-368 128-176 Pivot Pin 0869 Assembly Tip •...
  • Page 11: Flybarless Head Link Lengths

    Hardware for 0082-4 this assembly 0021 x 1 M4 Hex Locknut 0023 x 2 M5 Hex Locknut 0063 x 2 M3x10 Socket Bolt 0082-4 x 2 0023 M5x32 Shouldered Socket Bolt 0063 131-200 131-200 x 1 0021 M4x33 Shouldered Socket Bolt 0023 0063 131-308...
  • Page 12: Flybar Head Assembly (Whiplash Kit #Ma1033)

    MA1033 - Flybar Head Assembly Parts 0063 0021 0023 0050-1 0051 0057 0061 M3x10 Socket Bolt M4 Hex Locknut M5 Hex Locknut M2.5x3 Socket Set M3x3 Socket Set M4x4 Socket Set M3x8 Socket Bolt Screw Screw Screw 0064-3 0067 0071 0078-3 0082-4 0086-1...
  • Page 13: Flybar Head Assembly Instructions

    Hardware for this assembly 0051 0051 x 3 M3x3 Socket Set 0112 Screw 0109 0107 x 3 M3x6 Threaded Steel Ball 0109 x 2 M3x8 Threaded Steel Ball 0051 0112 x 2 0107 0107 M3x9.5 Threaded Steel Ball 0217 131-83 x 1 Swashplate Pin Assembly Tip 0112...
  • Page 14 0067 Hardware for this assembly 131-190 128-195 0067 x 1 M3x14 Socket Bolt 131-168 0078-3 x 2 M4x6 Socket Bolt Apply grease to Head Axle 131-190 131-166 0112 x 2 0078-3 M3x9.5 Threaded Steel Ball 0112 131-187 131-166 131-157 0283 0283 0078-3 Assembly Tip...
  • Page 15 Bearings Factory Installed in Blade Grips 131-184 131-181 131-182 131-183 131-181 Large Small I.D. 120-7 I.D. 0086-1 Hardware for this assembly 0057 0021 x 1 M4 Hex Locknut 0057 x 2 M4x4 Socket Set 0021 Screw 0063 x 2 M3x10 Socket Bolt 0067 x 2 M5x16 Flanged Bolt 120-7 x 2...
  • Page 16: Flybar Head Link Lengths

    Hardware for this assembly 0082-4 0023 x 2 M5 Hex Locknut 0082-4 x 2 M5x32 Shouldered Socket Bolt 0023 0133 0023 0313 0135 0133-1 0133-1 120-25 121-4 0133-1 0133-1 72.5mm 19mm 32mm...
  • Page 17: Tail Assembly

    Tail Assembly Parts 0058-3 0009 0012-2 0016-1 0019 0051 0056 0059-0 M4x16 Socket Set 3mm Flat Steel M3 Pem Nut 4mm External 3mm Hex Locknut M3x3 Socket Set M3x5 Dog Point M2.5x4 Socket Bolt Screw Washer Serrated Lockwasher Screw Socket Screw 0059-1 0060-1 0061...
  • Page 18: Tail Assembly Instructions

    0442 Hardware for this assembly 0225 0225 0107 x 1 M3x6 Threaded Steel Ball 0225 x 2 Pivot Pin for Washout 131-78 131-76 131-78 Factory 7mm Retaining Clip Assembled 131-74 131-73 0107 (not factory installed) 131-77 Apply a small amount of medium thread lock when threading into metal parts Hardware for...
  • Page 19 Hardware for this assembly 0073 0019 x 1 3mm Hex Nut 0159 Factory 0059-1 x 1 131-130 Assembled M2.5x6 Socket Bolt 0107 0064-3 x 2 131-132 0064-3 M3x6 Button Head (This part is not 0597-1 Socket Bolt factory installed) 0159 0059-1 0073 x 1 M3x20 Socket Bolt...
  • Page 20 Hardware for this assembly 0056 x 2 M3x5 Dog Point Socket Screw 0056 0056 Assembly Tip • Ensure the dog point tip is seated into the dimples on the tail rotor shaft. Apply a small amount of medium thread lock when threading into metal parts Hardware for this assembly...
  • Page 21 0319 Hardware for this assembly 131-80 131-81 0059-0 x 6 M2.5x4 Socket Bolt Bearings Factory Installed in Bearing Cup NOTE: Install both bearing cup assemblies facing the same direction on torque tube. 0059-0 131-58 131-57 0059-0 250mm 265mm NOTE: Carefully CA glue bearing assemblies to torque tube making sure bearing locations are NOT equal distances from torque tub ends.
  • Page 22 Assembly Tips • Use some light oil such as Tri-Flow into tail boom to ease installation for torque tube assembly. • Install the torque tube with the open ends of the bearing cups towards the back of the tail boom assembly. This will ensure the bearing stays seated in the bearing cup.
  • Page 23: Gas Frame Assembly

    Gas Frame Assembly Parts 0003 0004 0012-1 0014F 0016-1 0017-2 0011 0011-4 0012-2 0013 0015 4mm External 2.5mm Hex Nut 3mm Flat Steel M4 Washer 5mm Washer 5x15x.08 2.5mm Pem Nut 3mm Pem Nut 5mm Hex Nut 5mm Hex Nut 2mm Hex Nut Washer Washer...
  • Page 24: Gas Frame Assembly Instructions

    Apply a small amount of Hardware for medium thread lock when these assemblies threading into metal parts Front Battery Tray 0064-3 0011 x 1 5mm Washer 0013 x 1 5mm Hex Nut 0011-4 x 1 0064-3 5x15x.08 Washer 128-57 0014F x 1 5mm Hex Nut Fine Thread 0032 x 4...
  • Page 25 Hardware for Upper Main Shaft Middle Main Shaft Bottom Main Shaft this assembly Bearing Block Bearing Block Bearing Block (Factory Assembled) (Factory Assembled) (Factory Assembled) 131-20 0003 x 2 131-19 3mm Flat Steel Washer 0032 x 2 M3 Self Tapping Screw 131-21 131-19...
  • Page 26 Apply a small amount of Hardware for medium thread lock when these assemblies threading into metal parts 0065 131-186 0060-1 x 10 M3x6 Socket Bolt 0065 x 4 131-47 M3x12 Socket Bolt (JR Servos Only) 131-21 Assembly Tip • If using JR brand servos or other 131-46 “tall”...
  • Page 27 Hardware for 128-118 these assemblies 17 Tooth 18 Tooth 0057 131-180 (included in kit) 0003 x 2 19 Tooth 3mm Flat Steel Washer Factory Assembled 0057 x 2 131-179 M4x4 Socket Set Screw 0183 0061 x 2 M3x8 Socket Bolt 0063 x 2 M3x10 Socket Bolt 133-18...
  • Page 28 Hardware for these assemblies 0003 x 4 3mm Flat Steel 133-117 Washer 0032 x 2 M3 Self Tapping Screw 0060-1 x 6 Servo Arm M3x6 Socket Bolt (not included) 131-148 0061 x 9 M3x8 Socket Bolt 0017-2 0116 0017-2 x 1 2.5mm Hex Nut 0059-7 x 4 M2.5x20 Socket Bolt...
  • Page 29 Hardware for these assemblies 0003 x 4 3mm Flat Steel Washer 0061 x 12 M3x8 Socket Bolt 0063 x 4 M3x10 Socket Bolt 0085 x 4 M5x16 Socket Bolt 133-119 x2 133-107 Flanged Clutch 0003 Spacer 0063 Assembly Tip 0061 •...
  • Page 30 Hardware for Apply a small amount of medium thread lock when these assemblies threading into metal parts 0057 x 4 M4x4 Socket Set Screw 0060-1 x 4 M3x6 Socket Bolt 0061 x 2 M3x8 Socket Bolt 0081 x 4 M4x16 Socket Bolt 133-135 0081 131-139...
  • Page 31 Hardware for Apply a small amount of medium thread lock when these assemblies threading into metal parts 0017-2 x 3 2.5mm Hex Nut 0059-1 x 4 M2.5x6 Socket Bolt 0061 0059-3 x 12 M2.5x10 Socket Bolt 0061 0061 x 6 M3x8 Socket Bolt 131-150 0116 x 3...
  • Page 32 Hardware for Apply a small amount of these assemblies medium thread lock when threading into metal parts 0004 x 1 M4 Washer 0103 0015 x 1 2mm Hex Nut 0016-1 x 2 Servo 4mm External Arm Not Serrated Lockwasher Included 131-148 0017-2 x 1 0059-3...
  • Page 33: Electronics Mounting Positions

    Suggested electronics Mounting Positions Gyro Receiver Receiver Battery Switch Location #2 Switch (right side) Location #1 (left side) 0063 131-154 131-154 106-22 0063 131-152 Hardware for Assembly Tips 106-22 this assembly • The use of a hole reamer is recommended make the holes in the 0063 x 4 canopy for the canopy mounts.
  • Page 34: Whiplash Gas User Guide

    Whiplash Gas User Guide Operating and maintaining your Whiplash Gas helicopter is not much different than the other Whiplash versions or any other model helicopter. The power system is different and its operation may be unfamiliar to those who have only flown electric or glow powered models.
  • Page 35: Mufflers

    The Zenoah RC format motors ship with an air cleaner. It is recommended that you always use an air cleaner whether it’s the stock one or an optional one such as those offered by Miniature Aircraft. Running an unfiltered intake will shorten the life of the motor especially in the case of a crash where a large amount of foreign matter can be ingested into the motor.
  • Page 36: Throttle Setup/Curves

    Throttle Setup/curves Turn the idle set screw on the carburetor counter-clockwise until the throttle control arm no longer touches the screw at its full low position Set the throttle channel at 50% of travel and then center the servo arm at a 90 degree angle to horizontal. Install the ball on the bottom section of the arm 12mm from the center of the servo Set the ATV’s of the throttle channel to 130% on both high and low ends.
  • Page 37: Rotor Blades

    If it stops on spool up, adjust the low speed needle, if it stops while flying adjust the high speed needle. These are over simplifications of the tuning process for more information consult with Miniature Aircraft USA or with a local Team representative or consult one of the gas specific forums mentioned at the end of this section.
  • Page 38: Kit Hardware And Parts

    Whiplash Kit Parts & Hardware 0003 M3 Washer 0409 Outer Nipple for 90 Degree Fitting 131-60 C/F Tail Fin 0004 M4 Washer 0442 T/R Pitch Link 131-62 Tail Boom 0009 M3 Washer Small 0447-1 M2 E Clip 131-64 Tail Hub 0011 5mm Washer 0597-1...
  • Page 39: Warranty Information

    The warranty covers defects in material or workmanship or missing components to the original purchaser for 30 days from the date of purchase. Miniature Aircraft, USA will replace or repair, at our discretion, the defective or missing component. Defective components MUST BE returned to us prior to replacement.
  • Page 40 2885 Farley Lane • Billings, MT 59101, USA Phone: 1.406.245.4883 Website: http://www.miniatureaircraftusa.com email: minair@miniatureaircraftusa.com...
