3 port pci express usb 3.0 card with gigabit ethernet - sata power (2 pages)
Summary of Contents for StarTech.com PEXUSB3S4
Page 1

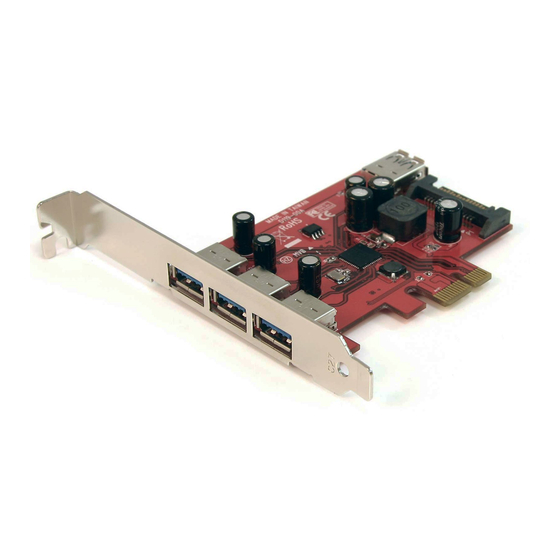

4 Port SuperSpeed USB 3.0 PCI Express Card with SATA Power StarTech ID: PEXUSB3S4 The PEXUSB3S4 4-Port PCI Express SuperSpeed USB 3.0 Card (with SATA Power) adds 3 external USB 3.0 ports and an internal USB 3.0 port to any PCI Express-enabled computer system. With SuperSpeed USB 3.0, you can reach data transfer speeds up to 5 Gbps, while still being backward compatible with existing USB 2.0 devices...
Page 2
5 Gbps Built-in optional SATA power connector for bus-powered USB devices Optionally provides up to 900mA per USB port Backward compatible with USB 2.0 and USB 1.0/1.1 devices Compliant with PCI Express 2.0 specifications Includes a Low Profile/half-height installation bracket intrl.startech.com...
Page 3
The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps. Shipping 6.7 oz [190 g] (Package) Weight intrl.startech.com...
Page 4
Included in 1 - PCI Express USB 3.0 card Package Included in 1 - Low Profile Bracket Package Included in 1 - Driver CD Package Included in 1 - Instruction Manual Package Certifications, Reports and Compatibility intrl.startech.com...
