StarTech.com PEXUSB3S7 Instruction Manual

Instruction Manual

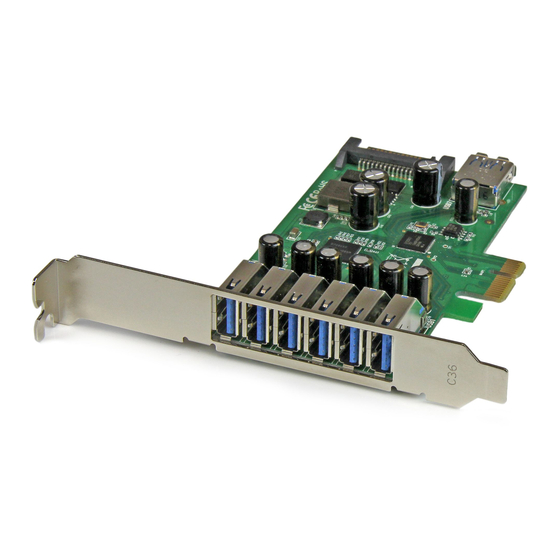

7 Port PCI Express SuperSpeed USB 3.0 Card with UASP - SATA Power
PEXUSB3S7
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1x 7 Port PCI Express USB 3.0 Card
• 1x Low-Profile Bracket
• 1x Driver CD
• 1x Instruction Manual
System Requirements
• PCI Express enabled computer with an available PCI Express x1 slot
or higher (x4, x8, x16)
• SATA power connector (highly recommended, but optional)
• Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64),
Windows Server® 2012, 2008 R2, Linux 2.6.31 and up (Tested up to
3.5)

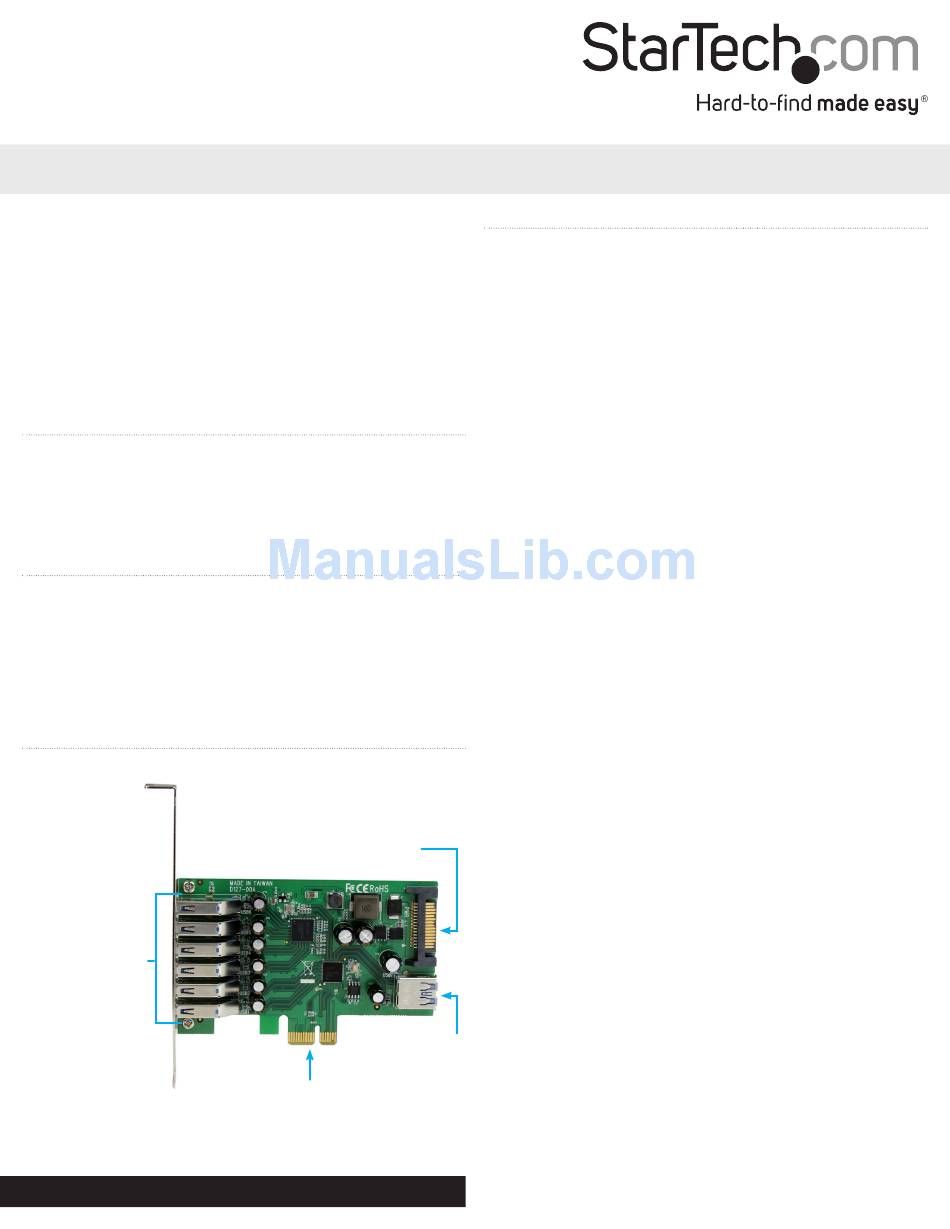

Product Overview
USB 3.0 Ports Type
"A" Female x6
For the most up-to-date information, please visit: www.startech.com
SATA Power
Internal USB 3.0
Port Type "A"
Female
PCI Express x1
Installation
Hardware Installation
WARNING!
PCI Express cards, like all computer equipment, can be severely
damaged by static electricity. Be sure that you are properly
grounded before opening your computer case or touching your PCI
Express card. StarTech.com recommends that you wear an anti-
static strap when installing any computer component. If an anti-
static strap is unavailable, discharge yourself of any static electricity
build-up by touching a large grounded metal surface (such as the
computer case) for several seconds. Also be careful to handle the PCI
Express card by its edges and not the gold connectors.
1. Turn your computer off and any peripherals connected to the
computer (i.e. printers, external hard drives, etc.). Unplug the
power cable from the rear of the power supply on the back of the
computer and disconnect all peripheral devices.
2. Remove the cover from the computer case. (See documentation
for your computer system for details).
3. Locate an open PCI Express x1 slot and remove the metal cover
plate on the rear of the computer case (See documentation for
your computer system for details).
Note: This card will work in PCI Express slots of additional lanes (i.e.
x4, x8, or x16 slots).
4. Gently insert the card into the open PCI Express slot and fasten
the bracket to the rear of the computer case.
Note: If installing the card into a small form-factor/low-profile
desktop system, replacing the pre-installed standard-profile bracket
with the included low-profile (half-height) installation bracket may
be necessary.
5. It is highly recommended you connect the optional SATA power
using an available SATA power connector from the computers
power supply.
Note: It is highly recommended that SATA power is connected to the
card to ensure sufficient power is provided to each USB 3.0 port.
6. Place the cover back onto the computer case.
7. Insert the power cable into the socket on the power supply of the
computer, and reconnect all other connectors removed in Step 1.
Manual Revision: 01/22/2015
