Highway
300Di
Installation Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Highway 300Di and is the answer not in the manual?

Questions and answers

Related Manuals for PURE Highway 300Di

Summary of Contents for PURE Highway 300Di

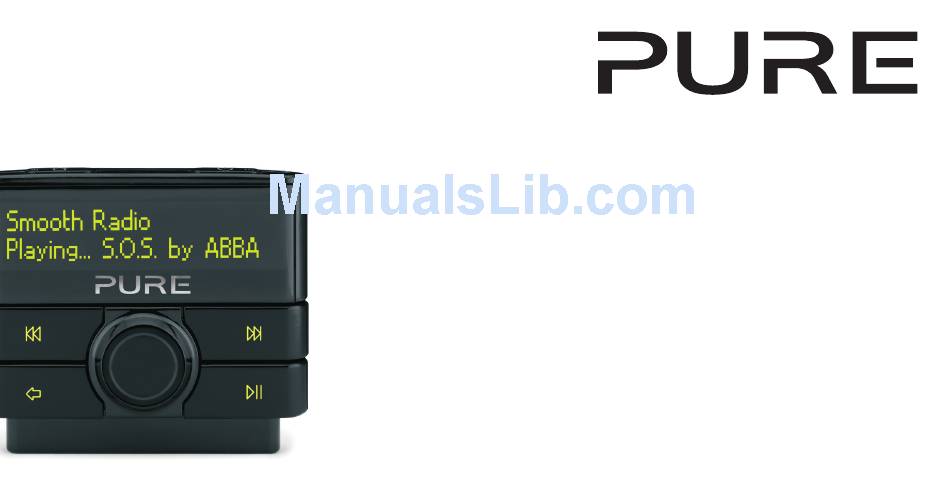

  • Page 1 Highway 300Di Installation Manual...

  • Page 2: Safety Instructions

    Safety instructions Warning Fit the unit and the antenna in a position that does not obscure the driver’s view. Fit the unit securely. Do not fit the unit or the antenna in such a way that may interfere with the safe operation of the vehicle, the deployment of air bags or other safety equipment. Avoid objects or liquids getting into the unit.

  • Page 3: Table Of Contents

    Contents Kit list Considerations before starting Installation checklist Wiring diagram Fit cables and connections Installer settings Spare parts...

  • Page 4: Kit List

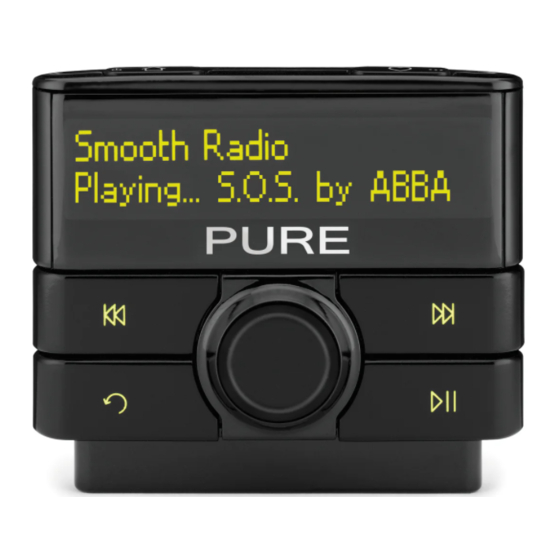

    Kit list The following items are included in the Highway 300Di kit as standard: • Highway 300Di Controller • Highway 300Di Main Unit • Highway 300Di Controller bracket with captive cable • Highway 300Di Controller mount with adjustable angle • Wiring loom with ISO connectors •...

  • Page 5: Considerations Before Starting

    Settings > Software update. Visit http://support.pure.com to see if there is a later software version available. Download the file and copy it to a USB stick. For instructions on how to install a software update see page 15 of the Owner’s manual.

  • Page 6: Installation Checklist

    Before installation • Check that the supplied antenna cable will reach or use a suitable antenna extension (2.5m cable available from Pure). Review car and existing audio installation and discuss options with customer: • Discuss controller placement with the customer - consider cable length...
  • Page 7 After installation Check that Highway is functioning as expected. Once correct function of all connections has been checked, fasten connectors to main unit with cable ties as required and securely mount the main unit in place. Route and tie any cables securely in place and replace any trim panels. Select Restore defaults from the Settings menu to reset any changes made during testing.

  • Page 8: Wiring Diagram

    * On some vehicles switched and permanent live connections may be reversed. Open the fuse holders and swap the connectors if required. ** Highway 300Di only supports approved Pure 5V antennas. Standard 12V automotive digital antennas will not work on Highway 300Di.

  • Page 9: Fit Cables And Connections

    Note: If the Line out connection on Highway is used the FM transmit/pass through is disabled. 1. As soon as the power is connected, Highway 300Di will switch on automatically, once it has started up it will ask you to select a 3.

  • Page 10: Installer Settings

    Performs a scan for digital stations as per initial start-up. Spare parts Spares and accessories are available for Highway 300Di. To order a spare part or accessory from the UK, please e-mail: pure.tradesales@pure.com. To order a spare part or accessory from Australia, please e-mail: sales.au@pure.com.
  • Page 12 Pure UK Headquarters Pure Australasia Pty Ltd Imagination Technologies Ltd. PO Box 5049 Home Park Estate Wonga Park Kings Langley Victoria 3115 Herts, WD4 8LZ Australia United Kingdom sales.au@pure.com www.pure.com http://support.pure.com/au http://support.pure.com 103YS...
