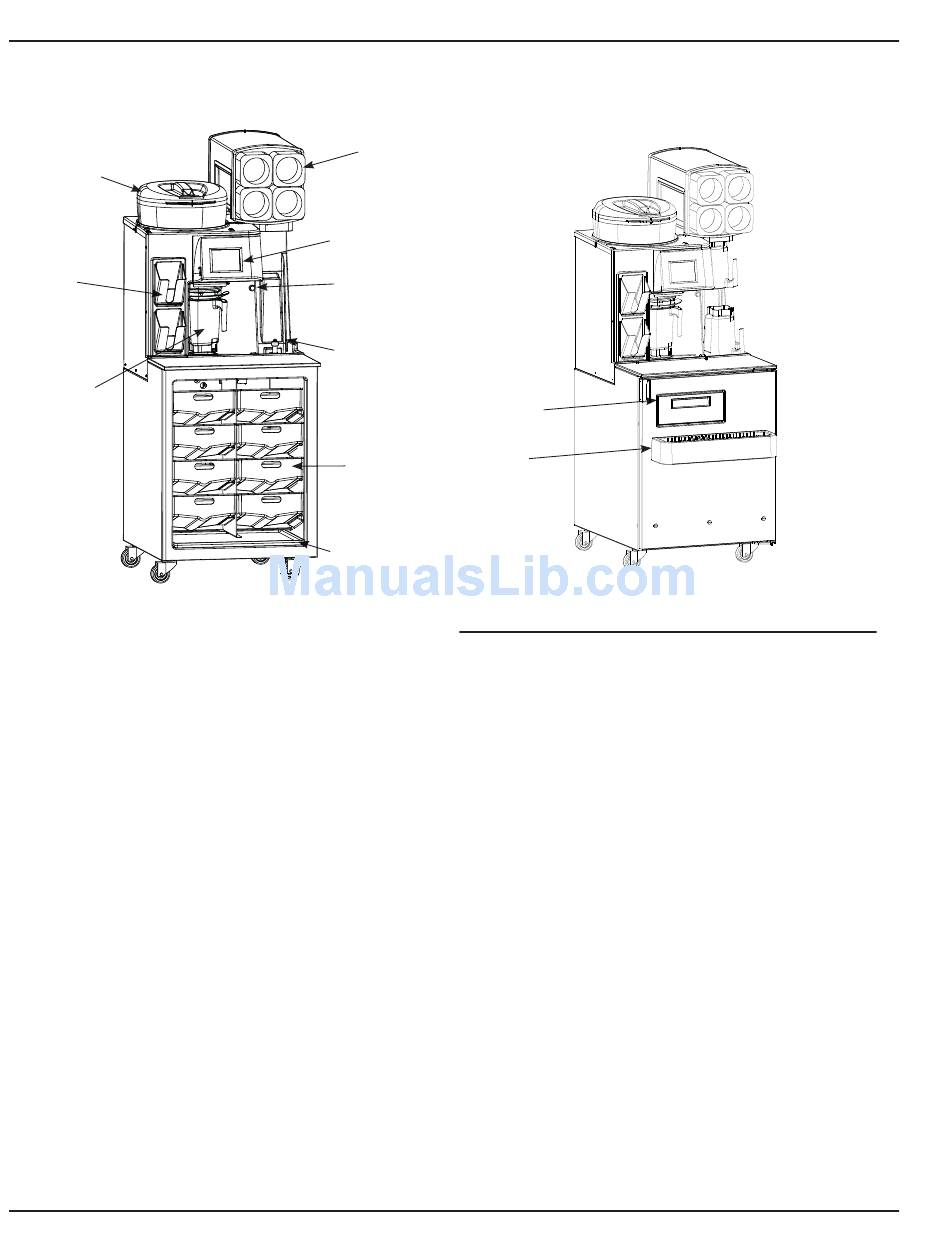

Component Identifi cation
Ice Hopper Lid
(VMP00133)
Lid
Dispenser
(1706142)
Blender Fill
Pitcher
General System Overview
The Blended Ice Machine is a self-contained dispensing
unit that allows the operator to make fl avor combinations
of blended ice drinks. It contains product fl avoring in a
reach-in enclosure, a refrigeration system and an ice
shaving machine.
The operator controls and accesses the unit using
a lighted touch screen. Icons on the Drink Selection
screen represent the primary fl avor combinations for
the blended ice drinks. A second screen provides drink
size options (S, M, L) and ingredient options, such as
"no yogurt." Menu changes and additions are uploaded
using a USB mass storage device.
On-screen instructions also include operator procedures
for cleaning/sanitizing, checking inventory, replacing
product bags, selecting drink sizes and manually
preparing drinks. Managers and technicians have
access to menu/software updates, diagnostics and
other service screens.
6
Cup
Dispenser
(1706175)
Touch
Screen
Manual Rinse
Button
Blender Rinse
Location
Whipped
Cream Door
(000-187-0016)
Product
Syrup Rail
Bins
(1706194)
(1706268)
Syrup Rail Divider
(1706195)
Pull Out Tray
(076-CDZ-0000)
Part Description
Cleaning Kit
Cleaning Pitcher
Cup Dispenser
Gasket, Door
Gasket, Whipped Cream Door
Hinge Kit
Ice Hopper Lid
Lid Dispenser
Product Bin
Pull Out Tray
Syrup Rail
Syrup Rail Divider
Whipped Cream Door
Number
000-BIC-0008
3239631
1706175
1706208
1706209
RF000066
VMP00133
1706142
1706268
076-CDZ-0000
1706194
1706195
000-187-0016
