Market Forge Industries STM-EX Owner's Manual

Electric sterilmatic sterilizer
Table of Contents

Advertisement

Alfa Medical
265 Post Ave
Westbury, NY 11590
The attached manual is for your records.
Go to the below web site to look for parts
http://bit.ly/Market-Forge-Sterilmatic-Parts
Your Sterilizer Experts
Manufacturing – Distribution – Maintenance- Guaranteed!
1-800-762-1586
516-280-7822
516-280-7832 fax
www.sterilizers.com
eMail@sterilizers.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STM-EX and is the answer not in the manual?

Questions and answers

Amanda Felske
April 24, 2025

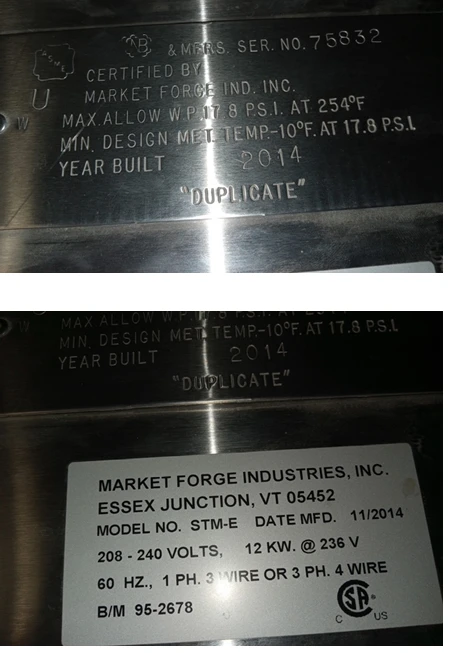

Hi! We have an older unit, manufactured in 2015. Serial number 75832. We are looking for the MDR in order to have it TSSA certified for use. Is there any way to track this down? Thanks! Amanda
