Panasonic CX-DP880U User Manual

Panasonic welcomes you to their constantly growing family of electronic products owners.
E
We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully
N
G
selected components, and assembled by people who are proud of the reputation their work has built for our company.
L
We know this product will bring you many hours of enjoyment, and after you discover the quality, value and reliability
I
we have built into it, you too will be proud to be a member of our family.
S
H
1
Available
Discs
CD CD-R CD-RW CD CD-R CD-RW CD CD CD CD CD-R CD-R CD-R CD-R CD-RW
*CD-DA indicates files recorded on ordinary music CDs.
*A disc with CD-TEXT can be reproduced, but TEXT is not displayed.
Precautions
Volume Level
For your driving safety, keep the volume level low enough to be aware of road and traffic conditions.
Car Washing
To avoid electrical shorts which may cause fire, or other damage, do not expose this product (including the
speakers and CDs) to water or excessive moisture.
Car Ventilation
If your car is parked for several hours in direct sunlight, the temperature inside the car may become very high. It is advis-
able to drive the car and give the interior a chance to cool down before switching the unit on.
Power Supply
This product is designed to be used in a car having a 12-Volt negative ground battery system.
Disc Mechanism
Do not insert coins or any small objects. Keep screwdrivers and other metallic objects away from the disc mechanism and
disc.
Service
This product is made of precision parts. Do not attempt to disassemble or adjust any parts. For repair, please consult your
nearest authorized Panasonic Service Center.

System Configuration

To operate this CD changer, an optional main control unit (listed below) must be connected and purchased separately.
CQ-HX2083U, CQ-HX1083U, CQ-HR1003U, CQ-DFX983U, CQ-DF903U, CQ-DFX883U,
CQ-DF783U, CQ-DFX683U, CQ-DF583U, CQ-DFX403U, CQ-DP383U, CQ-R253U, CQ-RG153U etc.
Note: The units listed above are available as of the period over which this unit is on the market. Regarding units other than
the above, consult the dealer where you purchased this unit
Caution: This product cannot be connected to FM modulator (CY-RM60EUC).
6
CX-DP880U
CD CD-R CD-RW CD CD-R CD-RW CD CD-R CD-RW 12 cm 12 cm 12 cm 12 cm
Non-available
8 cm 8 cm 8 cm MP3 MP3 WMA CD-TEXT MP3 MP3 WMA MP3 WMA CD-TEXT WMA CD-TEXT WMA
CD-RW CD-RW CD-RW 12 cm 12 cm 12 cm 12 cm 12 cm 12 cm 12 cm CD-DA CD-DA CD-DA 12 cm 12 cm CD-DA CD-DA CD-DA 8 cm 8 cm 8 cm 8 cm MP3 WMA CD-TEXT MP3 WMA CD-TEXT MP3 WMA CD-TEXT MP3 WMA CD-TEXT
Accessories
12 cm 12 cm CD-DA CD-DA CD-DA
XXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXX
XXXXXXXXXXXXXXXX
OO-OOOOO
CD-TEXT CD-TEXT
Operating instruction
Supplied Hardware (1 set)
CD Changer Unit
Disc Magazine
Note: Do not use 8 cm CDs.
1 1 1 set
Disc magazine Warranty Card
(a page 13)

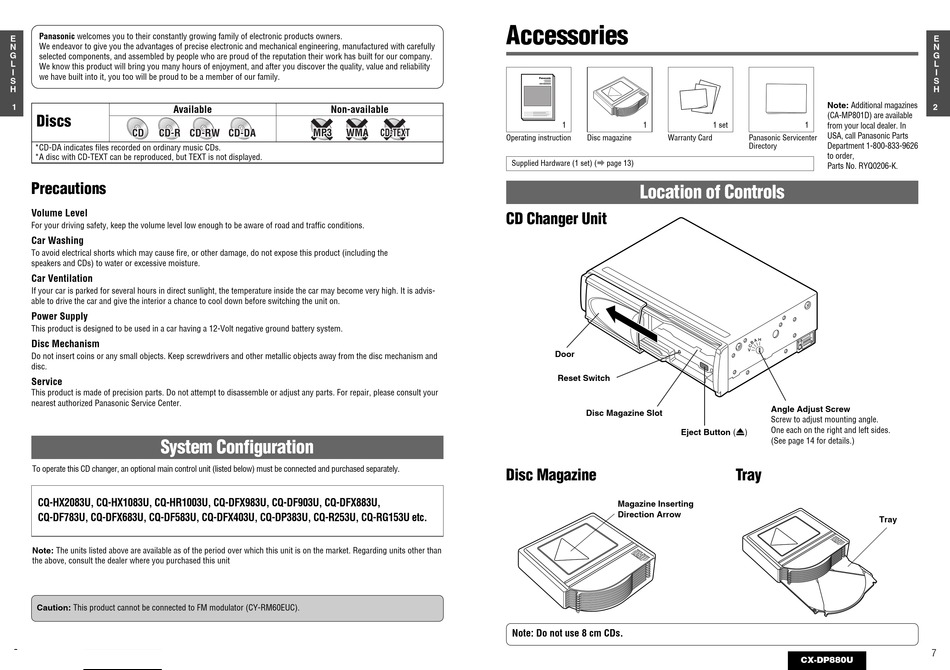

Location of Controls

Door
Reset Switch
Disc Magazine Slot
Eject Button (u)
Magazine Inserting
Direction Arrow
Note: Additional magazines
(CA-MP801D) are available
1 from your local dealer. In
USA, call Panasonic Parts
Panasonic Servicenter
Department 1-800-833-9626
Directory
to order,
Parts No. RYQ0206-K.
H
V
Angle Adjust Screw
Screw to adjust mounting angle.
One each on the right and left sides.
(See page 14 for details.)
Tray
Tray
CX-DP880U
E
N
G
L
I
S
H
2
7
