AUTOMOTIVE ELECTRONICS
AUDI
CX-CA1090L
6-Disc CD Changer
AUDI No. : 8E0 035 111
VEHICLE : A4
DESTINATION : North America / Europe
PRODUCED AFTER : Oct., 2000 (Europe)
Oct., 2001 (North America)
Dimensions** (W×H×D)
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
© 2001 Matsushita Communication Industrial Co.,
Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.
ORDER No. AED0104012
179×52×167mm
1.6kg
I0
Advertisement
Table of Contents
Related Manuals for Panasonic CX-CA1090L
Summary of Contents for Panasonic CX-CA1090L

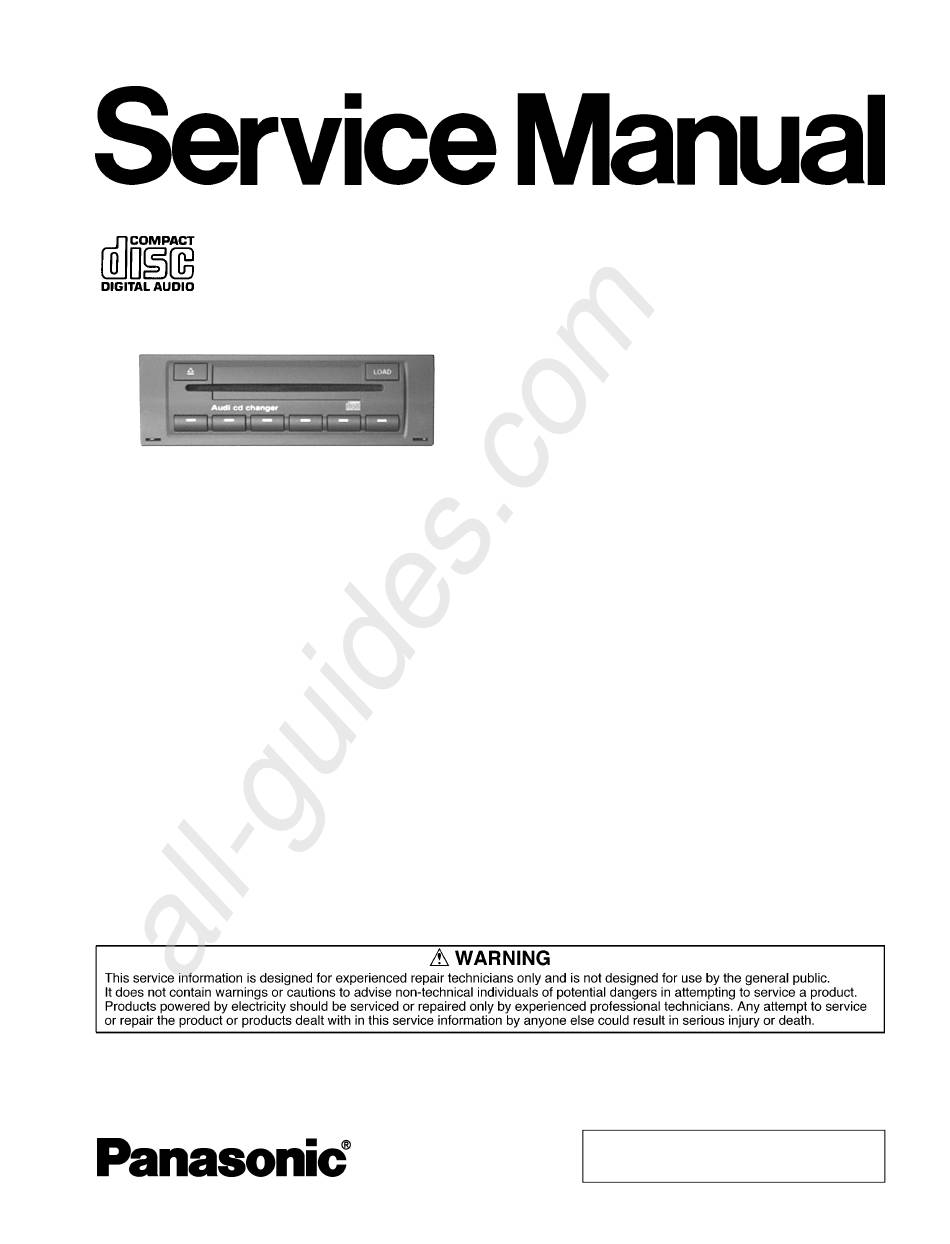

- Page 1 All manuals and user guides at all-guides.com ORDER No. AED0104012 AUTOMOTIVE ELECTRONICS AUDI CX-CA1090L 6-Disc CD Changer AUDI No. : 8E0 035 111 VEHICLE : A4 DESTINATION : North America / Europe PRODUCED AFTER : Oct., 2000 (Europe) Oct., 2001 (North America)
-
Page 2: Table Of Contents
AUDI / CX-CA1090L All manuals and user guides at all-guides.com CONTENTS Page Page 1 FEATUERS 10 REPLACEMENT PARTS LIST 2 LASER PRODUCTS 11 EXPLODED VIEW (Unit) 3 REAR VIEW AND CONNECTOR 12 CD CHANGER PARTS LIST 4 FRONT VIEW AND FUNCTIONS... -
Page 3: Wiring Connection
All manuals and user guides at all-guides.com AUDI / CX-CA1090L 5 WIRING CONNECTION... -
Page 4: Block Diagram
AUDI / CX-CA1090L All manuals and user guides at all-guides.com 6 BLOCK DIAGRAM 6.1. Main, Display Block... - Page 5 All manuals and user guides at all-guides.com AUDI / CX-CA1090L 6.2. CD Servo Block...
-
Page 6: Terminals Description
AUDI / CX-CA1090L All manuals and user guides at all-guides.com 7 TERMINALS DESCRIPTION 7.1. Main Block 7.2. CD Servo Block IC600 : C2BBFE000088 IC201 : MN662783RPW Port Description Port Description Shift clock LED data +5V power supply Data loading clock... - Page 7 All manuals and user guides at all-guides.com AUDI / CX-CA1090L /RST Reset input No connection CSEL (Connecting to ground) I/F command load PMCK Clock output MDATA Data for I/F command SMCK Clock output MCLK Clock for I/F command SUBC Serial data of sub code...
-
Page 8: Package And Ic Block Diagram
AUDI / CX-CA1090L All manuals and user guides at all-guides.com 8 PACKAGE AND IC BLOCK DIAGRAM 8.1. Main Block IC201 : YEAMPC4570T1 IC710 YEAMA61W12ST IC741 : C0DAZHG00001 IC620 : AN8065SE1 IC641 : YEAMC14584BE IC701 : C0ABBA000022... - Page 9 All manuals and user guides at all-guides.com AUDI / CX-CA1090L 8.2. CD Servo Block IC101 : YEAMBA6354BF IC202 : C3ABMB000010 IC601 : YEAMBA5971FP...
- Page 10 AUDI / CX-CA1090L All manuals and user guides at all-guides.com IC603 : YEAMT4W53FUL IC501 : YEAMPC358G2T IC401 : YEAMBA6792FY...
-
Page 11: Cd Disc Centering Alignment
All manuals and user guides at all-guides.com AUDI / CX-CA1090L 9 CD DISC CENTERING ALIGNMENT ∙ This adjustment is for assuring that compact discs will be placed in the center of the turntable. <Adjustment Condition / Jig> ∙ Power Supply Voltage : 13.2V ∙... -
Page 12: Replacement Parts List
AUDI / CX-CA1090L All manuals and user guides at all-guides.com 10 REPLACEMENT PARTS Ref. Part No. Part Name & Description Remarks C342 ECEV1CA100SR Electrolytic, 10µF 16WV LIST C600 ECEV0JA331P Electrolytic, 330µF 6.3WV C602 YECUS1C104KX Ceramic, 0.1µF 16WV Notes : C605 YEECFYH0H223 Electrolytic, 0.022µF 5WV... - Page 13 All manuals and user guides at all-guides.com AUDI / CX-CA1090L Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks Chip, 3.3kΩ Ω Ω Ω 1/10W R746 ERJ6GEYJ332 SW908 YEAS09320 Switch CONNECTORs Mechanical Parts...
-
