Specification*
General
Power Supply
Current Consumption
Dark Current
Maximum Power Output
Signal to Noise Ratio
Channel Separation
Total Harmonic Distortion
CD Player
Signal to Noise Ratio
Channel Separation
DC 12V (11V - 16V),
Test Voltage 14.4V
Negative Ground
0.40 ± 0.15 A
Less than 2.0mA (Illumination
OFF)
1.9±0.2V
More than 90dB
More than 80dB
Less than 0.02%
More than 70dB (IHF-A)
More than 65dB (IHF-A)
AUTOMOTIVE ELECTRONICS
V.W.
CX-DV1070L
CD Player
PART No. : 1J0 035 119B
VEHICLE : UNIVERSAL
DESTINATION : Europe
PRODUCED AFTER : Aug.,2001
Dimensions**
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
© 2001 Matsushita Communication Industrial Co.,
Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.
ORDER No. AED0112007
178(W)×50(H)×160(D)mm
1.3kg

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CX-DV1070L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic CX-DV1070L

Summary of Contents for Panasonic CX-DV1070L

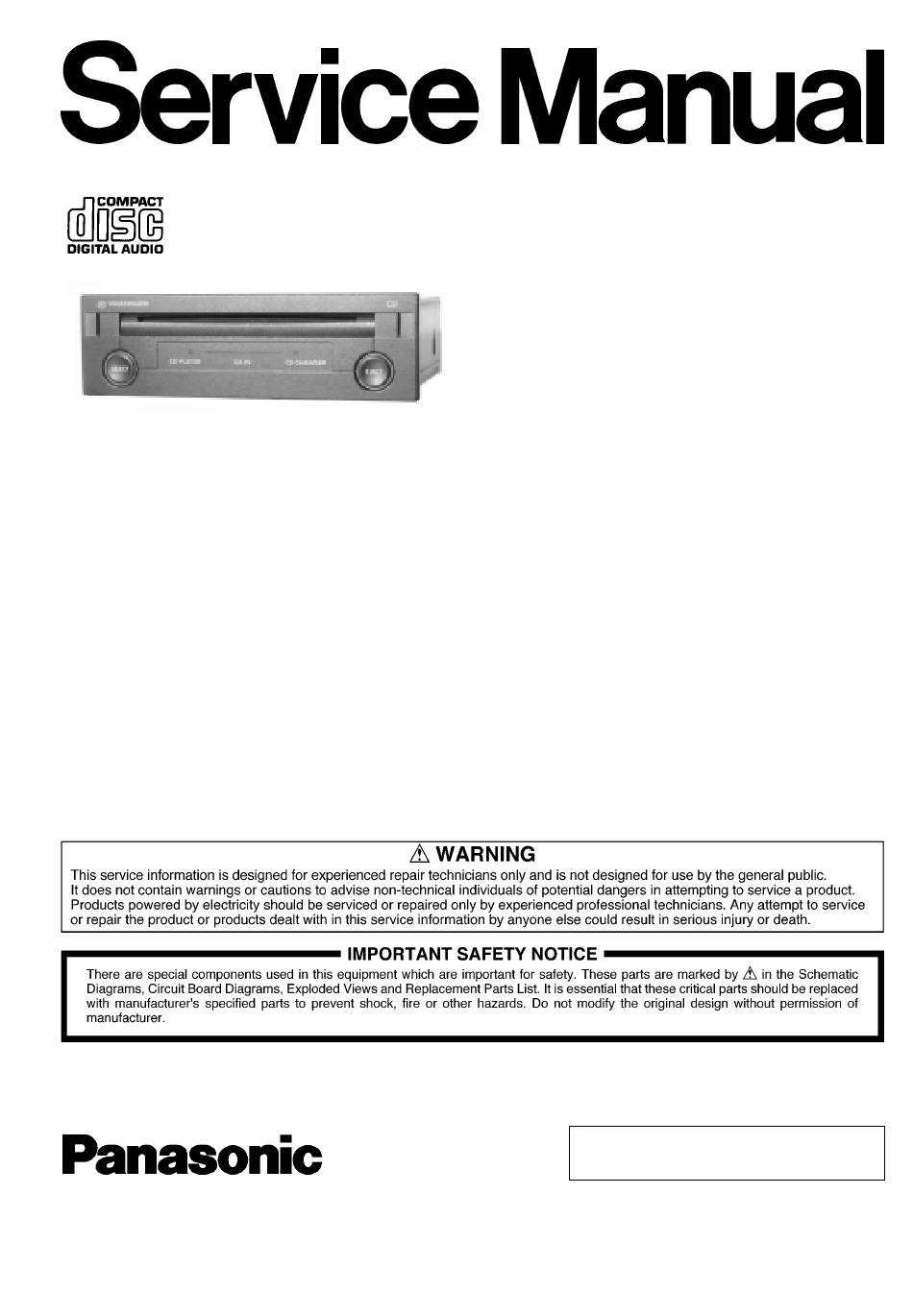

  • Page 1 ORDER No. AED0112007 AUTOMOTIVE ELECTRONICS V.W. CX-DV1070L CD Player PART No. : 1J0 035 119B VEHICLE : UNIVERSAL DESTINATION : Europe PRODUCED AFTER : Aug.,2001 Specification* General Power Supply DC 12V (11V - 16V), Dimensions** 178(W)×50(H)×160(D)mm Test Voltage 14.4V Weight** 1.3kg...
