Panasonic CX-CA1090L Service Manual

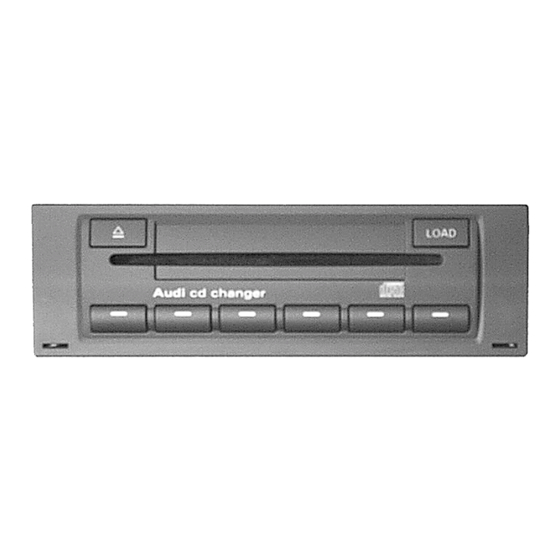

Audi 6-disc cd changer
Hide thumbs Also See for CX-CA1090L:
Table of Contents

Advertisement

Quick Links

Specifications*

General
Power Supply
Current Consumption
Output Voltage
CD Changer
Signal to Noise Ratio
Channel Separation
Total Harmonic Distortion
DC 12V (11V - 16V),
Test Voltage 13.2V
Negative Ground
Less than 1.5A
2.0V (47kΩ//1000pF)
More than 85dB (IHF-A)
More than 65dB (IHF-A)
Less than 0.05% (30kHz/LPF,
400Hz/HPF)
AUTOMOTIVE ELECTRONICS
AUDI
CX-CA1090L
6-Disc CD Changer
AUDI No. : 8E0 035 111
VEHICLE : A4
DESTINATION : North America / Europe
PRODUCED AFTER : Oct., 2000 (Europe)
Oct., 2001 (North America)
Dimensions** (W×H×D)
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
© 2001 Matsushita Communication Industrial Co.,
Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.
ORDER No. AED0104012
179×52×167mm
1.6kg
I0

Advertisement

Table of Contents
loading

Related Manuals for Panasonic CX-CA1090L

Summary of Contents for Panasonic CX-CA1090L

  • Page 1: Specifications

    ORDER No. AED0104012 AUTOMOTIVE ELECTRONICS AUDI CX-CA1090L 6-Disc CD Changer AUDI No. : 8E0 035 111 VEHICLE : A4 DESTINATION : North America / Europe PRODUCED AFTER : Oct., 2000 (Europe) Oct., 2001 (North America) Specifications* General Power Supply DC 12V (11V - 16V), Dimensions** (W×H×D)

  • Page 2: Table Of Contents

    AUDI / CX-CA1090L CONTENTS Page Page 1 FEATUERS 10 REPLACEMENT PARTS LIST 2 LASER PRODUCTS 11 EXPLODED VIEW (Unit) 3 REAR VIEW AND CONNECTOR 12 CD CHANGER PARTS LIST 4 FRONT VIEW AND FUNCTIONS 13 EXPLODED VIEW (CD Deck-1) 5 WIRING CONNECTION...

  • Page 3: Wiring Connection

    AUDI / CX-CA1090L 5 WIRING CONNECTION...

  • Page 4: Block Diagram

    AUDI / CX-CA1090L 6 BLOCK DIAGRAM 6.1. Main, Display Block...
  • Page 5 AUDI / CX-CA1090L 6.2. CD Servo Block...

  • Page 6: Terminals Description

    AUDI / CX-CA1090L 7 TERMINALS DESCRIPTION 7.1. Main Block 7.2. CD Servo Block IC600 : C2BBFE000088 IC201 : MN662783RPW Port Description Port Description Shift clock LED data +5V power supply Data loading clock D-RAM data No connection D-RAM data AVSS...
  • Page 7 AUDI / CX-CA1090L /RST Reset input No connection CSEL (Connecting to ground) I/F command load PMCK Clock output MDATA Data for I/F command SMCK Clock output MCLK Clock for I/F command SUBC Serial data of sub code SPMT Spindle mute...

  • Page 8: Package And Ic Block Diagram

    AUDI / CX-CA1090L 8 PACKAGE AND IC BLOCK DIAGRAM 8.1. Main Block IC201 : YEAMPC4570T1 IC710 YEAMA61W12ST IC741 : C0DAZHG00001 IC620 : AN8065SE1 IC641 : YEAMC14584BE IC701 : C0ABBA000022...
  • Page 9 AUDI / CX-CA1090L 8.2. CD Servo Block IC101 : YEAMBA6354BF IC202 : C3ABMB000010 IC601 : YEAMBA5971FP...
  • Page 10 AUDI / CX-CA1090L IC603 : YEAMT4W53FUL IC501 : YEAMPC358G2T IC401 : YEAMBA6792FY...

  • Page 11: Cd Disc Centering Alignment

    AUDI / CX-CA1090L 9 CD DISC CENTERING ALIGNMENT ∙ This adjustment is for assuring that compact discs will be placed in the center of the turntable. <Adjustment Condition / Jig> ∙ Power Supply Voltage : 13.2V ∙ Test Disc : TCD-784M <Adjustment Procedures>...

  • Page 12: Replacement Parts List

    AUDI / CX-CA1090L 10 REPLACEMENT PARTS Ref. Part No. Part Name & Description Remarks C342 ECEV1CA100SR Electrolytic, 10µF 16WV LIST C600 ECEV0JA331P Electrolytic, 330µF 6.3WV C602 YECUS1C104KX Ceramic, 0.1µF 16WV Notes : C605 YEECFYH0H223 Electrolytic, 0.022µF 5WV C611 YECUS1H103ZF Ceramic, 0.01µF 50WV 1.
  • Page 13 AUDI / CX-CA1090L Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks Chip, 3.3kΩ Ω Ω Ω 1/10W R746 ERJ6GEYJ332 SW908 YEAS09320 Switch CONNECTORs Mechanical Parts YEAES15B040A Connector, 15P MISCELLANEOUS CP601 YEAE5227115 Connector, 15P...

  • Page 14: Exploded View (Unit)

    AUDI / CX-CA1090L 11 EXPLODED VIEW (Unit)

  • Page 15: Cd Changer Parts List

    AUDI / CX-CA1090L 12 CD CHANGER PARTS Ref. Part No. Part Name & Description Remarks C202 YECUS1H123KX Ceramic, 0.012µF 50WV LIST C203 YECUS1C334KX Ceramic, 0.33µF 16WV C204 YECUS1C104KX Ceramic, 0.1µF 16WV 12.1. IC´s and Transistors C205 YECSW1C106MS Tantalum, 10µF 16WV...
  • Page 16 AUDI / CX-CA1090L 12.7. Mechanical parts Ref. Part No. Part Name & Description Remarks Chip, 470Ω Ω Ω Ω 1/10W R317 ERJ6GEYJ471 MISCELLANEOUS Chip, 470Ω Ω Ω Ω 1/10W R318 ERJ6GEYJ471 Ref. Part No. Part Name & Description Remarks Chip, 470Ω Ω Ω Ω 1/10W...
  • Page 17 AUDI / CX-CA1090L Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks YEFX0052335 Guide Spring(F) (2-B) YEJS06097A Screw, 2mm * 2.5mm YEFX0052366 Stocker Thrust Spring (4-E) YEJS06173 Screw (3-F) YEJS06220 Screw YEFX0052368 Damper Spring (R )

  • Page 18: Exploded View (Cd Deck-1)

    AUDI / CX-CA1090L 13 EXPLODED VIEW (CD Deck-1)

  • Page 19: Exploded View (Cd Deck-2)

    AUDI / CX-CA1090L 14 EXPLODED VIEW (CD Deck-2)

  • Page 20: Exploded View (Cd Deck-3)

    AUDI / CX-CA1090L 15 EXPLODED VIEW (CD Deck-3)

  • Page 21: Wiring Diagram

    AUDI / CX-CA1090L 16 WIRING DIAGRAM 16.1. Display Block [E-8837a][Top View] [E-8837a][Bottom View]...
  • Page 22 AUDI / CX-CA1090L 16.2. Main Block [E-8838][Bottom View] [E-8838][Top View]...
  • Page 23 AUDI / CX-CA1090L 16.3. CD Servo Block [E-8586C] [Top Vew] Horizontal Motor [E-8586C] [Bottom View]...
  • Page 24 THIS PAGE IS JUST FOR THE PAGE LAYOUT USE ONLY.

  • Page 25: Schematic Diagram

    AUDI / CX-CA1090L 17 SCHEMATIC DIAGRAM 17.1. Main, Display Block...
  • Page 26 AUDI / CX-CA1090L 17.2. CD Servo Block Printed in Japan (S) 2001.4 (Recycled Paper)
